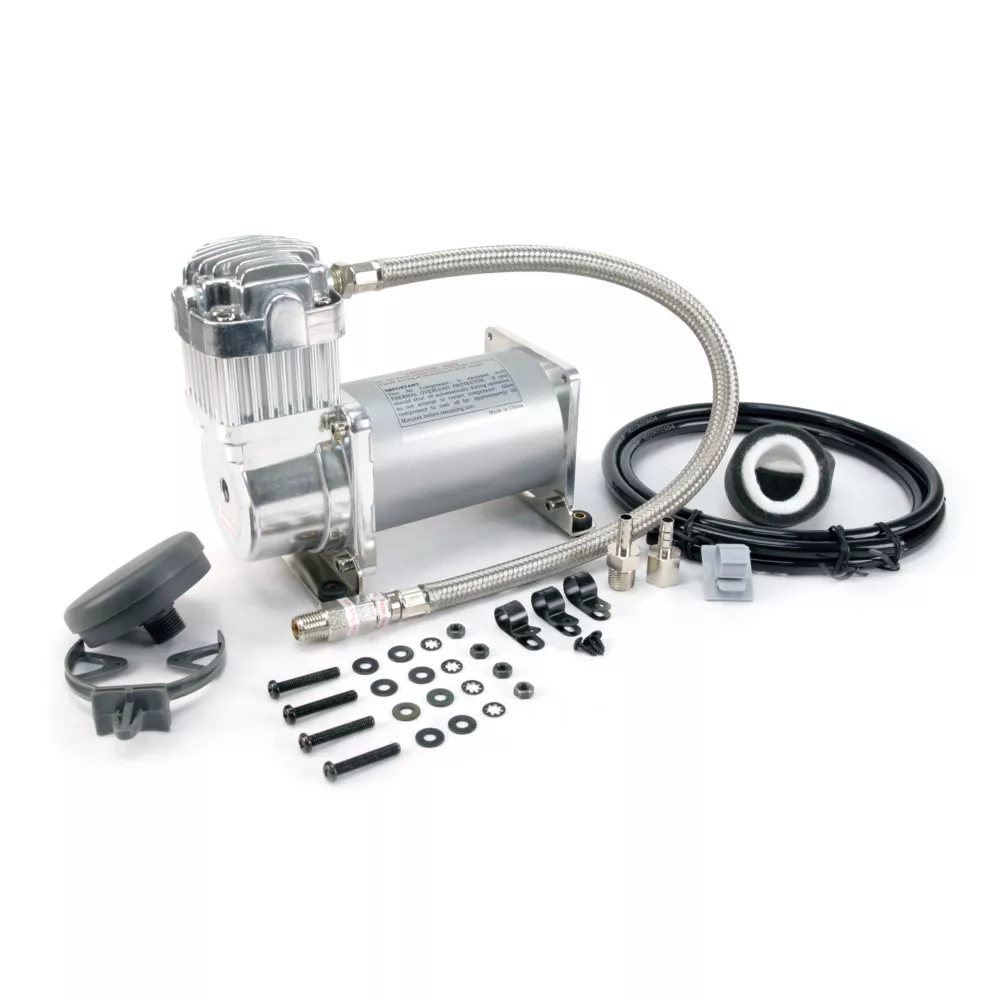

VIAIR 350C Silver Air Compressor Kit 150 PSI 12V Portable Air Compressors Air Compressors

The Viair 350C Silver Compressor Kit works with low amp draw. Features of the compressor kit include a standard 1/4 NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation. The mounting hardware and installation instructions make set-up of the silver compressor kit quick and simple. The compressor kit has an Ingress protection rating of IP67 for long-lasting use.

150 PSI / 1.59 CFM
12-Volt silver compressor kit
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 gal.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Thermal Overload Protector
Silver compressor kit works with low amp draw
Standard 1/4 in. NPT stainless steel braided leather hose included with compressor kit
Insulated wiring in compressor kit for simple installation
Vibration Isolators
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Permanent Magnetic Motor
Max. 12V amp Draw: 20 Amps
Ingress Protection Rating: IP67
Dimensions: 7.4 in. L x 4 in. W x 6.75 in. H
Net Weight: 8.55 lb.

VIAIR 350C Silver Air Compressor Kit 150 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.79 CFM
Airflow Volume	1.52 CFM
Air Outlet Size	1/4 in. NPT
Amperage	20A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Hose Included
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	9 in.
Product Length	12.0 in.
Product Weight	10.0 lb.
Product Width	7 in.
Pump Material	Aluminum
Tank Fill Time	8 min. 5 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	35030

VIAIR 350C Silver Air Compressor Kit, 150 PSI, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.79 CFM Air Flow Volume 1.52 CFM Air Outlet Size 1/4 in. NPT Amperage 20 A Compressor Power 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System None Drive Type DC Features Hose Included Number of power speeds Single Power Type 12 Volts Primary Color No Color Primary Material Aluminum Product Height 9 in. Product Length 12.0 in. Product Weight 10.0 lb. Product Width 7 in. Pump material Aluminum Reservoir filling time 8 min. 5 seconds. Tank Orientation Horizontal Warranty https://www.viaircorp.com/warranty Manufacturer Part Number 35030
