VIAIR 380C Single Chrome Air Compressor Kit 200 PSI 12V Portable Air Compressors Air Compressors

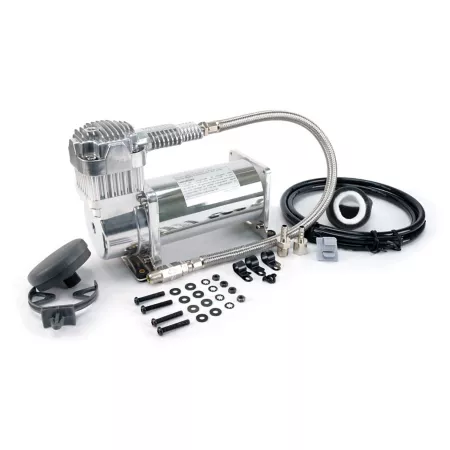

The Viair - 380C 200 PSI Chrome Compressor Kit is a truly-rated continuous duty, 12-volt, 200 PSI compressor. The chrome compressor kit is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 min. consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features of the chrome compressor kit include a standard 1/4 in. stainless steel braided leader hose with 1/4 in. NPT inline check valve and insulated wiring. The included mounting hardware and installation instructions make set-up of the compressor kit simple.

200 PSI / 1.58 CFM
12-volt chrome compressor kit
Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
Max. working pressure of compressor kit: 200 PSI
Max. Air Tank Size: 5.0 gal.
Chrome compressor kit is capable of filling a 5.0 gal. tank from 165 PSI to 200 PSI in 3-1/2 min. consistently while never pulling more than 23 amps of power
1/4 in. stainless steel braided leader hose with 1/4 in. NPT inline check valve
Insulated wiring in the compressor kit for easy installation
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Permanent Magnetic Motor
Max. 12V amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 9 in. L x 4 in. W x 6.75 in. H
Net Weight: 8.75 lb.

VIAIR 380C Single Chrome Air Compressor Kit 200 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.88 CFM
Airflow Volume	1.58 CFM
Air Outlet Size	1/4 in. NPT
Amperage	23A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/380c
Hose Fitting Size	1/4 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	9 in.
Product Weight	8.75 lb.
Product Width	4 in.
Pump Material	Metal
Tank Fill Time	3 min. 39 sec. 165 to 200 PSI
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	38033

VIAIR 380C Chrome Single Air Compressor Kit, 200 PSI, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.88 CFM Air Flow Volume 1.58 CFM Air Outlet Size 1/4 in. NPT Amperage 23 A Compressor Horsepower 0.25 HP Compressor Maximum PSI 200 PSI Compressor Tank Capacity 5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System None Drive Type DC Features https:// www.viaircorp.com/c-models/380c Pipe Fitting Size 1/4" NPT Number of Power Speeds Single Power Type 12 Volt Primary Color No Color Primary Material Aluminum Product Height 6.75". Product length 9 in. Product weight 8.75 lbs. Product width 4 in. Pump material Metal Reservoir filling time 3 min. 39 s. 165 to 200 PSI Tank Orientation Horizontal Warranty https://www.viaircorp.com/warranty Manufacturer Part Number 38033
