VIAIR 400C Silver Air Compressor Kit 150 PSI Portable Air Compressors Air Compressors

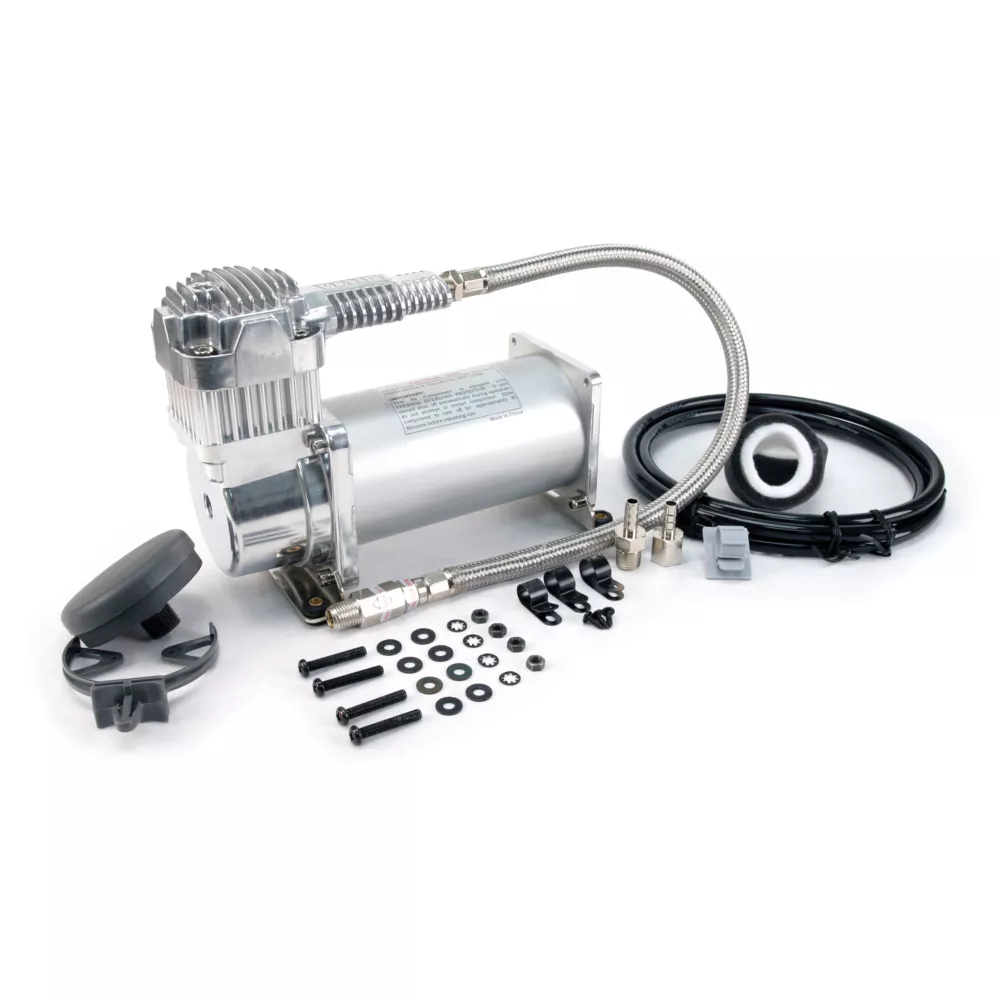

The VIAIR 400C Silver Compressor Kit is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM flow at zero PSI head pressure. Features of the silver compressor kit include a standard 1/4 in. NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. The mounting hardware and installation instructions make set-up of the compressor kit quick and simple. The compressor kit has an Ingress protection rating of IP67 for long-lasting use. There are 2 replacement air filter elements and instructions included.

150 PSI / 2.62 CFM flow at zero PSI head pressure
12V silver compressor kit
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 gal.
Note: Use thread sealant for proper installation; thread tape is not recommended; properly sealed, recommended torque is 12 to 15 ft. lb.
Thermal overload protector
Net Weight: 8.65 lb.
Standard 1/4 in. NPT stainless steel braided leather hose included with compressor kit
Insulated wiring in compressor kit for simple installation
Vibration isolators
Mounting hardware included with silver compressor kit allows for easy installation
Air line for remote mount air filter
Remote mount air filter assembly
2 replacement air filter elements
Installation instructions
Permanent magnetic motor
Max. 12V amp Draw: 28A
Ingress Protection Rating: IP67
Dimensions: 9 in. L x 4 in. W x 6.75 in. H

VIAIR 400C Silver Air Compressor Kit 150 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Airflow Volume	2.62 CFM
Air Outlet Size	1/4 in. NPT
Amperage	28A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Hose Included
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Product Height	9 in.
Product Length	12.0 in.
Product Weight	10.0 lb.
Product Width	7 in.
Pump Material	Aluminum
Tank Fill Time	5 minutes
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	40040

VIAIR 400C Silver Air Compressor Kit, 150 PSI Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow Volume 2.62 CFM Air Outlet Size 1/4 in. NPT Amperage 28 A Compressor Power 0.25 HP Maximum Compressor PSI 150 PSI Compressor Tank Capacity 5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drainage System None Drive Type DC Features Hose Included Number of Power Speeds Single Power Type 12 Volts Primary Color No Color Product Height 9 in. Product Length 12.0 in. Product Weight 10.0 lb. Product Width 7 in. Pump Material Reservoir Fill in aluminum Time 5 minutes Tank orientation horizontal Warranty 1 year Manufacturer part number 40040
