VIAIR 460C Chrome Air Compressor Kit with 3/8 Port 150 PSI 12V Portable Air Compressors Air Compressors

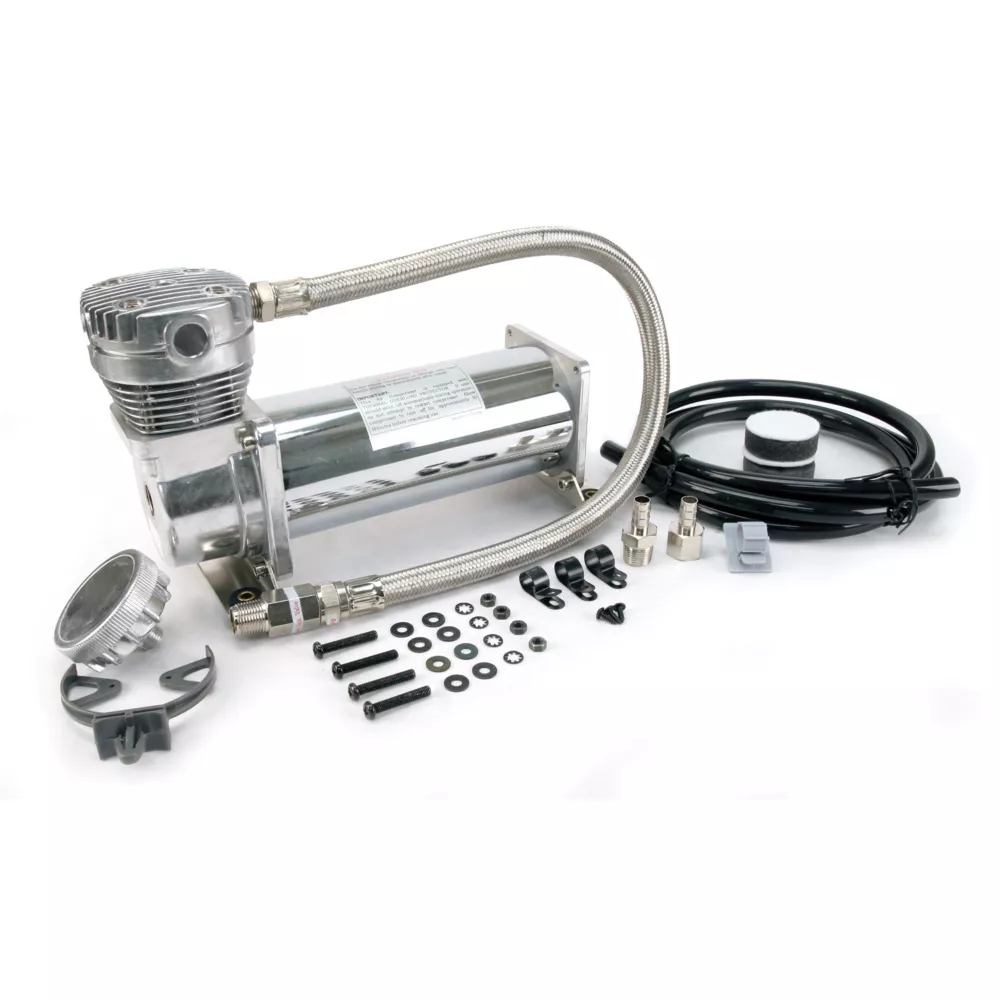

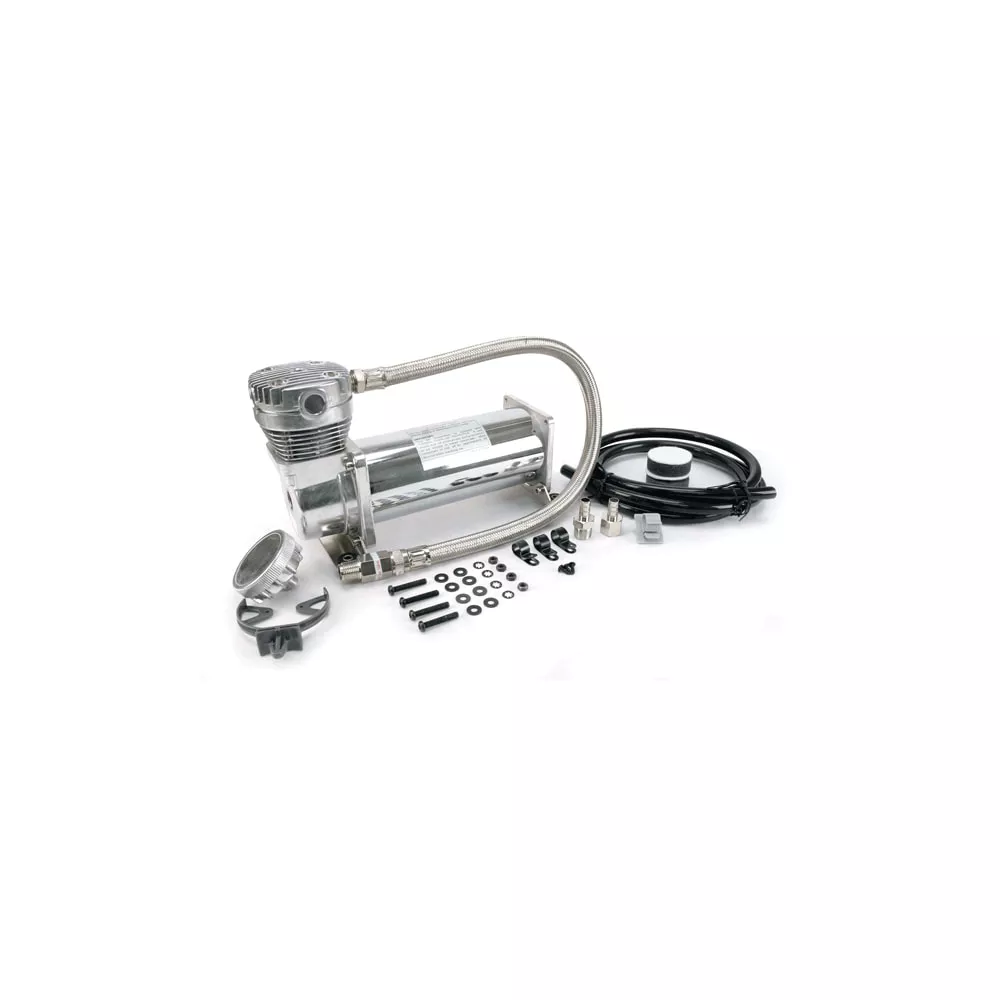

Viair - 460C Chrome Compressor Kit with 3/8 Port features include horizontal cooling fins and a trapezoidal head design. The compressor kit has a standard 3/8 in. NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. The mounting hardware and installation instructions make set-up of the chrome compressor kit easy. The maximum working pressure of the compressor kit is 150 PSI.

150 PSI / 1.80 CFM
12-volt chrome compressor kit
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 gal.
Chrome compressor kit has horizontal cooling fins and a trapezoidal head design
Standard 3/8 in. NPT stainless steel braided leader hose with inline check valve included in compressor kit
Insulated wiring in compressor kit for simple installation
Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Permanent Magnetic Motor
Max. 12V amp Draw: 24 Amps
Ingress Protection Rating: IP67
Dimensions: 11.5 in. L x 4.3 in. W x 6.5 in. H
Net Weight: 11.10 lb.

VIAIR 460C Chrome Air Compressor Kit with 3/8 Port 150 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.97 CFM
Airflow Volume	1.80 CFM
Air Outlet Size	3/4 in. NPT
Amperage	24A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/460c
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.5 in.
Product Length	11.5 in.
Product Weight	11.10 lb.
Product Width	4.3 in.
Pump Material	Metal
Tank Fill Time	6.5 min.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	46043

VIAIR 460C Chrome Air Compressor Kit with 3/8 Port, 150 PSI, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.97 CFM Air Flow Volume 1.80 CFM Air Outlet Size 3/4 in. NPT Amperage 24 A Wattage Compressor Rating 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 5 gal Compressor Type Oil-Free Compressor Voltage 12V Cord Length 1 ft. Drain System None Drive Type DC Features https://www.viaircorp.com /c-models/460c Number of Power Speeds Single Power Type 12 Volts Primary Color No Color Primary Material Aluminum Product Height 6.5 in. Product length 11.5 in. Product weight 11.10 lbs. Product width 4.3 in. Pump material Metal Reservoir filling time 6.5 min. Tank Orientation Horizontal Warranty https://www.viaircorp.com/warranty Manufacturer Part Number 46043
