VIAIR 480C Single Chrome Air Compressor Kit 200 PSI 12V Portable Air Compressors Air Compressors

The Viair - 480C 200 PSI Chrome Compressor Kit with 3/8 in. Port includes a 200 PSI-rated compressor. The chrome compressor kit features horizontal cooling fins and a trapezoidal head design. A standard 3/8 in. stainless steel braided leader hose with 3/8 in. NPT inline check valve and insulated wiring are included in the compressor kit. The maximum working pressure of the compressor kit is 200 PSI.

200 PSI / 1.86 CFM rating
12-volt chrome compressor kit
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 5.0 gal.
Max. 12V Amp Draw: 23 Amps
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Thermal Overload Protector
Check Valve
Vibration Isolators

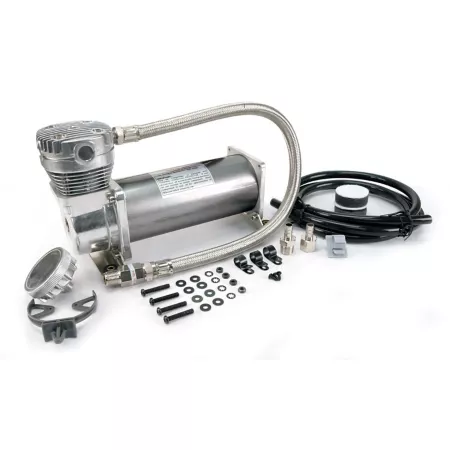

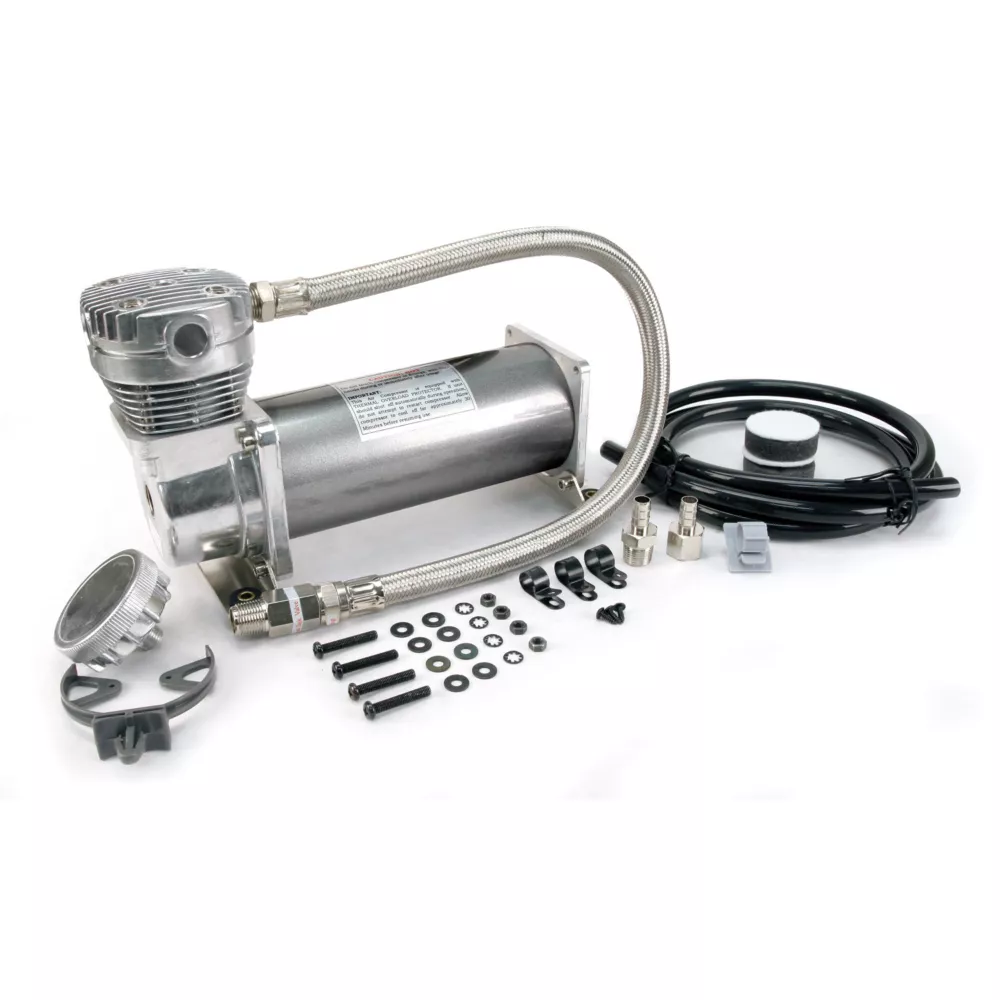

Mounting hardware included in chrome compressor kit for easy installation
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Permanent Magnetic Motor
Ingress Protection Rating: IP67
Dimensions of compressor kit: 10.87 in. L x 4.2 in. W x 6.75 in. H
Net Weight: 11.05 lb.
Compressor kit has horizontal cooling fins and a trapezoidal head design

VIAIR 480C Single Chrome Air Compressor Kit 200 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.13 CFM
Airflow Volume	1.86 CFM
Air Outlet Size	3/4 in. NPT
Amperage	23A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/480c
Hose Fitting Size	3/8 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	10.87 in.
Product Weight	11.05 lb.
Product Width	4.2 in.
Pump Material	Aluminum
Tank Fill Time	10 min. 30 sec.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	48043
