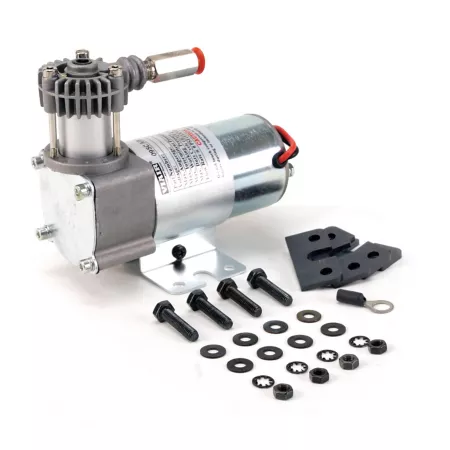

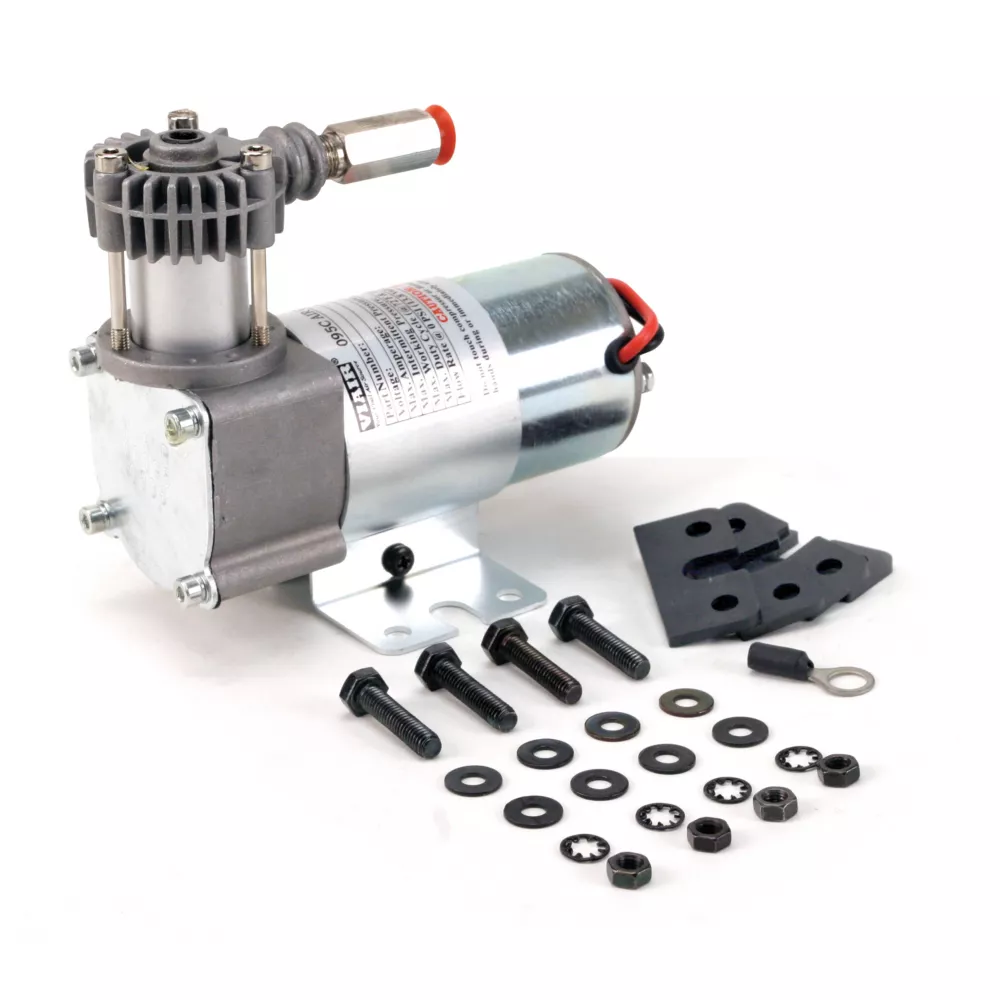

VIAIR 95C Compressor Kit 24 V 120 PSI Portable Air Compressors Air Compressors

The Viair 0Check Valve Omega Bracket 95C Compressor Kit offers a light duty solution for smaller air requirements and is meant to fill no larger than a 1.0 gal. air tank. Multiple duty cycle, mounting, compressor finish and intake options are available depending on the model of compressor kit. The omega bracket compressor kit has a maximum working pressure of 120 PSI. The duty cycle of the 95C compressor kit operates at 9% at 100 PSI.

120 PSI / 1.03 cfm rating
24 volt Compressor Kit
Duty Cycle: 9% @ 100 PSI
Max. Working Pressure of omega bracket compressor kit: 120 PSI
Max. Air Tank Size of 95C compressor kit: 1.0 gal.
Compressor kit is meant to fill no larger than a 1.0 gal. air tank

VIAIR 95C Compressor Kit 24 V 120 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.43 CFM
Airflow Volume	1.03 CFM
Air Outlet Size	1/8 in.
Amperage	5.0A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	120 PSI
Compressor Tank Capacity	1 gal
Compressor Type	Oil less
Compressor Voltage	24V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Oil Free Compressor
Hose Fitting Size	1/8 in. NPT
Phase	Single
Number Of Power Speeds	Single
Power Type	Battery
Primary Color	No Color
Primary Material	Aluminum
Product Height	7.0 in.
Product Length	9 in.
Product Weight	3 lb.
Product Width	4.0 in.
Pump Material	Aluminum
Tank Fill Time	2 min. 40 sec.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	2495

VIAIR 95C Compressor Kit, 24V, 120PSI Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.43 CFM Air Flow Volume 1.03 CFM Air Outlet Size 1/8 in. Amperage 5.0 A Compressor Power 0.25 HP Compressor Maximum PSI 120 PSI Compressor Tank Capacity 1 gal Compressor Type Oil-Free Compressor Voltage 24 V Cord Length 1 ft. Drain System None Drive Type DC Features Fitting Size 1/8 in. NPT Oil-Free Compressor Hose Nozzle Phase Single Number of Power Speeds Single Power Type Battery Primary Color No Color Primary Material Aluminum Product Height 7.0 Product Length 9 in. Product weight 3 lbs. Product width 4.0 in. Pump material Aluminum Reservoir filling time 2 min. 40 seconds. Tank Orientation 1 Year Horizontal Warranty Manufacturer Part Number 2495
