VIAIR Dual Chrome 400C Value Pack Air Compressor 150 PSI CE Portable Air Compressors Air Compressors

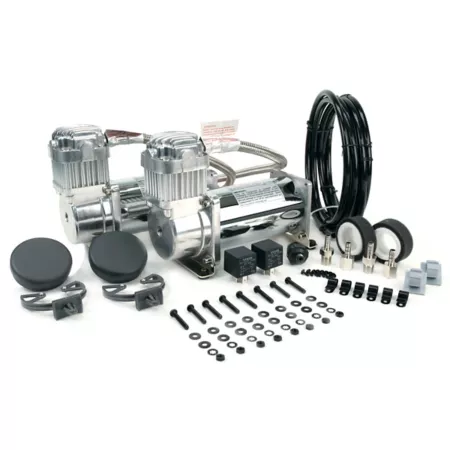

The Viair Dual Chrome 400C Value Pack is our fastest filling, highest CFM air compressor system, This value pack is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit. The dual chrome 400c value pack includes two 12-volt chrome VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each dual chrome 400c value pack comes with remote mount filter assemblies and mounting hardware.

150 PSI / 4.55 CFM rated, Combined flow rate
12-volt dual chrome 400c value pack
Duty Cycle: 33% @ 100 PSI
Two 400c Chrome Compressors with Thermal Overload Protectors
Max. working pressure of value pack: 150 PSI
Max. air tank size of value pack: 10.0 gal.
Note: Use thread sealant
Two Air Filter Assemblies
Two Remote Mount Brackets
Two Sets of Remote Mount Fittings
Two Sets of Spare Air Filter Elements
Two Leader Hose Clips
Six Air Line Clips with Included Hardware
Eight Sets of Nuts, Bolts, Washers and Lock Washers
Two 40-Amp Relays
One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
Two Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line for remote mount filter installation
Combined max. amp draw of dual chrome 400c value pack: 60 Amps
Ingress Protection Rating: IP67
Dimensions: 9 in. L x 4 in. W x 6.75 in. H
Net Weight: 17.3 lb.

VIAIR Dual Chrome 400C Value Pack Air Compressor 150 PSI CE Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	2.46 CFM
Airflow Volume	4.55 CFM (Combined flow rate)
Air Outlet Size	1/4 in. NPT
Amperage	60A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	10 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Decibel Rating	75 dB
Drain System	None
Drive Type	DC
Features	Includes two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware
Phase	Single
Number Of Power Speeds	Double
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	10.0 in.
Product Length	14 in.
Product Weight	20.0 lb.
Product Width	12 in.
Pump Material	Metal
Stage Type	Single-Stage
Tank Fill Time	2 min. 30 sec.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	40013

VIAIR Dual Chrome 400C Air Compressor Value Pack, 150 PSI, CE Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 2.46 CFM Air Flow Volume 4.55 CFM (Combined Flow) Air Outlet Size 1/4" . NPT Amperage 60 A Compressor Power 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 10 gal Compressor Type Compressor Voltage Oil-Free 12 V Cord Length 1 ft. Decibel Rating 75 dB Drain System None DC Drive Type Features Includes two heavy-duty 40 Amp relays and a 110 PSI and 145 PSI cut-off pressure switch. . Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware Phase Single Number of Power Speeds Dual Number of Wheels 0 Power Type 12 Volt Primary Color No Color Primary Material Aluminum Product Height 10.0 in. Product length 14 in. Product Weight 20.0 lbs Product Widtht 12 in. Pump material Stage type metal Single stage tank filling time 2 min. 30 seconds. Tank Orientation 1 Year Horizontal Warranty Manufacturer Part Number 40013
