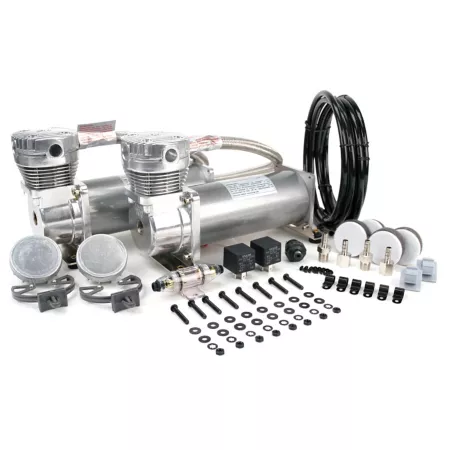

VIAIR Dual Pewter 480C Air Compressor pk Value 12V 200 PSI Portable Air Compressors Air Compressors

Providing 200PSI and a 100% duty cycle, the Viair Dual Pewter 480C Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each value pack includes two Viair 480C pewter air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware. The 100% duty cycle of the dual pewter 480C value pack operates at 100 PSI. The value pack has a combined maximum amp draw of 44 amps.

200 PSI / 3.53 CFM rating
12-volt dual pewter 480C value pack
Duty Cycle: 100% @ 100 PSI
Two pewter 480C air compressors with thermal overload protectors included in the value pack
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 gal.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Two Air Filter Assemblies
Two Remote Mount Brackets
Two Sets of Remote Mount Fittings
Two Sets of Spare Air Filter Elements
Two Leader Hose Clips
Six Air Line Clips with Included Hardware
Eight Sets of Nuts, Bolts, Washers and Lock Washers
One Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
Two 40-Amp Relays
One Heavy Duty Pressure Switch (165 PSI on/200 PSI off)
Two Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line for Remote Mount Filter Installation
Permanent Magnetic Motor
Combined max. amp draw of dual pewter 480C value pack: 44 Amps
Ingress Protection Rating: IP67
Dimensions of each unit in value pack: 10.87 in. L x 4.2 in. W x 6.75 in. H
Net Weight: 22.10 lb.

VIAIR Dual Pewter 480C Air Compressor pk Value 12V 200 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	2.12 CFM
Airflow Volume	3.53 CFM (Combined flow rate)
Air Outlet Size	0.375 in. NPT
Amperage	44A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	10 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	Direct
Features	Includes 2 x 40Amp relays and a pressure switch
Hose Fitting Size	3/8 in. NPT
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminized steel
Product Height	10.0 in.
Product Length	14 in.
Product Weight	26.0 lb.
Product Width	14 in.
Pump Material	Metal
Tank Fill Time	10 min. 30 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	48012

VIAIR Dual Pewter 480C Air Compressor Value pk., 12V, 200PSI Specifications Expand/Collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 2.12 CFM Air Flow Volume 3.53 CFM (Combined Flow) Air Outlet Size 0.375 in. NPT Amperage 44 Amp Compressor Power 0.25 HP Compressor Maximum PSI 200 PSI Compressor Tank Capacity 10 Gallon Compressor Type Oil-Free Compressor Voltage 12V Cord Length 1' Drain System None Direct Drive Type Features Includes 2 x 40 Amp relays and one pressure switch Hose connection size 3/8 in. NPT Number of power speeds Single number of wheels 0 Power type 12 volts Primary color No color Primary material Aluminized steel Product height 10.0 in. Product length 14 in. Product weight 26.0 lbs. Product width 14 in. Pump material Metal Reservoir filling time 10 min. 30 seconds. Tank orientation Horizontal guarantee Https://www.viaircorp.com/warranty Manufacturer Part Number 48012
