VIAIR Dual Platinum 485C on-board air system Portable Air Compressors Air Compressors

The VIAIR Dual Platinum 485C Onboard Air System is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: 2 Platinum 485C compressors, a 2.5 gal. air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system. The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

100% duty cycle @ 200 PSI, no rest time needed
200 PSI maximum working pressure
Dual compressors for high flow and quick refill rate
3.82 CFM at 0 PSI

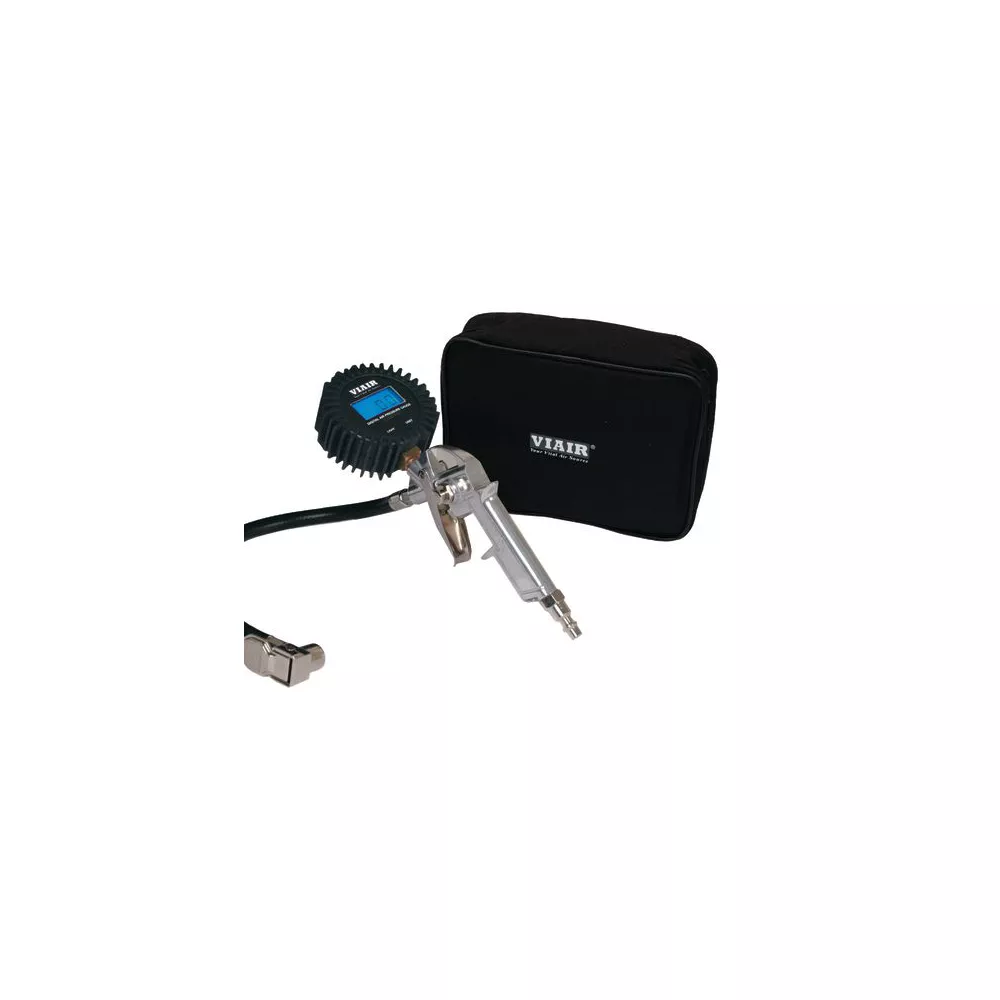

Digital tire inflation gun for easy readability

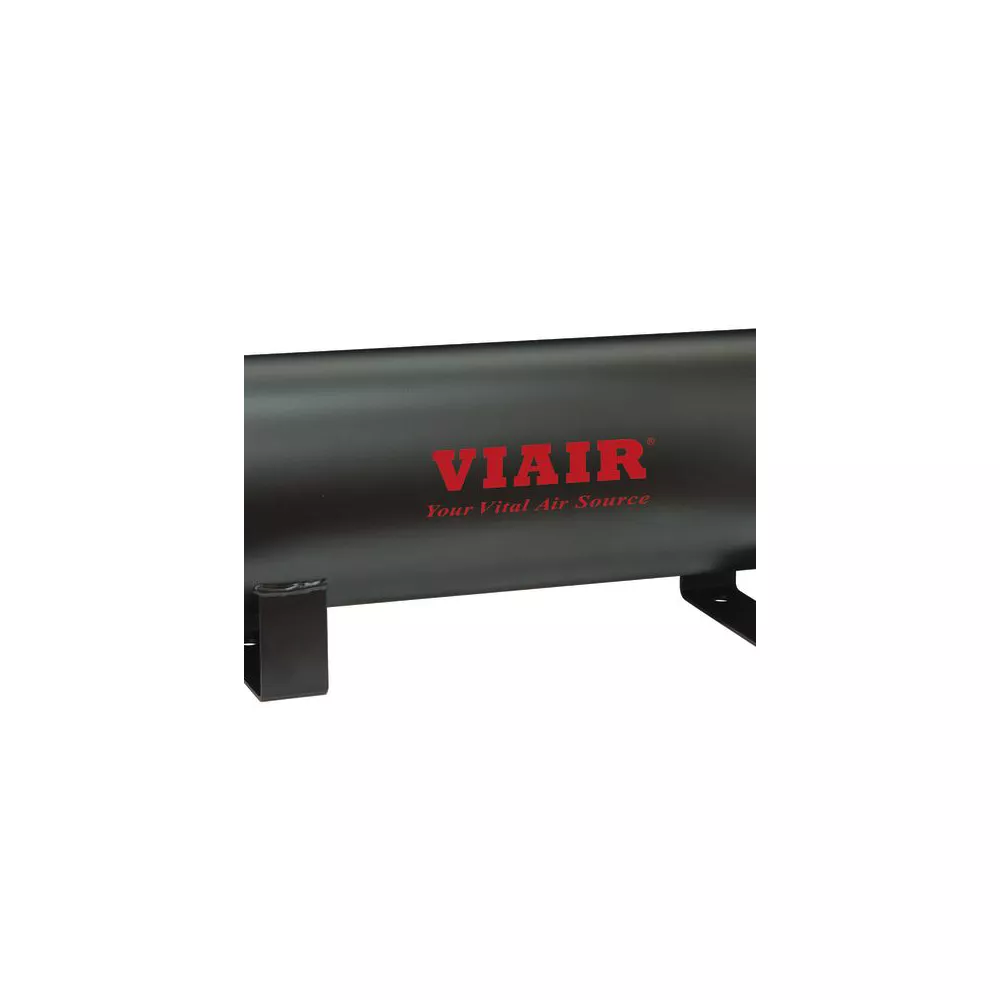

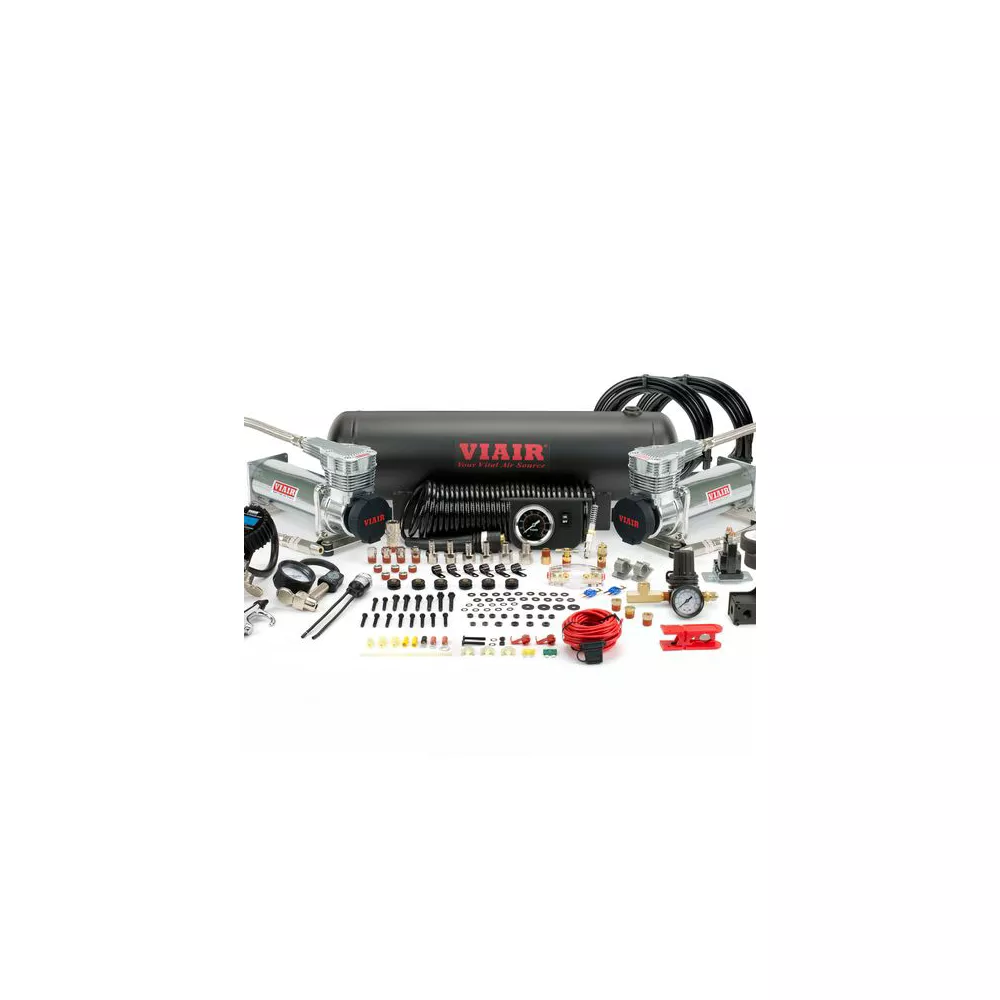

Includes: 2 Platinum 485C compressors, a 2.5 gal. air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system

VIAIR Dual Platinum 485C on-board air system Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	2.9 CFM
Air Delivery SCFM At 90 PSI	2.24 CFM
Airflow Volume	3.82 CFM
Air Outlet Size	0.375 in. NPT
Amperage	46 Amps
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Decibel Rating	74 dB
Drain System	Petcock
Drive Type	Direct Drive
Features	100% Duty Cycle @ 200 PSI
Number Of Power Speeds	Single
Power Type	12 Volt, 12V
Primary Color	Gray
Primary Material	Steel
Product Height	6.44 in. each unit
Product Length	10.63 in. each unit
Product Weight	22.1 lb.
Product Width	4.1 in. each unit
Pump Material	Steel
Stage Type	Single-Stage
Tank Fill Time	2 min. 20 sec.
Tank Orientation	Horizontal
Warranty	1 year manufacture Defect
Manufacturer PartNumber	20085
