VIAIR Heavy Duty ADA Basic Model Kit with 85/105 PSI Pressure Switch Portable Air Compressors Air Compressors

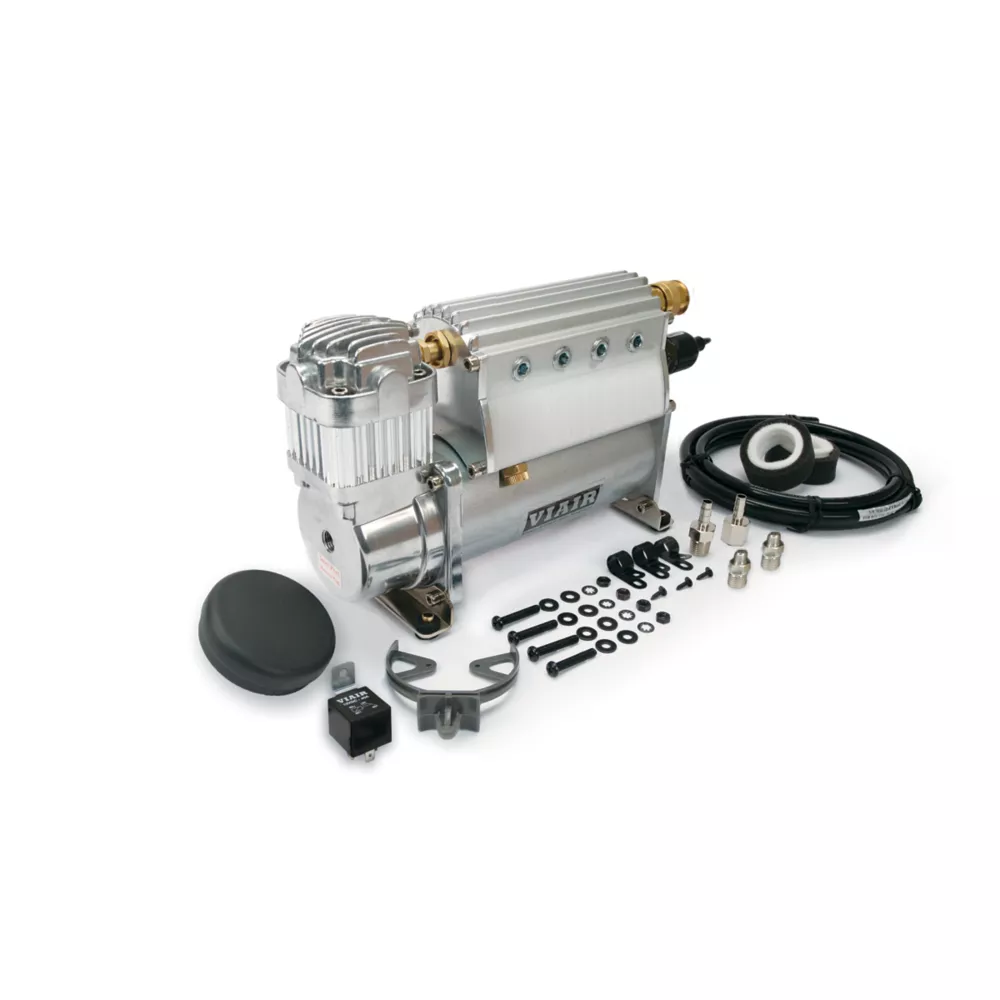

VIAIR Corporation is proud to offer our new Viair Heavy Duty ADA Base Model Kit with 85/105 PSI Pressure Switch as a base model kit, delivering incredible performance in a compact space. The ADA base model kit incorporates a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 400C (Heavy Duty) compressor at its core. The ADA base model kit includes a pre-installed safety valve and quick connect coupler. The mounting hardware allows for easy installation of the ADA base model kit.

150 PSI / 2.62 CFM rated
12-volt heavy duty ADA base model kit
85/105 PSI pressure switch pre-installed with the ADA base model kit
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 28 Amps
400C compressor with thermal overload protector used as the core of the ADA base model kit
ADA base model kit incorporates a 12-port extruded aluminum air tank as a compact air locker
Pre-Installed Safety Valve
Pre-Installed 1/8 in. NPT Drain Cock
Eight Pre-Installed 1/4 in. NPT Recessed Port Plugs
Pre-Installed Quick Connect Coupler
40-Amp Relay
Two 1/4 in. NPT to 1/8 in. BSP Adapters
1 in. NPT M Barbed Fitting for 1/4 in. Air Line
1 in. NPT F Barbed Fitting for 1/4 in. Air line
Coiled Air Line for Remote Mount Air Filter Installation
Air Filter Housing
Two Replacement Air Filter Elements
Mounting Hardware
Permanent Magnetic Motor
Ingress Protection Rating: IP67
Dimensions: 9.38 in. L x 4 in. W x 6.75 in. H
Net Weight: 12.5 lb.

VIAIR Heavy Duty ADA Basic Model Kit with 85/105 PSI Pressure Switch Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.52 CFM
Airflow Volume	2.62 CFM
Air Outlet Size	1/4 in. NPT
Amperage	28A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	0.25 gal
Compressor Type	Oil less
Compressor Voltage	12V
Connection Type	Coupler
Cord Length	1 ft.
Drain System	Yes
Drive Type	DC
Features	Air Locker Compatible
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	9 in.
Product Weight	10 lb.
Product Width	4 in.
Pump Material	Aluminum
Stage Type	Single-Stage
Tank Fill Time	10 seconds
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	42045

VIAIR Heavy-Duty ADA Base Model Kit with 85/105 PSI Pressure Switch Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 1.52 CFM Air Flow Volume 2.62 CFM Air Outlet Size 1/4 in. NPT Amperage 28 A Wattage Compressor Capacity 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 0.25 gal Compressor Type Oil-Free Compressor Voltage 12V Connection Type Coupler Cord Length 1 ft. Drainage System Yes Drive Type DC Features Air Locker Compatible Phase Unique Number of Power Gears Unique Number of Wheels 0 Power Type 12 Volts Primary Color No Color Primary Material Aluminum Product Height 6.75" Product Length 9 in. Product weight 10 lbs. Product width 4 in. Pump Material Aluminum Stage Type Single Stage Reservoir Fill Time 10 seconds Reservoir Orientation Horizontal Warranty 1 Year Manufacturer Part Number 42045.
