VIAIR Onboard Air Connection Kit with Switch 85 PSI/105 30A Air Hose Fittings Air Compressor Accessories & Parts

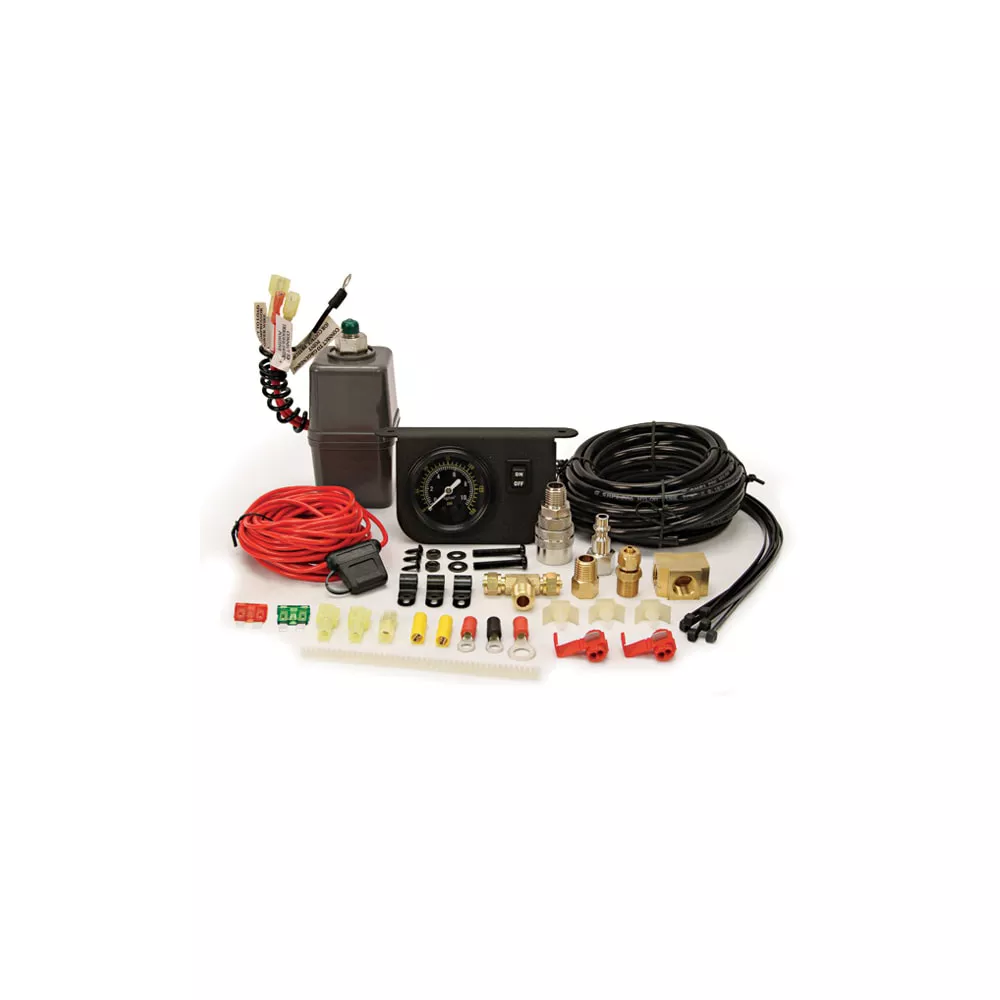

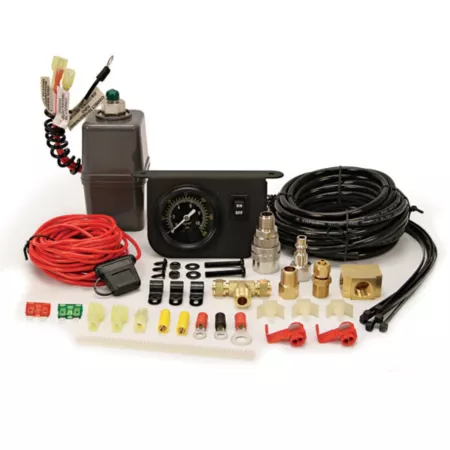

Custom designed to work with VIAIR Compressors, this Viair 30 Amp Onboard Air Hookup Kit with 85 PSI/105 Switch includes a Pressure Switch with Built-in Relay and an illuminated dash panel gauge with built-in ON/OFF switch. The hookup kit also comes with 20 ft. of positive extension wire and 20 ft. of air delivery line tubing. Every other part you will need to hook up to an air tank for a multi-purpose onboard air system is included in the hookup kit. All compression fittings in the onboard air hookup kit are for a 1/8 in. O.D. air line.

85 PSI ON/105 PSI OFF Switch
Hookup kit includes one Illuminated Dash Panel Gauge
Onboard air hookup kit comes with 20 ft. of 1/4 O.D. Air Line Tubing
One Pressure Switch with Built-In Relay included in the hookup kit
One 20 ft. Lead Wire with Inline Fuse
One 1/4 (F) NPT Tee Fitting
One 1/4 to 1/8 NPT Reducer
One 1/4 Quick Connect Coupler
One 1/4 (F) NPT Quick Connect Stud
One 1/4 (M) NPT Compression Fitting
One 1/4 (M) NPT Compression Tee Fitting
Three Insulated (F) Terminal Connectors
Two Insulated (M) Terminal Connectors
Two Quick Splice Connectors
Three Ring Terminals
Six Cable Ties
Three Cable Tie Brackets
Three Air Line Clips
One Continuous Grommet
Two Mounting Screws, Washers, Nuts
All compression fittings in the onboard air hookup kit are for 1/8 in. O.D. air line

VIAIR Onboard Air Connection Kit with Switch 85 PSI/105 30A Air Hose Fittings Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Hose Fittings

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Compatibility	Universal
Connector 1 Size	18 in.
Connector 1 Type	NPT
Connector 2 Size	18 in.
Connector 2 Type	Compression fitting
Maximum Operating Pressure	105 PSI
Package Quantity	1
Primary Material	Metal
Product Height	6 in.
Product Length	8.25 in.
Product Weight	2.92 lb.
Product Width	6 in.
Warranty	Warranty
Manufacturer PartNumber	20053
