VIAIR Ultra Lightweight Onboard Air System 105 PSI Portable Air Compressors Air Compressors

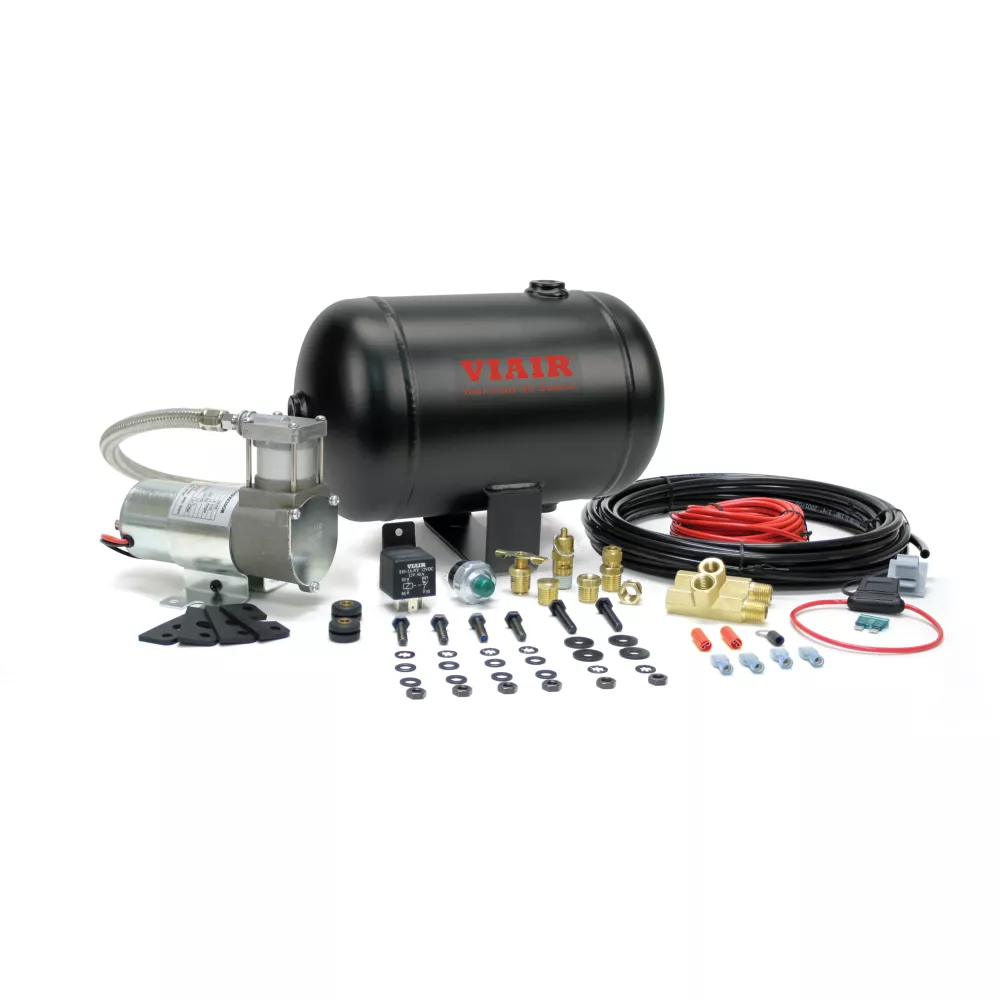

The Viair Ultra-Light Duty Onboard Air System can be used to pressurize the included 1.0 gal. air tank for air horn use, air lockers, and a host of other light duty pneumatic needs. While not intended for tire inflation, this onboard air system provides a reliable air source in a smaller volume, and a cost effective package. The Omega Bracket with mounting hardware allows for easy installation of the ultra-light duty onboard air system. The maximum working pressure of the onboard air system is 105 PSI.

Max working pressure of onboard air system: 105 psi / 1.53 cfm
12 volt ultra-light duty onboard air system
Duty Cycle: 10% @ 100 PSI
98C VIAIR Air Compressor
1.0 gal. VIAIR Air Tank
Omega Bracket with mounting hardware
Pressure switch (85 PSI on, 105 PSI off)
40 amp relay
145 PSI Safety Valve
1/4 in. Compression Fitting
1/4 in. Plug (M)
20 ft. 16-gauge wire with inline fuse holder
Ultra-light duty onboard air system has a permanent magnetic motor
Max amp draw of onboard air system: 12 amps
Ingress protection rating: IP54
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lb. Recommended torque for 1/4 and 3/8 is 12 ~ 15 ft. lb.

VIAIR Ultra Lightweight Onboard Air System 105 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.54 CFM
Airflow Volume	1.53 CFM
Air Outlet Size	1/4 in. NPT
Amperage	12A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	120 PSI
Compressor Tank Capacity	1 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	Included
Drive Type	DC
Features	None
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Metal
Product Height	10.0 in.
Product Length	13.0 in.
Product Weight	13.0 lb.
Product Width	12 in.
Pump Material	Steel
Stage Type	Single-Stage
Tank Fill Time	1minutes 40 seconds
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	10000
