VIAIR Universal Mount Heavy Duty ADA System 150 PSI Portable Air Compressors Air Compressors

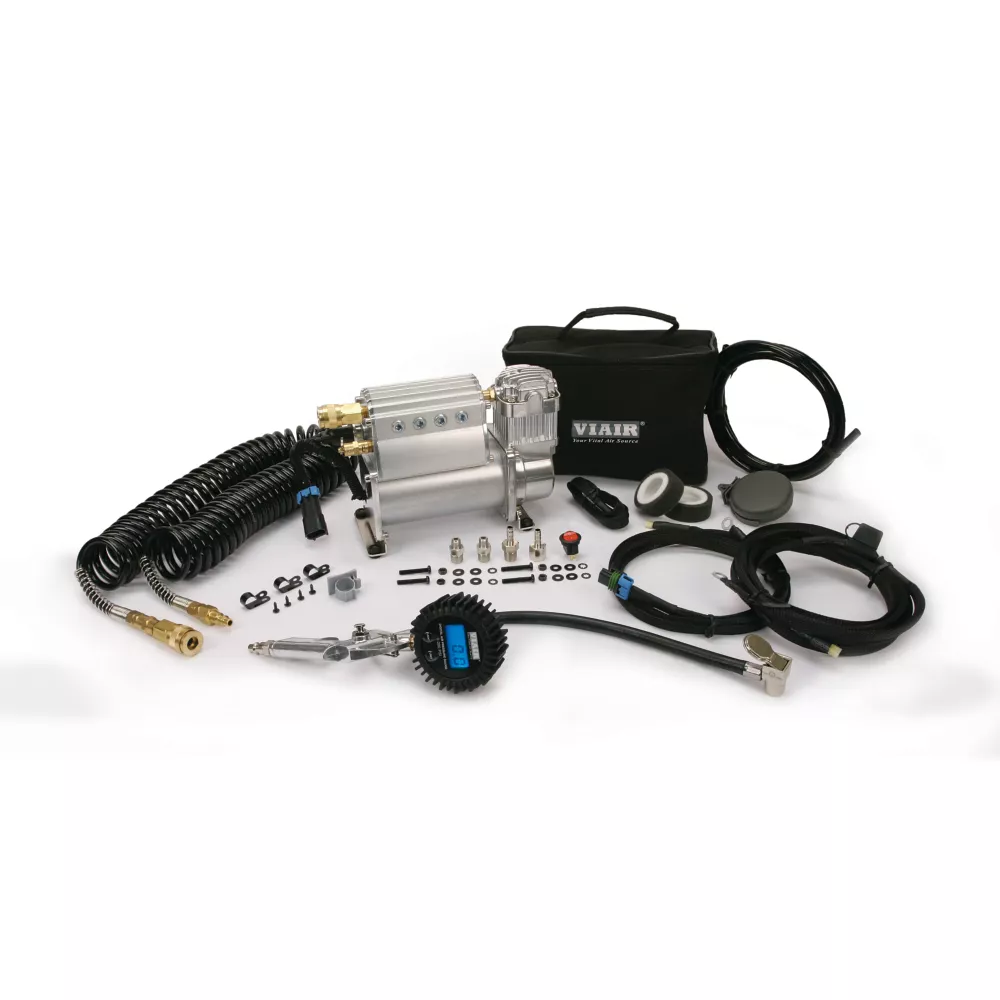

Using a 33% duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space with the Viair Heavy Duty Universal-Mount ADA System. The ADA system includes an extruded aluminum air tank with 12 ports and two remote mount air filter relocation fittings. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a digital tire inflation kit. Additionally, a wiring harness is included with the universal-mount ADA system to make the installation a plug and play process, with very little install time required.

150 PSI / 2.62 CFM rated
12-volt universal-mount ADA system
Duty Cycle: 33% @ 100 PSI
Max. working pressure of ADA system: 105 PSI
Max. amp draw of ADA system: 28 Amps
400C Compressor with Thermal Overload Protector
Extruded Aluminum Air Tank with 12 ports
Toggle Switch
Air Line for Remote Mount Air Filter Installation
Two Remote Mount Air Filter Relocation Fittings
1/8 in. NPT Drain Cock
1/4 in. NPT Safety Valve
Eight 1/4 in. NPT Hex Plugs
1/4 in. NPT Sealed Pressure Switch (85/105 PSI)
Two 1/4 in. NPT BSP Adapters
1/4 in. NPT Automatic Coupler
Permanent Magnetic Motor
Ingress Protection Rating: IP67
Dimensions: 9 in. L x 4 in. W x 6.75 in. H
Net weight of ADA system: 10 lb.
Wiring harness comes with a 30-amp delphi connector set, a 60-amp fuse holder, a 40-amp fuse, two 1/4 in. ring terminals, a 5/16 in. ring terminal and three female spade terminal connectors

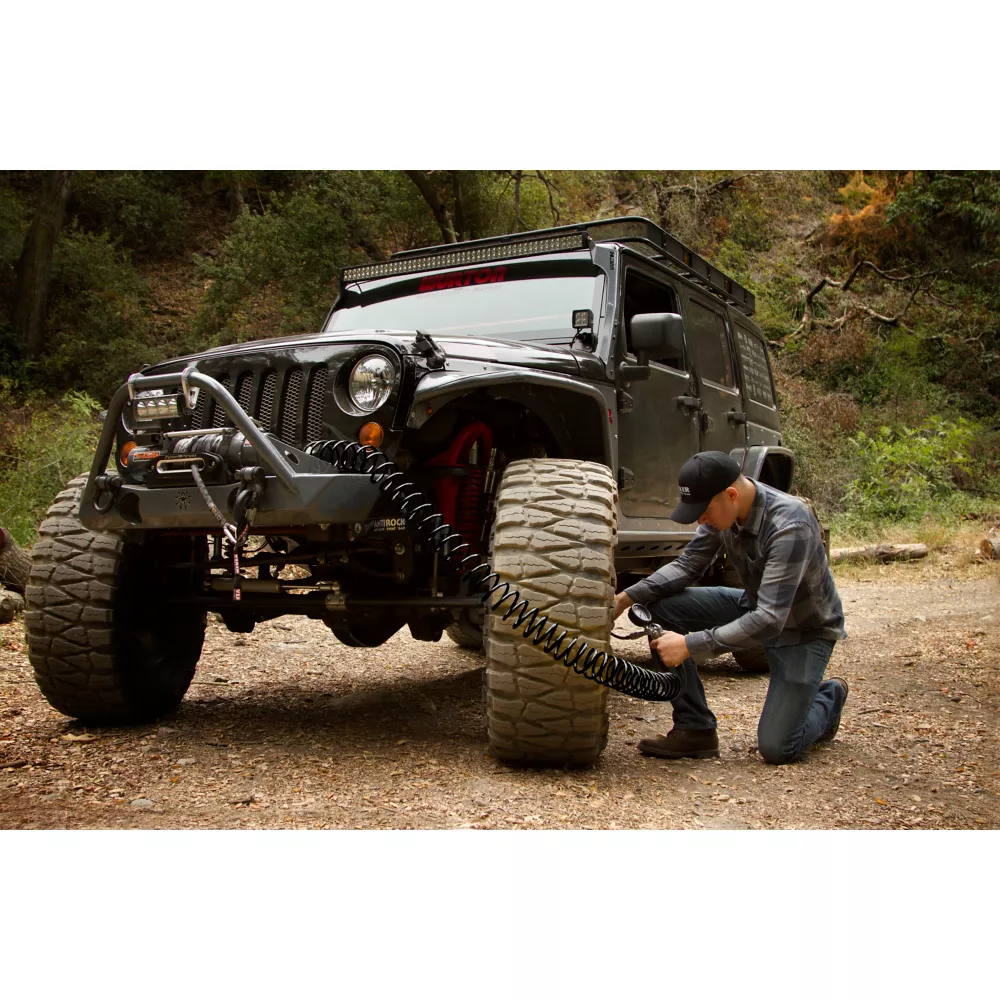

Digital tire inflation kit includes a 30 ft. inflation hose with automatic couplers and a digital tire inflation gun

VIAIR Universal Mount Heavy Duty ADA System 150 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.52 CFM
Airflow Volume	2.62 CFM
Air Outlet Size	1/4 in. NPT
Amperage	28A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	105 PSI
Compressor Tank Capacity	0.25 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	Manual
Drive Type	DC
Features	Https://www.viaircorp.com/ada/ada-heavy-universal
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	9 in.
Product Weight	10 lb.
Product Width	4 in.
Pump Material	Metal
Tank Fill Time	30 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	40049
