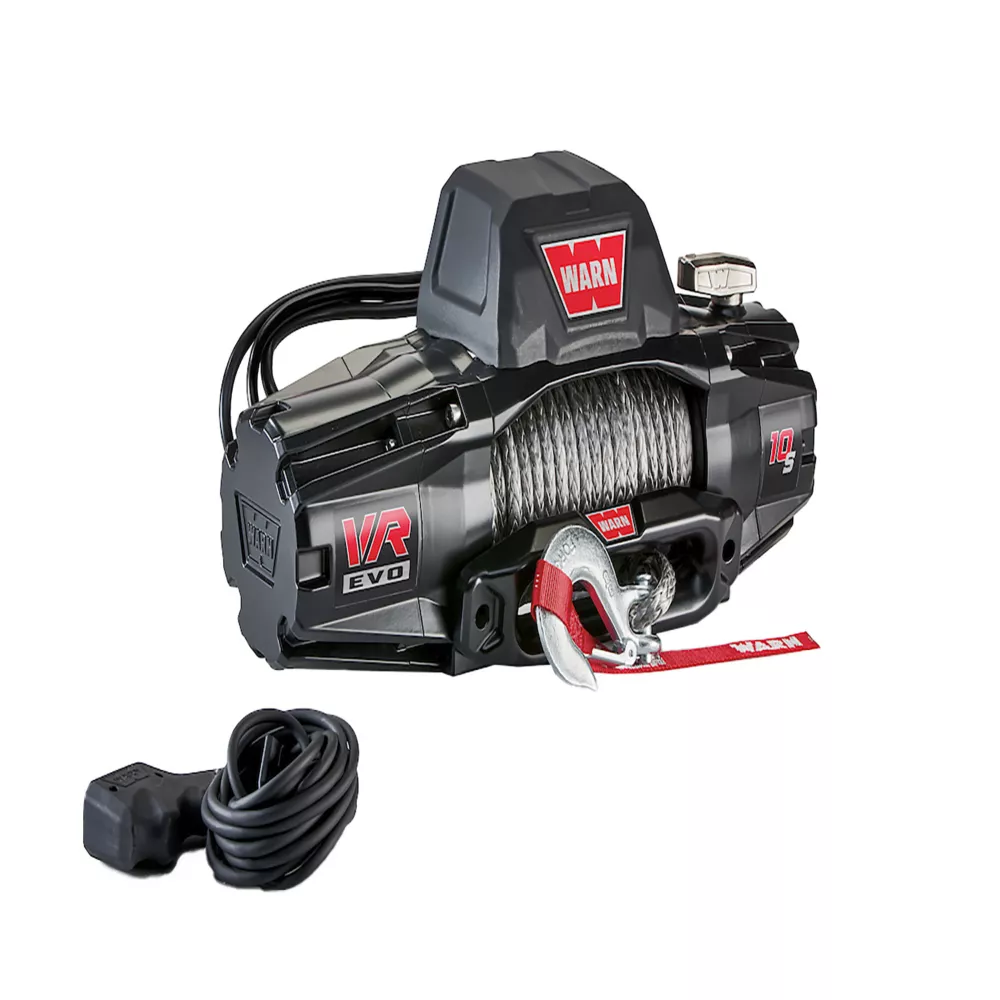

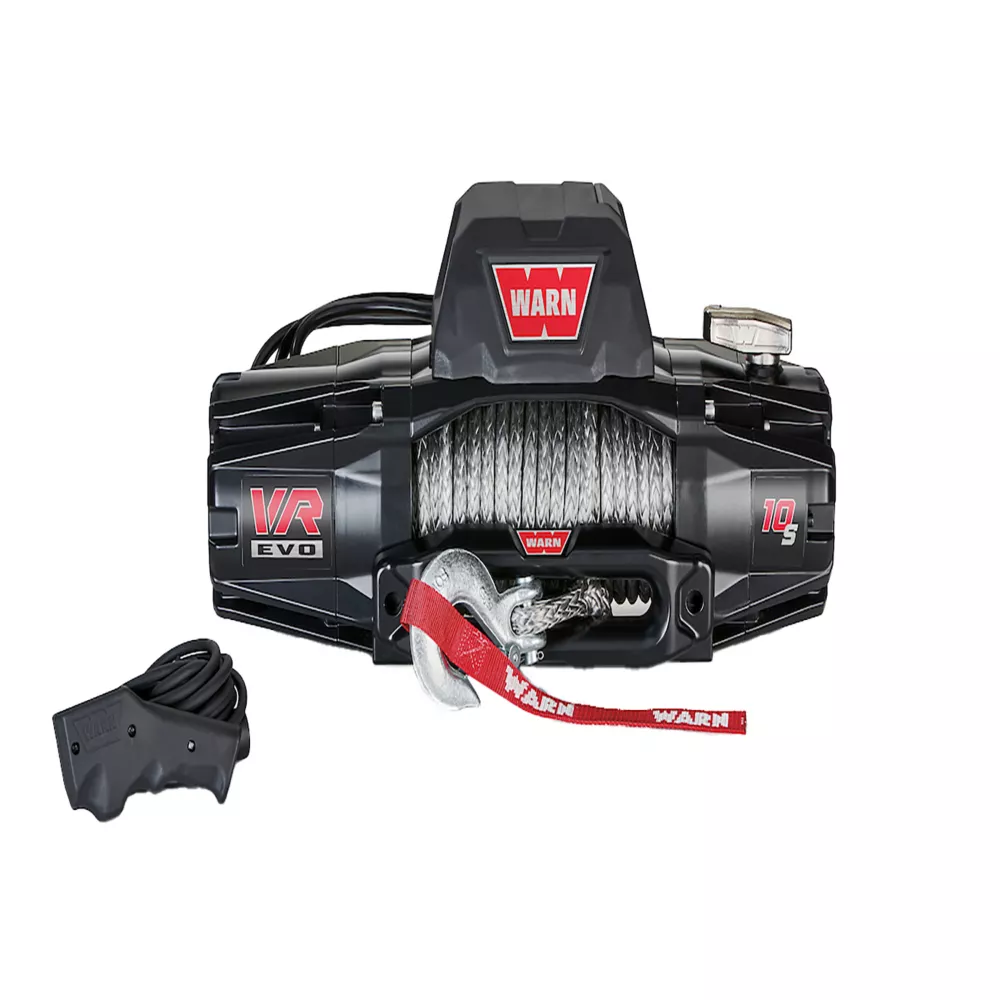

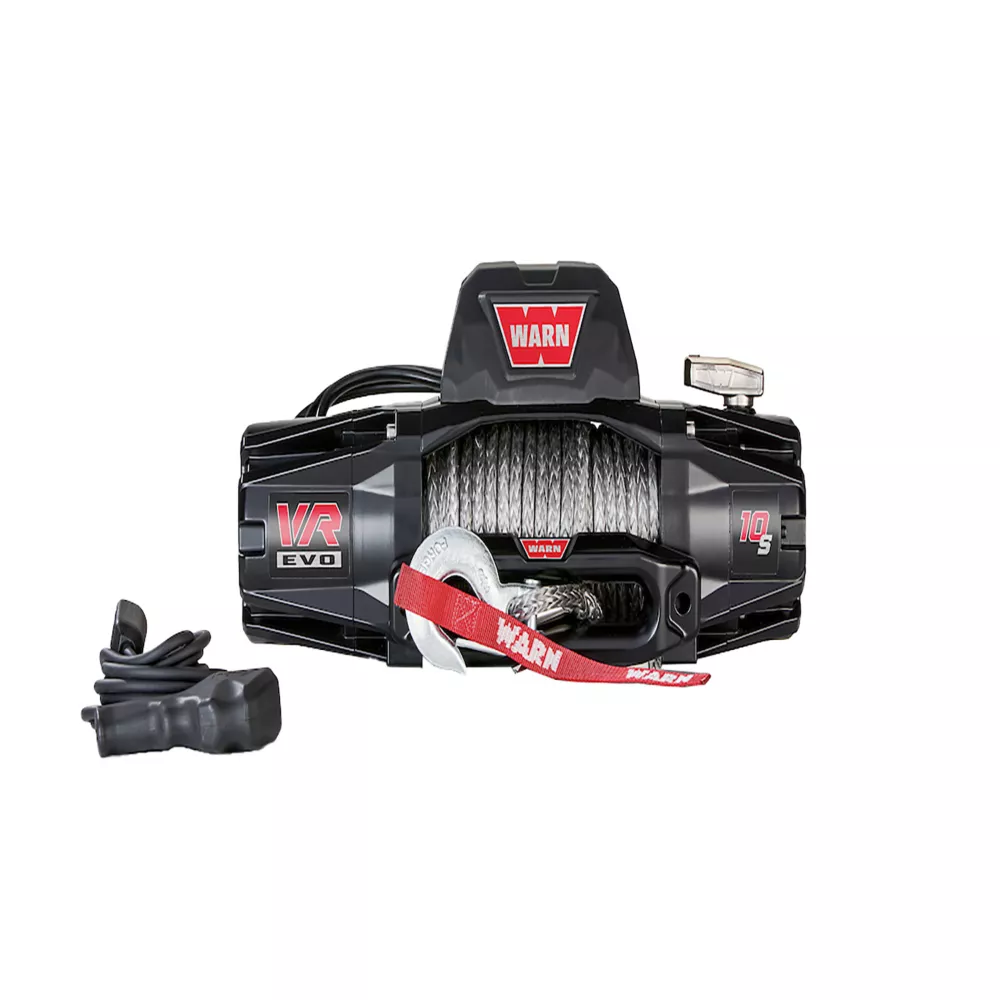

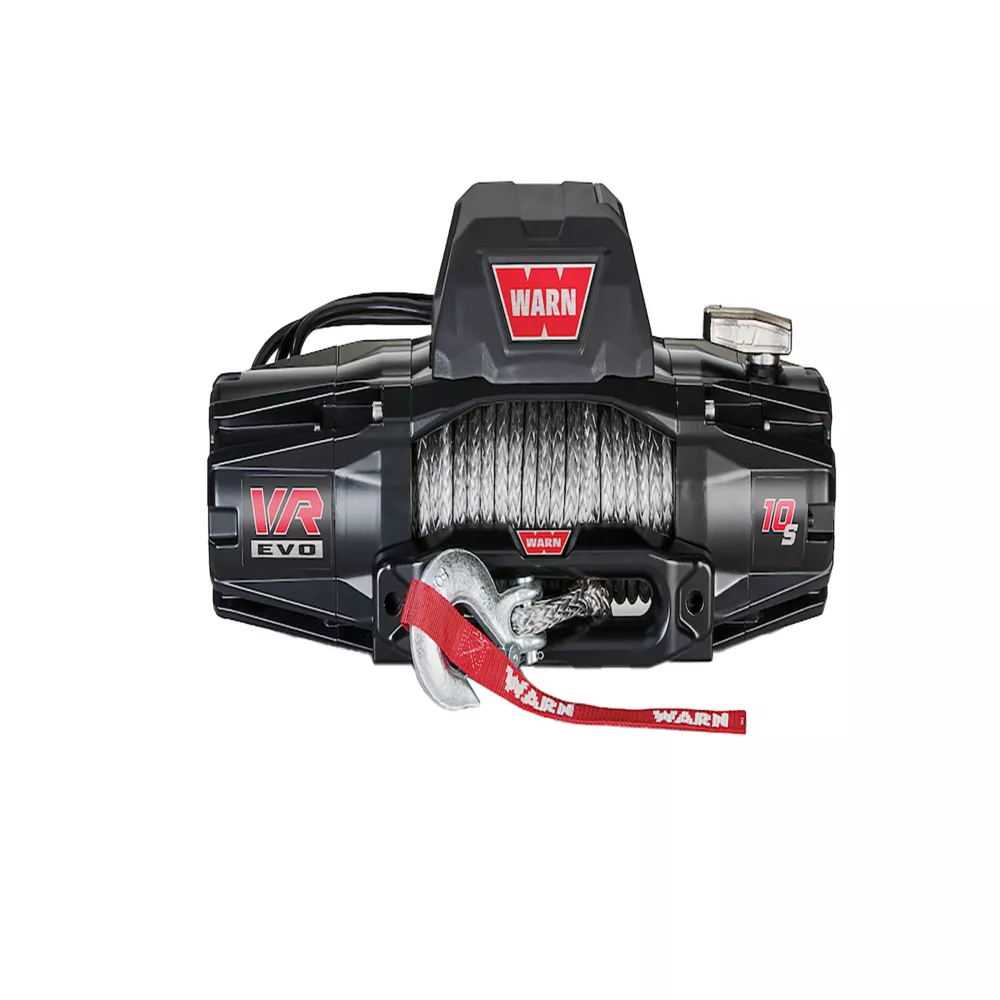

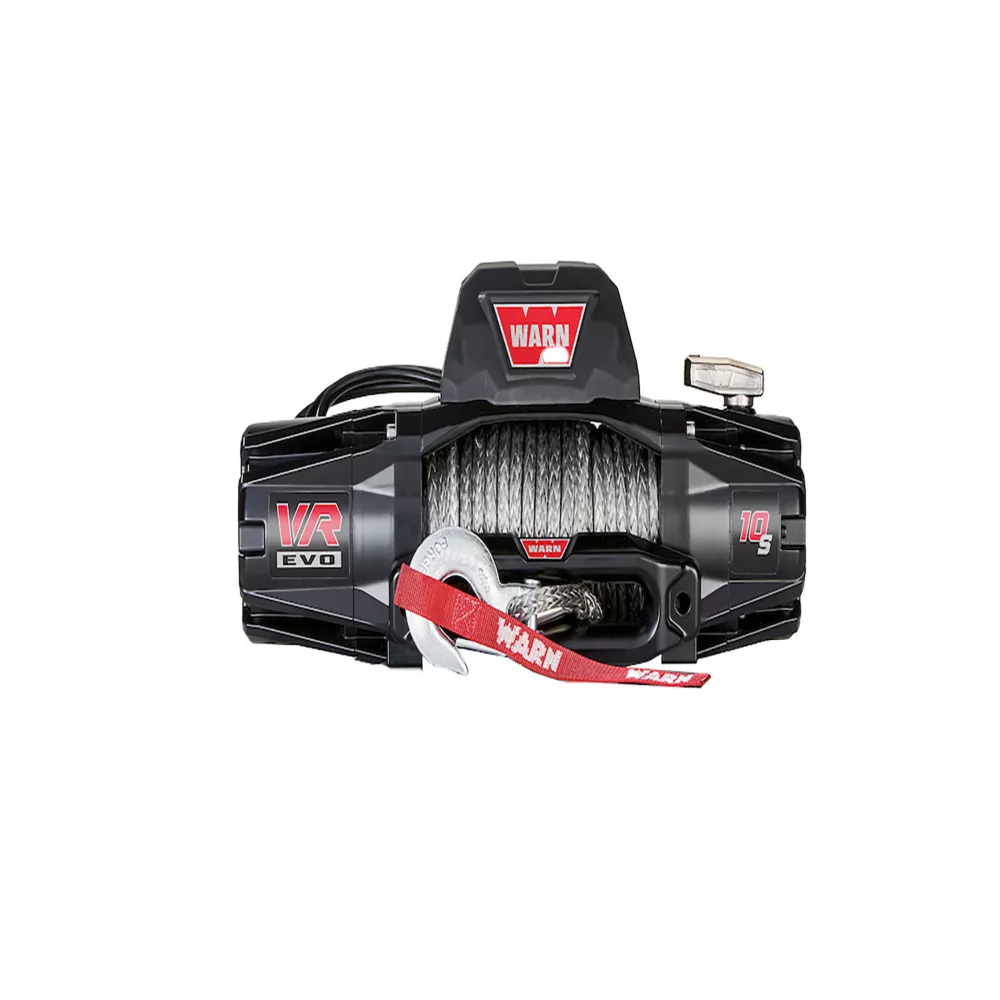

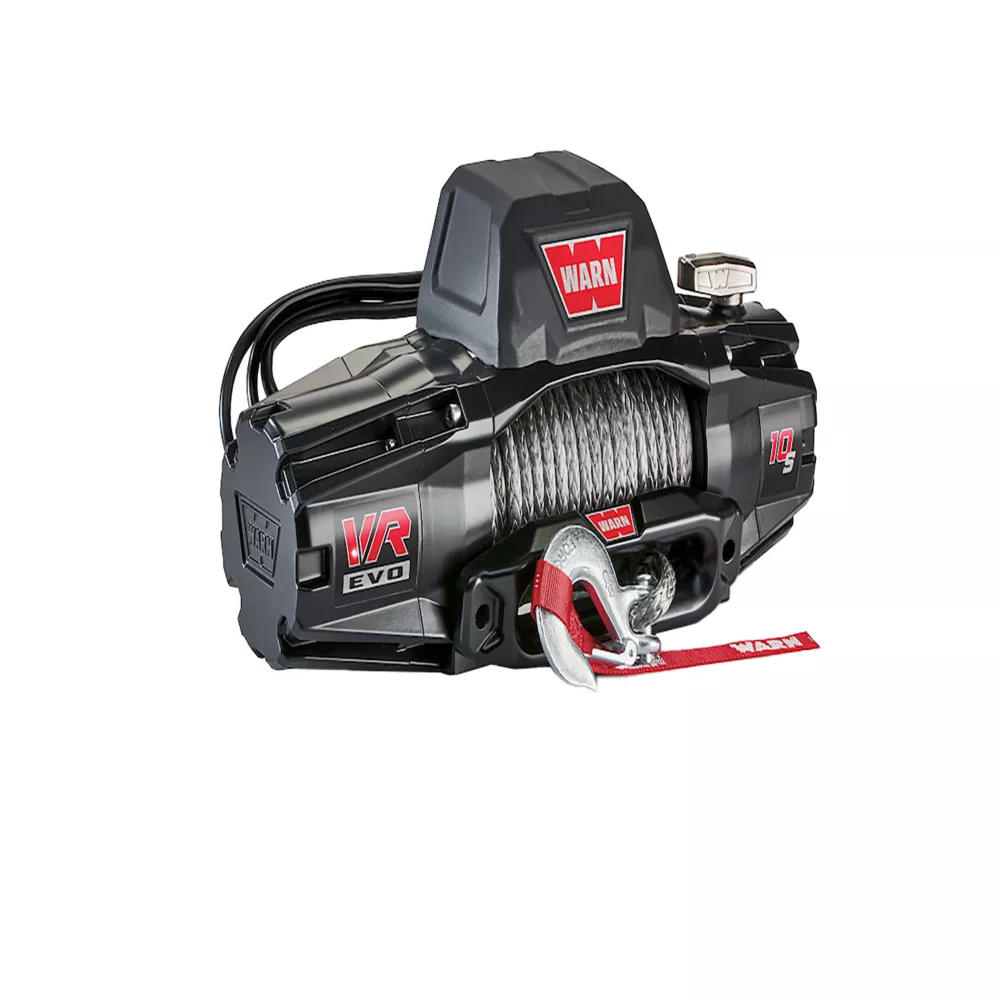

Warn VR10-S Electric Winch for Truck/SUV/Jeep 10 000 lb Capacity Synthetic Rope 12V Truck & SUV Winches Truck & Automotive

The new WARN VR10-S offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The new convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load. Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs.

Black Tactical Look Puts You At The Head Of The Off-Road Pack
Waterproof Albright Contactor Control For The Ultimate In Reliability
One-Piece Tie Plate Replaces Tie Rods For Added Strength And Rigidity
Convertible Control Pack Allows Upright Or Low-Profile Winch Mounting
Powerful, Efficient Series-Wound Motor
Best-In-Class Load-Holding Cone Brake For Superior Control
Max Line Pull 10,000lbs

Warn VR10-S Electric Winch for Truck/SUV/Jeep 10 000 lb Capacity Synthetic Rope 12V Truck & SUV Winches Truck & Automotive> Truck Accessories> Truck Towing Supplies> Truck & SUV Winches

Specification	Description
Brand	Warn
Country of Origin	Imported
Braking Mechanism	Disc
Capacity	10,000 lb.
Clutch Type	Series Wound
Compatibility	1/2-ton pickups, Jeeps, and larger SUVs
Engine Brand	Warn
Engine Displacement	3-Stage Planetary Drive Gear Type
Engine Type	Electric
Fairlead Included	Yes
Fairlead Type	Hawse
Features	Black Tactical Look Puts You At The Head Of The Off-Road Pack
Gear Ratios	218:1 reduction ratio
Horsepower	4.8hp
Line Diameter	0.375 in.
Line Length	90 ft.
Line Pull Capacity	10,000 lb.
Line Speed	5.2 FPM
Maximum Operating Range	10,000 lb. , 5.2 ft. per min. Max Line Pull/Line Speed
Mounting Bolt Length	10 in.
Mounting Bolt Width	4.5 in.
Number of Speeds	Free Spooling
Power Type	Electric
Primary Material	Steel
Product Height	11.4 in.
Product Length	22.8 in.
Product Weight	72.4 lb.
Product Width	11.8 in.
Line Type	Rope
Voltage	12 V
Warranty	Limited 7 Year Warranty
Motor Type	Electric
Manufacturer PartNumber	W36103253

Warn 12V Electric VR10-S Truck/SUV/Jeep Winch, 10,000 lb. Capacity, Synthetic Rope Specifications Expand/Collapse Specification Description Brand Warn Country of Origin Imported Brake Mechanism Disc Capacity 10,000 lbs Clutch Type Series Winding Compatibility 1/2 Ton Pickups, Jeeps and Larger SUVs Engine Brand Warn Engine Displacement 3-stage planetary drive Gear type Motor type Electric fairlead included Yes Hawse fairlead type Features Black tactical look puts you at the head of the off-road pack Gear ratios 218:1 reduction ratio Power in horsepower 4.8 hp Line diameter 0.375 in. Line length 90 ft. Line pull capacity 10,000 lb. Line speed Maximum operating range 5.2 FPM 10,000 lb., 5.2 feet per minute . Maximum Pull/Line Speed Mounting Bolt Length 10 in. Mounting bolt width 4.5 in. Number of speeds Free spool Power type Electric Main material Steel Product heightuit 11.4 in. Product length 22.8 in. Product weight 72.4 lbs. Product width 11.8 in. Line Type Cable Voltage 12V Warranty 7 Year Limited Warranty Motor Type Electric Manufacturer Part Number W36103253
