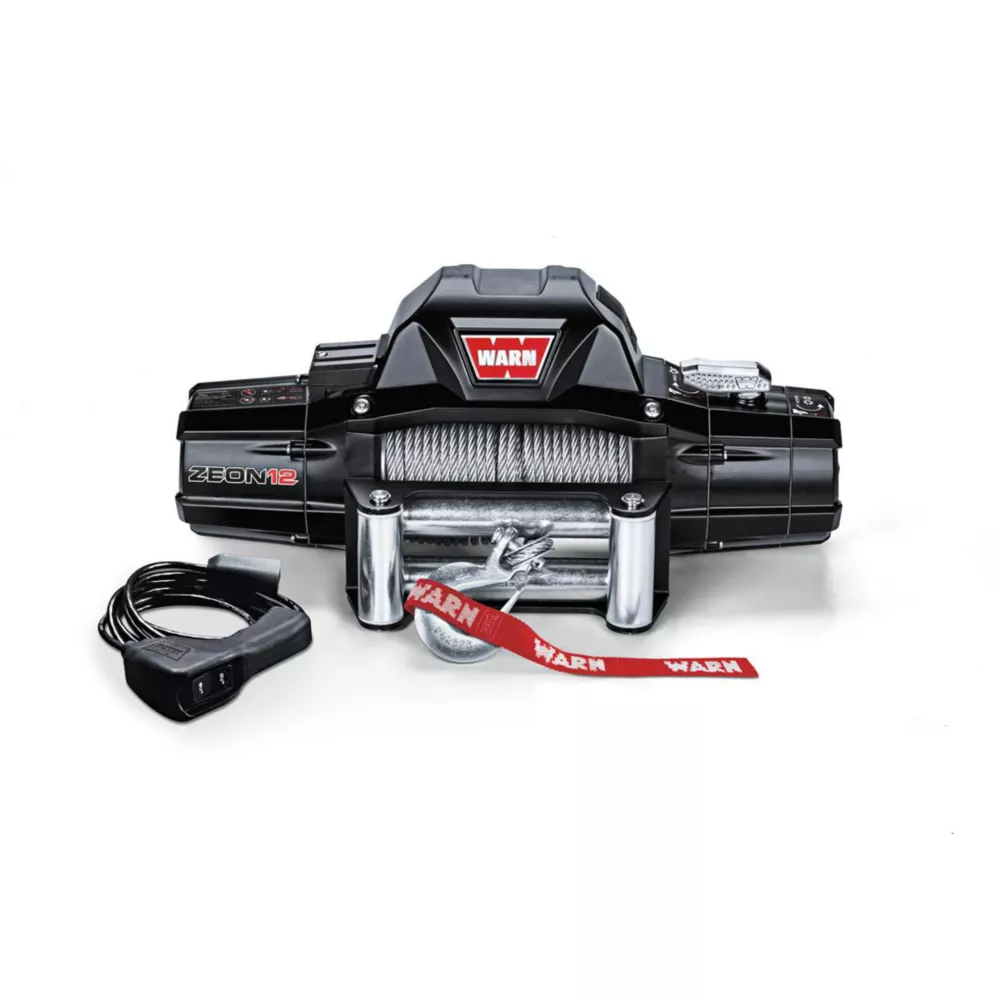

Warn ZEON 12 Electric Winch 12V 12 000 lb Capacity Wire Rope Truck & SUV Winches Truck & Automotive

The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything. Full metal armor protects vital components from impact and damage.

Gear Train and Motor Deliver Reliable Pulling Power That is Fast, and Quieter Than Ever
Satin Black Powder Coated Finish with Stainless Steel Fasteners And Clutch Lever Looks Great and Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
12,000 Pounds (5443 Kilograms) Single Line Pulling Capacity
Includes 80 Foot Of Durable 3/8 Inch Galvanized Steel Wire Rope
Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, and Has an Integrated Rope Anchor for Easy Rope Installation
Fast no-load line speed, up to 22% faster than Warn's Standard Duty winches
Automotive-grade busbars replace unsightly wires for greater electrical efficiency, superior connection, and a cleaner look
Made in the USA

Warn ZEON 12 Electric Winch 12V 12 000 lb Capacity Wire Rope Truck & SUV Winches Truck & Automotive> Truck Accessories> Truck Towing Supplies> Truck & SUV Winches

Specification	Description
Brand	Warn
Country of Origin	Made in USA
Braking Mechanism	Automatic
Capacity	12000 lb.
Clutch Type	Planetary Drive Gear
Compatibility	Vehicle Recovery
Engine Brand	Warn
Engine Displacement	12 V
Engine Type	Electric
Fairlead Included	Yes
Fairlead Type	Roller
Features	Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
Gear Ratios	1900-01-10 21:01:00
Horsepower	5hp
Line Diameter	3/8 in.
Line Length	80 ft.
Line Pull Capacity	12000 lb.
Line Speed	3.3 FPM
Mounting Bolt Length	10 in.
Mounting Bolt Width	4.5 in.
Number of Speeds	1
Power Type	12 Volt
Primary Material	Steel
Product Height	8.5 in.
Product Length	27.5 in.
Product Weight	105 lb.
Product Width	19 in.
Line Type	Rope
Voltage	12 V
Warranty	Limited Lifetime Warranty
Motor Type	Electric
Manufacturer PartNumber	W3689120

Warn 12V Electric ZEON 12 Winch, 12,000 lb. Capacity, Wire Rope Specifications expand/collapse Specification Description Brand Warn Country of Origin Made in USA Brake Mechanism Automatic Capacity 12,000 lbs. Clutch Type Planetary Drive Gear Compatibility Recovery Vehicle Engine Brand Warn Engine Displacement 12V Motor Type Electric Fairlead Included Yes Fairlead Type Roller Features Convertible Control Pack Can Be Attached to Winch or Mounted remote, allowing for various winch mounting options and looks. Gear Ratios 1900-01-10 21:01:00 Horsepower 5 hp Line diameter 3/8 in. Line length 80 ft. Line pulling capacity 12,000 lbs. Speed 3.3 FPM Mounting Bolt Length 10 in. Mounting bolt width 4.5 in. Number of Speeds 1 Power Type 12 Volt Main Material Steel Product Height 8.5 in. Product length 27.5 in. Product weight 105 lbs. Product width 19 in. Line type Voltage de rope 12V Warranty Limited Lifetime Warranty Motor Type Electric Manufacturer Part Number W3689120
