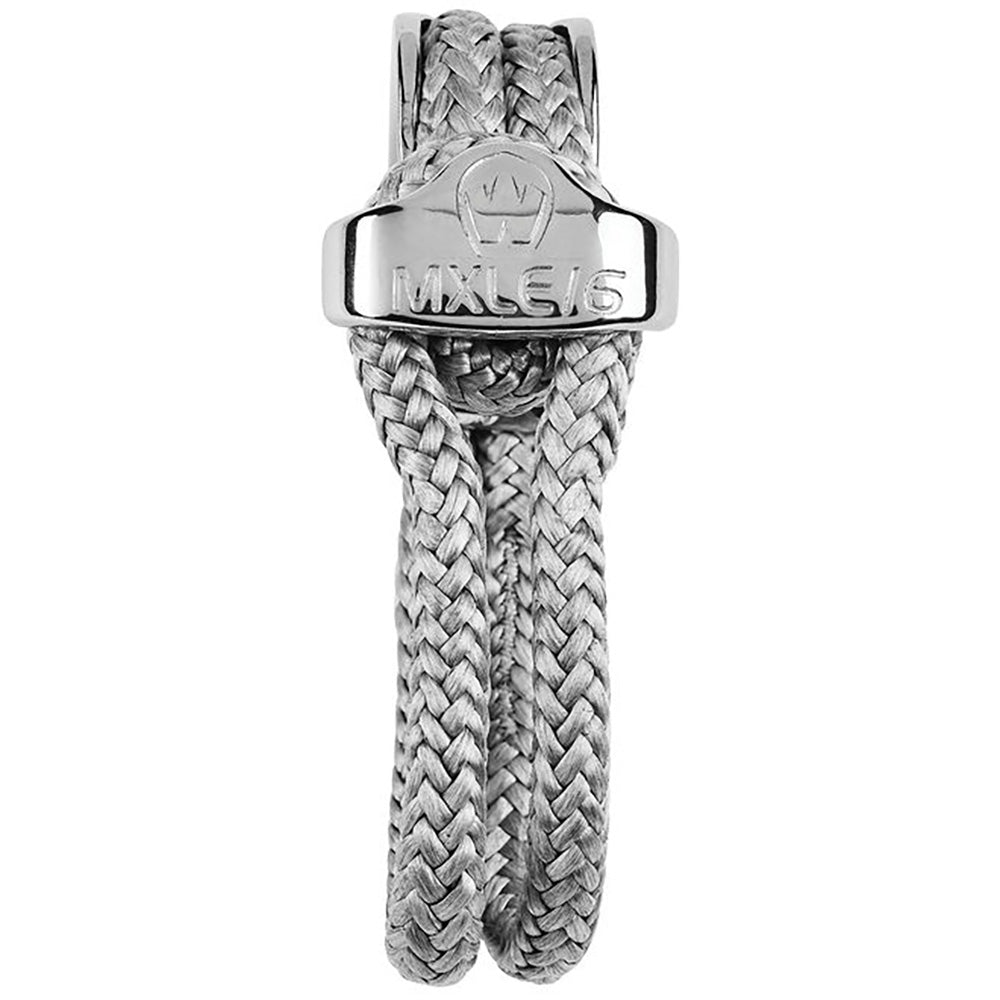

Wichard MXLEvo 16 - Soft block - Rope size 16 mm - 11/16" Sailing

MXLEvo 16 - Soft block - Rope size 16 mm - 11/16"

Features:

MXLEvo: A flexible block solution designed for all boaters, amateurs or professionals Designed for heavy applications, this system is available in three sizes
Economical and easy to use: Delivered complete with a buckle Dyneema SK78, no special technical knowledge is necessary to use the MXLEvo. It installs easily and quickly on any type of anchor (plate chain, head cables, etc.). inside the block when there is no load on the system
The MXLEvo offers excellent value for money. It is one of the cheapest flexible blocks on the market. li>
Heavy load applications: The MXLEvo is designed for use with heavier blocks (low rope travel speed).use as a mast foot block, halyard tackle, barber tamper, hoist, sheet return, main sail, foot, etc.
Light, robust and very compact, the MXLEvo offers exceptional resistance for its weight. Compared to a standard competitor block, the MXLEvo 16 is: twice as strong, half as heavy, 35% lighter rope with a higher breaking load
A reliable, maintenance-free solution: as it contains no moving parts (like a pulley), the MXLEvo is very reliable and requires no maintenance
Adaptable to your deck plan: The MXLEvo loop can be positioned in two ways , making it easily flexible to your deck and any anchor point or chainplate alignment you choose

Applications:

Mast foot block
Halyard block
Barber pull
Purchase
Attachment
Listening feedback
Main saile vang
Tear-off block (in this case it is recommended to use 8mm rope)

Specifications:

Materials: Duplex stainless steel grade S78 Dyneema
Ropesize: (inches) 11/16" / (mm) 16

Dimensions:

Length: (inches) 1 27/32" / (mm) 47
Width: (inches) 2 23 /64" / (mm) 60
Thickness: (inches) 1 39/64" / (mm) 41
Loop Diameter: (inches) 15/64" / (mm) 6
Loop Length: (inch) 10 5/8" / (mm) 270
Working Load: (lb) 5,510 / (kg) 2 500
Breaking load: (lb) 11,020 / (kg) 5,000
Weight: (lb) 0.309 / (g) 140

Legend:

Working load (WL): for nautical applications
Working load limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold individually

PRODUCT ID: 97719
SKU: NVN-97719
CSKU: CWR-97719
REWRITE: 108830-wichard-mxlevo-16-soft-block
MPN: 21106
UPC:
ASIN:
WSKU:
SSKU:
KSKU:
GSKU:
MSKU:
LSKU:
NAME: Wichard MXLEvo 16 - Soft block - String size 16mm - 11/16"
NAME_EX: WICHARD MXLEVO 16MM MAX LINE
PTITLE: Wichard MXLEvo 16 - Soft block - Rope size 16 mm - 11/16"
TYPE: Sailing | Shackles/Rings/Pins
SELLER: Wichard Marine
VEHICLES & PARTS> VEHICLE PARTS & ACCESSORIES> POWERWATER PARTS & ACCESSORIES> SAILBOAT PARTS

Gtags:

G Specifications:

Wichard MXLEvo 16 - Soft block - String size 16 mm - 11/16" Product description

MXLEvo 16 - Soft block - String size 16 mm - 11/16"

Features:

MXLEvo: A flexible block solution designed for all boaters, amateurs or professionals. Designed for heavy load applications, this system is available in three sizes
Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you do not need any particular technical knowledge to use the MXLEvo. It installs easily and quickly on any type of anchor (plate chain, head cables, etc.). The string box keeps the strings inside the block when there is no load on the system
The MXLEvo offers excellent value for money. It is one of the least expensive flexible blocks on the market.
Heavy-duty applications: The MXLEvo is designed for use with chaheavier rges (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber carrier, hoist block, sheet return, main sail, foot, etc.
Light, robust and very compact, the MXLEvo offers exceptional strength for its weight. Compared to a standard competitor block, the MXLEvo 16 is: twice as strong, half as heavy, 35% lighter rope with a higher breaking load
A reliable, maintenance-free solution: as it contains no moving parts (like a pulley), the MXLEvo is very reliable and requires no maintenance
Adaptable to your deck plan: The MXLEvo loop can be positioned in two ways , making it easily flexible to your deck and any anchor point or chainplate alignment you choose

Applications:

Blockmast foot
Downhaul main sail
Tear-off block (in this case it is recommended to use an 8mm rope)

Specifications:

Materials: S78 Dyneema grade duplex stainless steel
Rope size: (inches) 11/16" / ( mm) 16

Dimensions:

Length: (inches) 1 27/32" / (mm) 47
Width: (inches) 2 23/64" / (mm) 60
Thickness: (inches) 1 39/64" / (mm) 41
Diameter Loop Length: (inches) 15/64" / (mm) 6
Loop Length: (inches) 10 5/8" / (mm) 270
Load work: (lb) 5,510 / (kg) 2,500
Breaking load: (lb) 11,020 / (kg) 5,000
Weight: (lb) 0.309 / ( g) 140

Legend:

Working load (WL): For nautical applications
Workload limit(WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold individually
