Zeeline by Milton 115V 18.5 GPM Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive

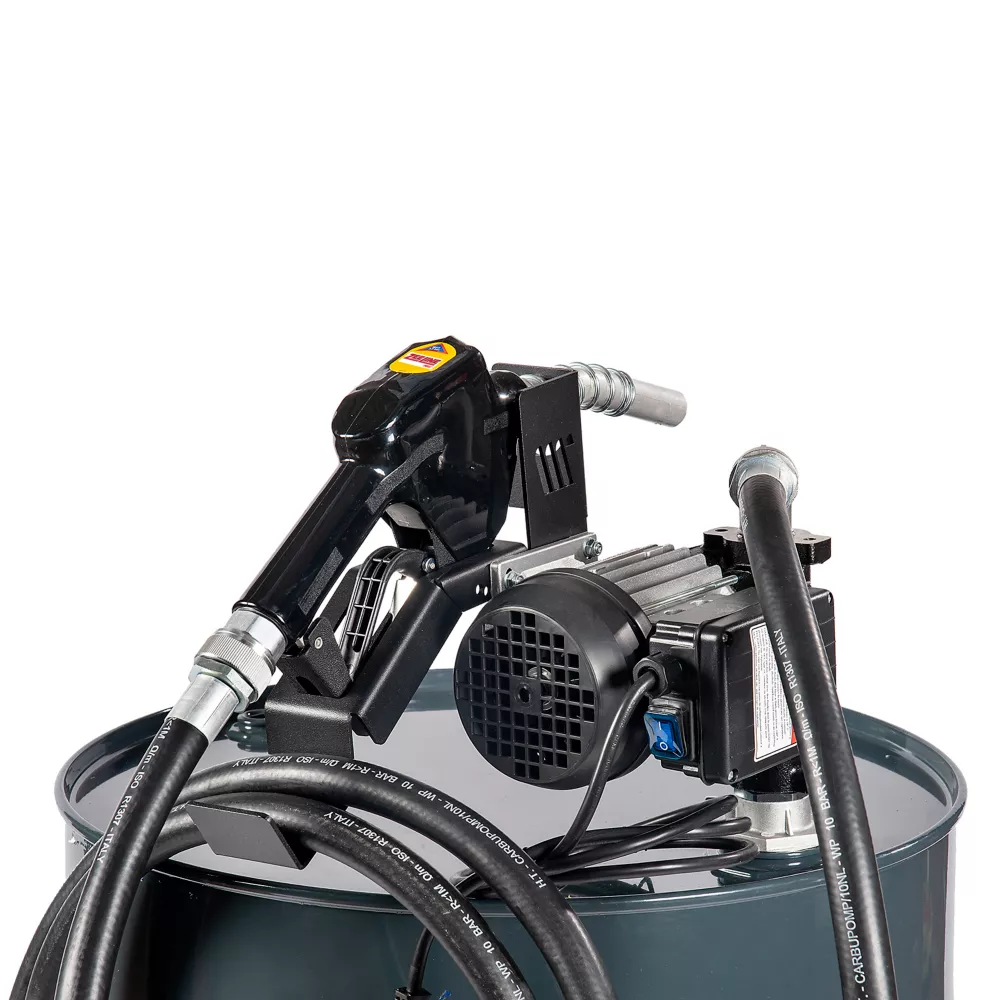

This Zeeline by Milton 115V 18.5 GPM Fuel Transfer Pump Kit is designed for transferring diesel fuels only. This fuel transfer pump kit includes a 13 ft. delivery hose, a manual style dispensing nozzle, a nozzle bracket, and a telescoping pickup. This pump will transfer diesel fuel from containers with a 2 in. port opening and can transfer diesel fuel to equipment or containers with ease. With a delivery rate of 18.5 GPM, this diesel transfer pump can deliver efficiently and reduce down time for refueling.

Main pump body is constructed of durable cast iron, making it durable and able to handle daily use
Fuel transfer pump includes a 13 ft. delivery hose for maximum fueling distance
Diesel transfer pump motor is ready to operate out of the box, only requiring you to install the delivery hose, suction tube, nozzle, and bracket before pumping
Connect the power and flip the on/off switch
Fuel hose includes an anti-static wire for safer operation
1 in. NPT threads
Self-priming pump
Power: 500W
Maximum suction height: 10 ft.
Vane is made of resin, and the impeller is made of sintered steel for lasting strength

Zeeline by Milton 115V 18.5 GPM Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Zeeline by Milton
Country of Origin	Imported
Body Materials	Steel
Compatible Fluids	Diesel
Discharge Connection	Male
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	For use with Diesel fuel
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Standard
Maximum Flow Rate	18.5 GPM
Maximum Head Lift	1 each
Maximum Operating Pressure	30 PSI
Maximum Operating Temperature	150 deg.
Minimum Operating Pressure	5 PSI
Minimum Operating Temperature	-10 deg.
Power Type	Plug-In
Product Height	7 in.
Product Length	24 in.
Product Weight	31 lb.
Product Width	15 in.
Voltage	115 V
Warranty	1 year
Manufacturer PartNumber	ZE930
