Zeeline by Milton 12V 12 GPM Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive

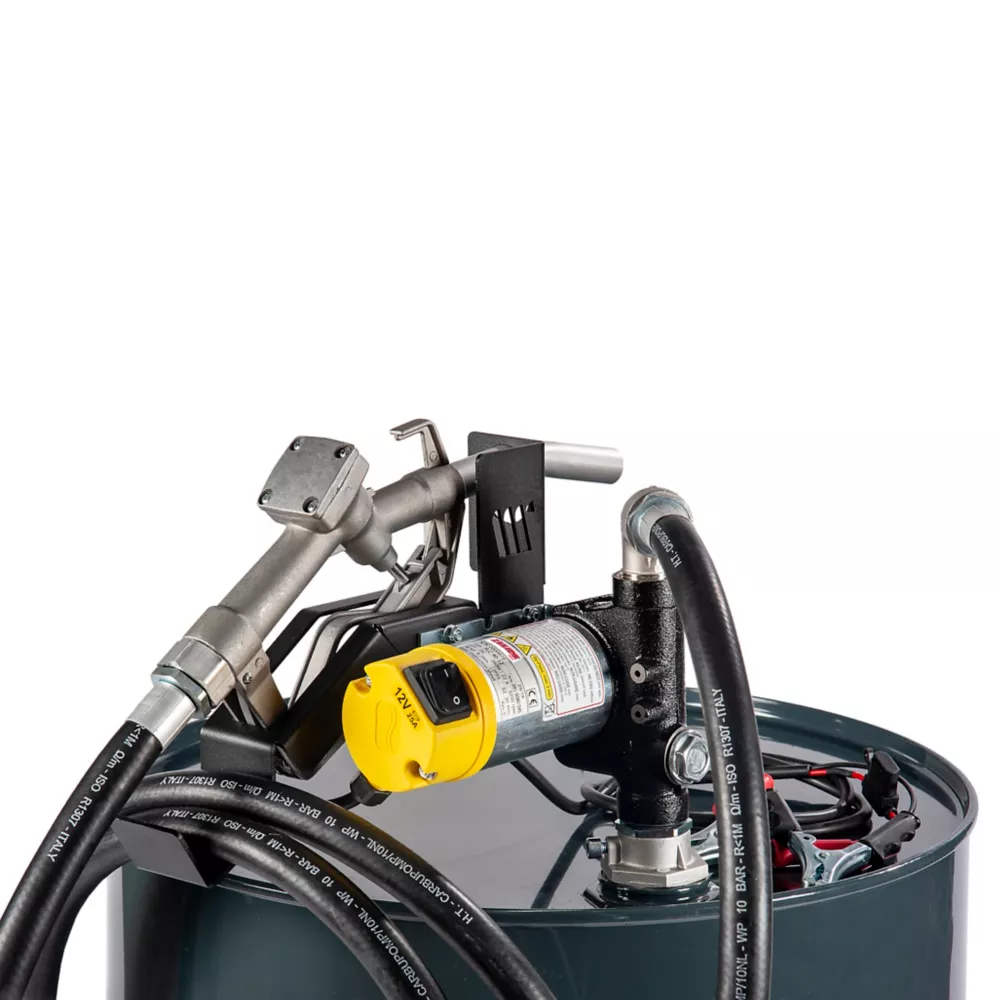

The Zeeline by Milton 12V 12 GPM Fuel Transfer Pump Kit includes a 13 ft. delivery hose, a manual style dispensing nozzle, a nozzle bracket, and a telescoping pickup. This 12V electric fuel pump is designed for transferring diesel fuels only. This fuel transfer pump will transfer diesel fuel from containers with a 2 in. port opening and can transfer diesel fuel to equipment or containers with ease. With a delivery rate of 12 GPM, this diesel transfer pump can deliver efficiently and reduce down time for refueling.- Main pump body is constructed of durable cast iron, making it durable and able to handle daily use
- Included 13 ft. delivery hose for maximum fueling distance
- Fuel transfer pump motor is ready to operate out of the box, requiring you to simply install the delivery hose, suction tube, nozzle, and bracket and then pump away
- Connect the power and flip the on/off switch
- Fuel hose includes an anti-static wire for safer operation
- 1 in. NPT threads
- Self-priming pump
- Power: 264W
- Maximum suction height: 10 ft.
- Features a resin vane and a sintered steel impeller
Zeeline by Milton 12V 12 GPM Fuel Transfer Pump Kit Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Zeeline by Milton |
| Country of Origin | Imported |
| AC or DC Powered | DC |
| Body Materials | Steel |
| Compatible Fluids | Diesel |
| Discharge Connection | Male |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. |
| Features | For diesel fuel |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard |
| Maximum Flow Rate | 12 gpm |
| Maximum Head Lift | 1 ea |
| Maximum Operating Pressure | 30 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 5 PSI |
| Minimum Operating Temperature | -10 deg. |
| Power Type | 12V |
| Product Height | 7 in. |
| Product Length | 24 in. |
| Product Weight | 32 lb. |
| Product Width | 15 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | ZE925 |
