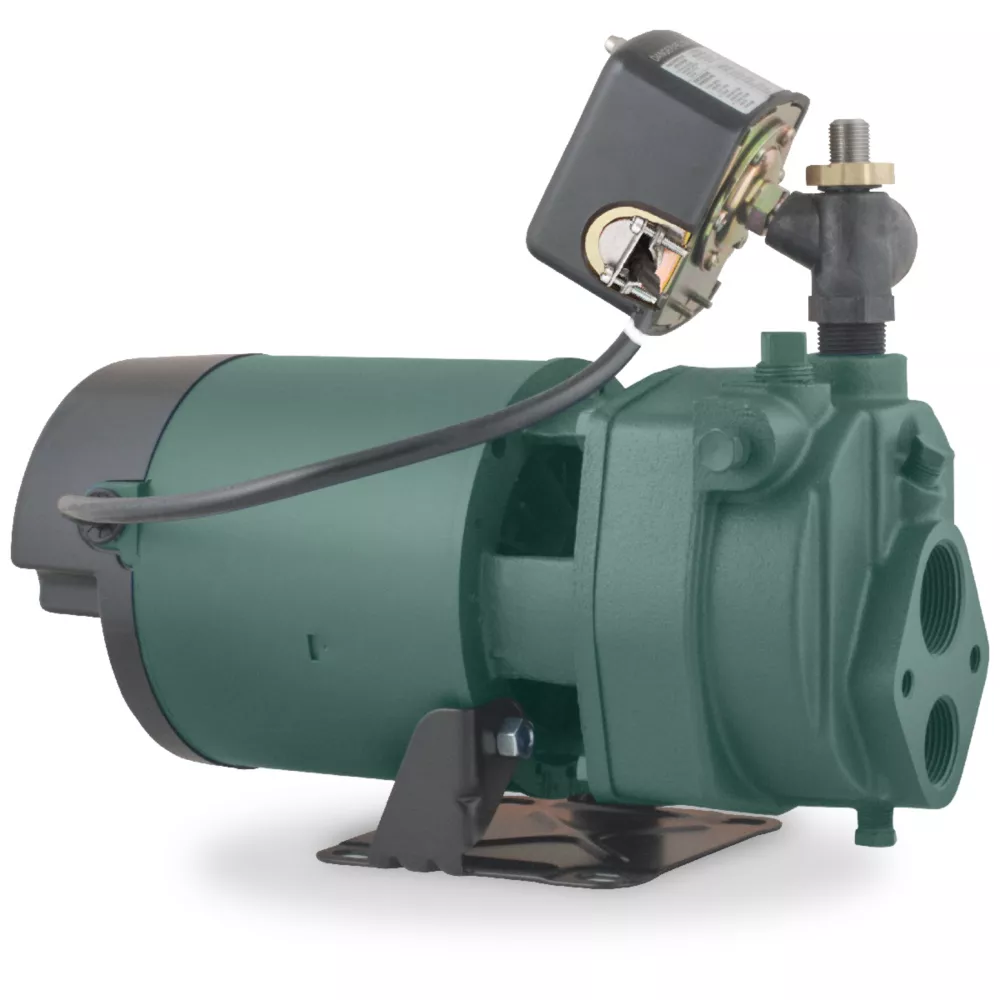

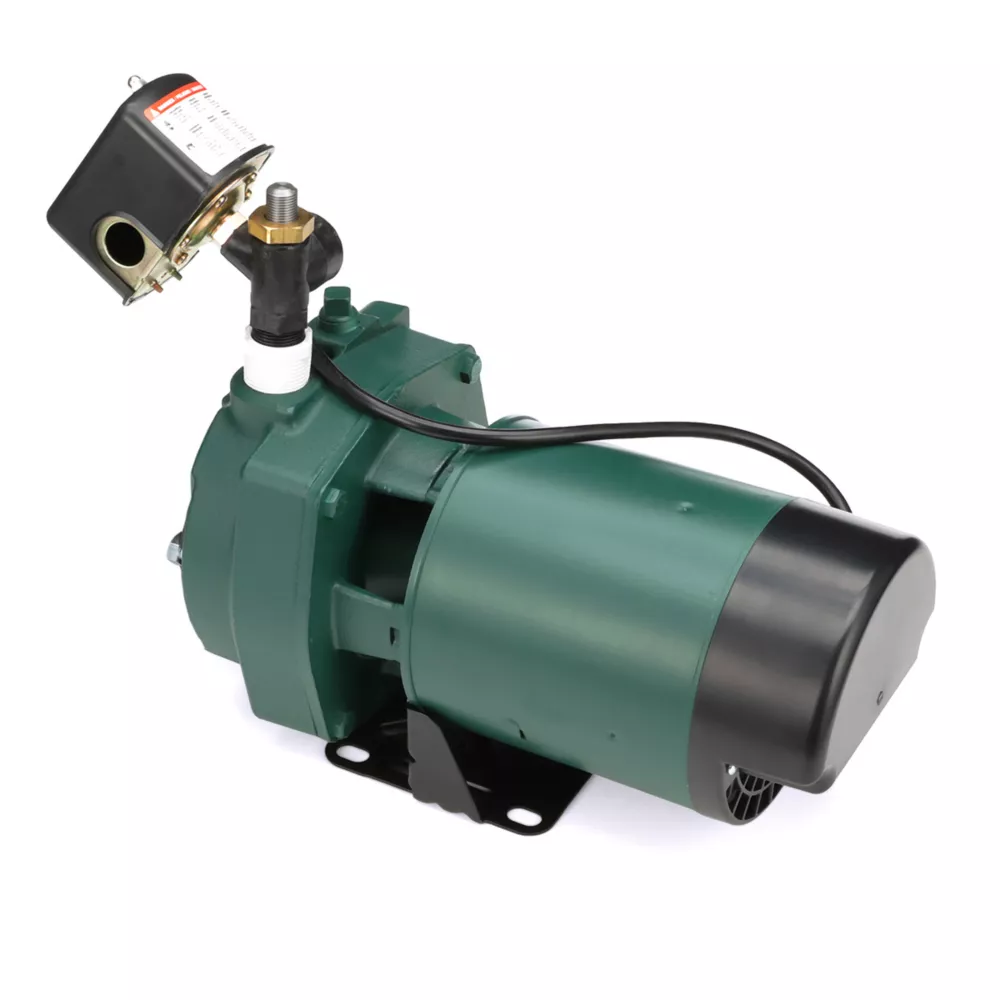

Zoeller 1 HP Cast Iron Electric Convertible Jet Pump 115/230 V 16.1 GPM Well Pumps Home Improvement

This 1 HP Convertible Jet Pump is made from rugged cast iron to promote heat dissipation and ensure long life. Draw water from up to 70 ft. in a two pipe application or can be used in single pipe as well using the included ejector delivering up to an 16 GPM flow rate. NEMA J 56 frame motor works in either 115V or 230V for easy installation. Pump includes ejector and 20/40 PSI pressure switch.

Sturdy cast-iron construction
Serviceable NEMA J adaptable uni-frame motor
Thermal overload protects against overheating
Includes pressure switch and ejector
Made in the USA, using a majority of US content
100% factory wet tested
2 year limited warranty

...

Zoeller 1 HP Cast Iron Electric Convertible Jet Pump 115/230 V 16.1 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	Zoeller
Country of Origin	Made in USA
Amperage	14 Amps
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	1-14 in. NPT
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	16.1 GPM
Discharge Rate at 25 ft.	3.9 GPM
Discharge Rate at 50 ft.	7.3 GPM
Features	Cast Iron, NEMA J 56 Frame Motor, Dual 115/230V
Horsepower	1 HP
Inlet Connection	Threaded Female
Inlet Diameter	1-14 in.
Maximum Flow Rate	16.1 GPM
Maximum Head Lift	70 ft.
Maximum Operating Depth	70 ft.
Maximum Operating Temperature	130 deg. F
Minimum Operating Temperature	35 deg. F
Power Type	Electric
Product Height	11.25 in.
Product Length	19.75 in.
Product Weight	50.6 lb.
Product Width	10.75 in.
Motor Type	NEMA J 56 Frame
Voltage	115,230V
Warranty	2 Year Limited Warranty
Manufacturer PartNumber	1463-0006
