12V DC Concentric Linear Actuator 11.81" Stroke 17.72" Retracted 28.53" Extended Acme Drive Linear Actuators Tractor Repair & Parts

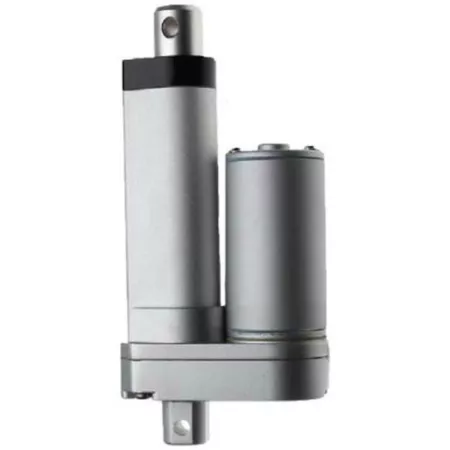

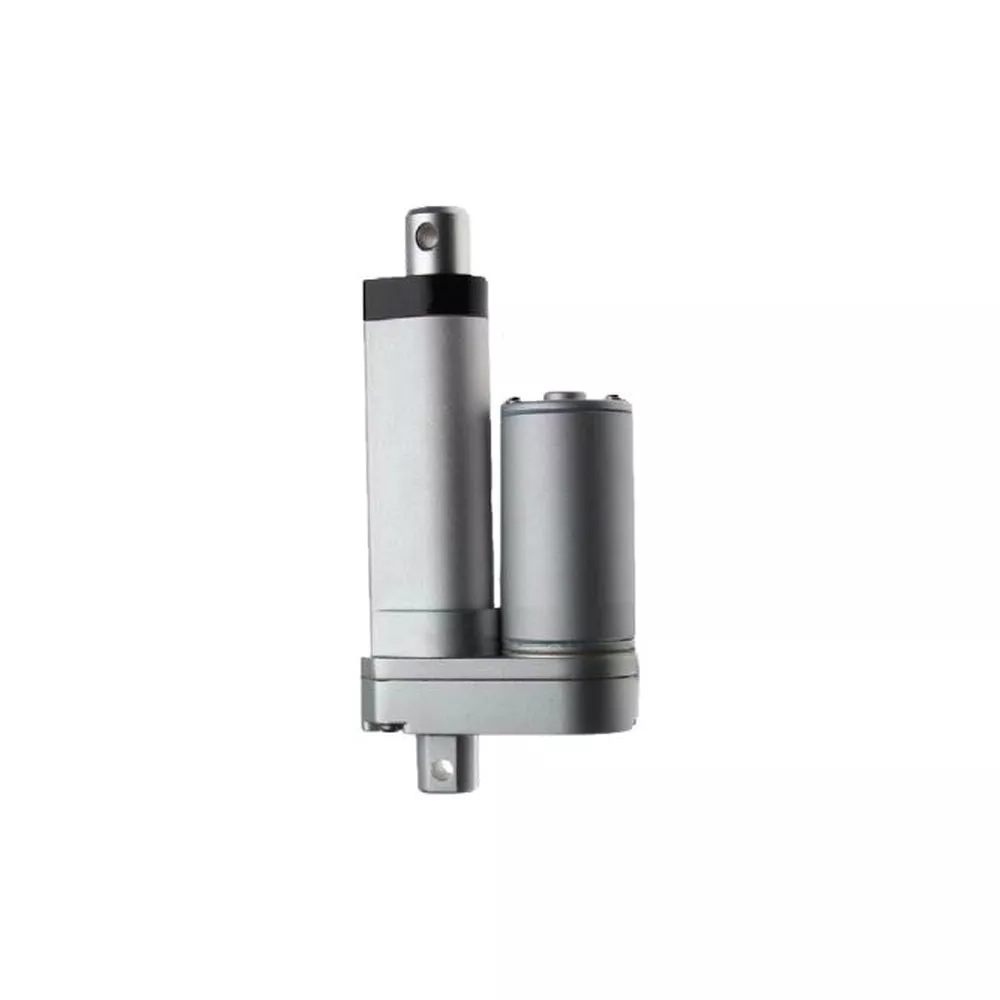

The Concentric 12VDC Linear Actuator is a gear-driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. With its compact design and numerous control and mounting options, this linear actuator is ideally suited for industrial, agricultural, automotive off-highway and other applications. The overload clutch stops the shaft when it reaches full extension.

Concentric linear actuator has a 110 lb. load capacity and a 550 lb. static capacity
IP63 rated for dust protection and water resistance to guard against damage
Linear actuator has a max load speed of .50 in./sec
Overload clutch stops the shaft when the DC linear actuator reaches full extension
Acme drive for optimal performance
Potentiometer-equipped DC linear actuators can be used with the optional controller, offering the flexibility of up to 3 programmable pre-sets
Features 17.72 in. retract, 28.53 in. extend and 11.81 in. stroke
20 mm rod diameter
Weight: 4 lb.
Backed by a 1-year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

12V DC Concentric Linear Actuator 11.81" Stroke 17.72" Retracted 28.53" Extended Acme Drive Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators

Specification	Description
Brand	Concentric
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Industrial, agricultural, automotive off highway and other applications
Input Voltage	12V
Maximum Speed	0.50 in./sec.
Model Compatibility	Most applications
Package Quantity	1
Power Source	12-Volt
Primary Material	Metal
Product Height	N/A
Product Length	N/A
Product Weight	4 lb.
Product Width	N/A
Warranty	1 Year
Manufacturer PartNumber	139275
