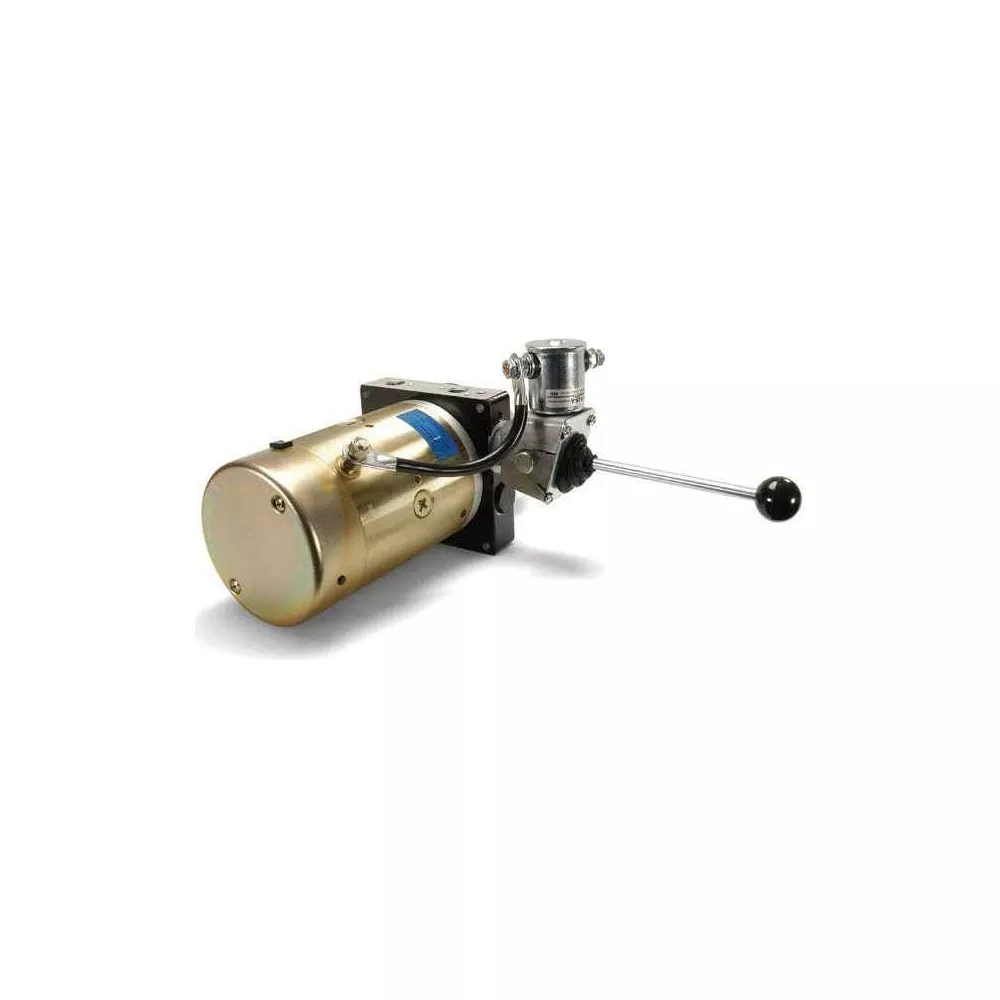

SPX 12V DC Single Acting Hydraulic Power Unit 1.6 GPM 3/8 in NPT Ports 2 500 PSI Lever Operated 3 Quart Polyethylene tank Hydraulic Pumps & Reservoirs Tractor Repair & Parts

Keep equipment running with the SPX 1.6 GPM 12VDC Single-Acting Hydraulic Power Unit. This hydraulic power unit is horizontally mounted and designed to lift, hold, and lower a load. The single acting hydraulic power unit has an integrated relief valve that allows you to intervene if your unit is building too much pressure, making the entire product that much safer!

Single acting hydraulic power unit with power up and gravity down
Features a check valve to protect the pump and a system relief valve to prevent pressure spikes
Dimensions: 6.75 in. H x 9.25 in. W x 20.3 in. L
Horizontally mounted and designed to lift, hold, and lower a load
1.6 GPM flow rate
Lever operated 12V DC hydraulic power unit for ease of use
3 qt. poly tank
2,500 PSI
3/8 in. NPT Ports
Amp: 230A at 45 Centistrokes (200 SSU)
Weight: 32 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

SPX 12V DC Single Acting Hydraulic Power Unit 1.6 GPM 3/8 in NPT Ports 2 500 PSI Lever Operated 3 Quart Polyethylene tank Hydraulic Pumps & Reservoirs Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Pumps & Reservoirs

Specification	Description
Brand	SPX
Country of Origin	Made in USA
Amperage	230A at 45 Centistrokes (200 SSU)
Compatible Pipe Material	N/A
Discharge Port	N/A
Engine Displacement	N/A
Features	N/A
Hose Diameter	N/A
Housing Material	Other
Inlet Diameter	N/A
Maximum Flow Rate	1.6 GPM
Maximum Operating Pressure	2,500 PSI
Minimum Operating Pressure	2,500 PSI
Motor Type	None
Outlet Diameter	N/A
Power Type	None
Product Height	6.75 in.
Product Length	20.3 in.
Product Weight	32 lb.
Product Width	9.25 in.
Suction Port	N/A
Valve Inlet Diameter	N/A
Valve Inlet Type	N/A
Valve Outlet Diameter	N/A
Valve Outlet Type	N/A
Voltage	12V
Warranty	1 Year
Manufacturer PartNumber	251001
