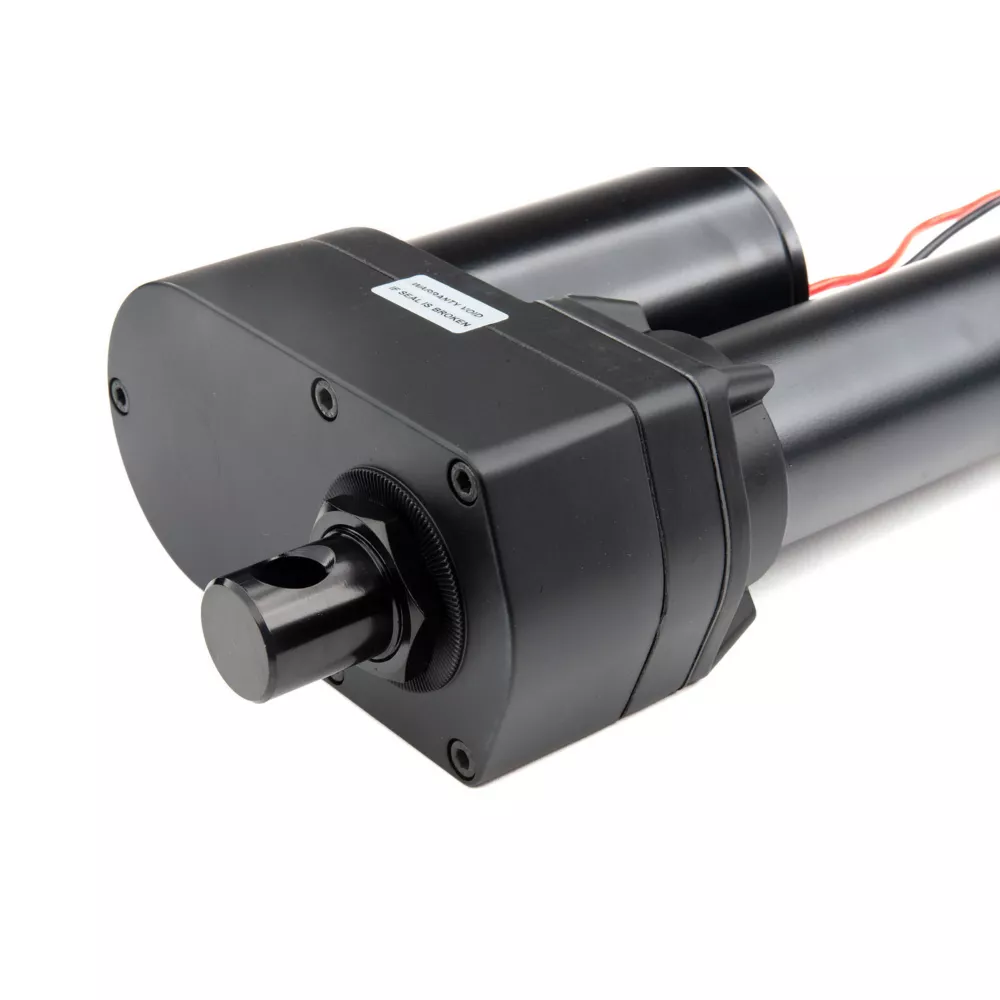

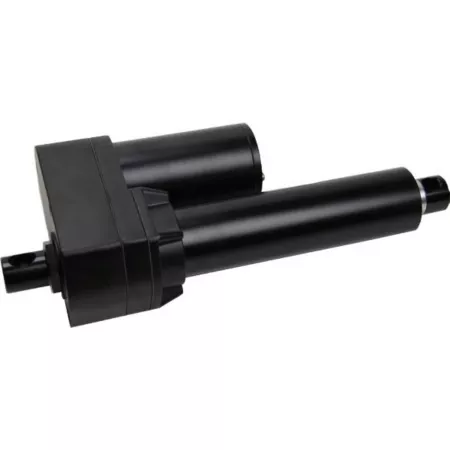

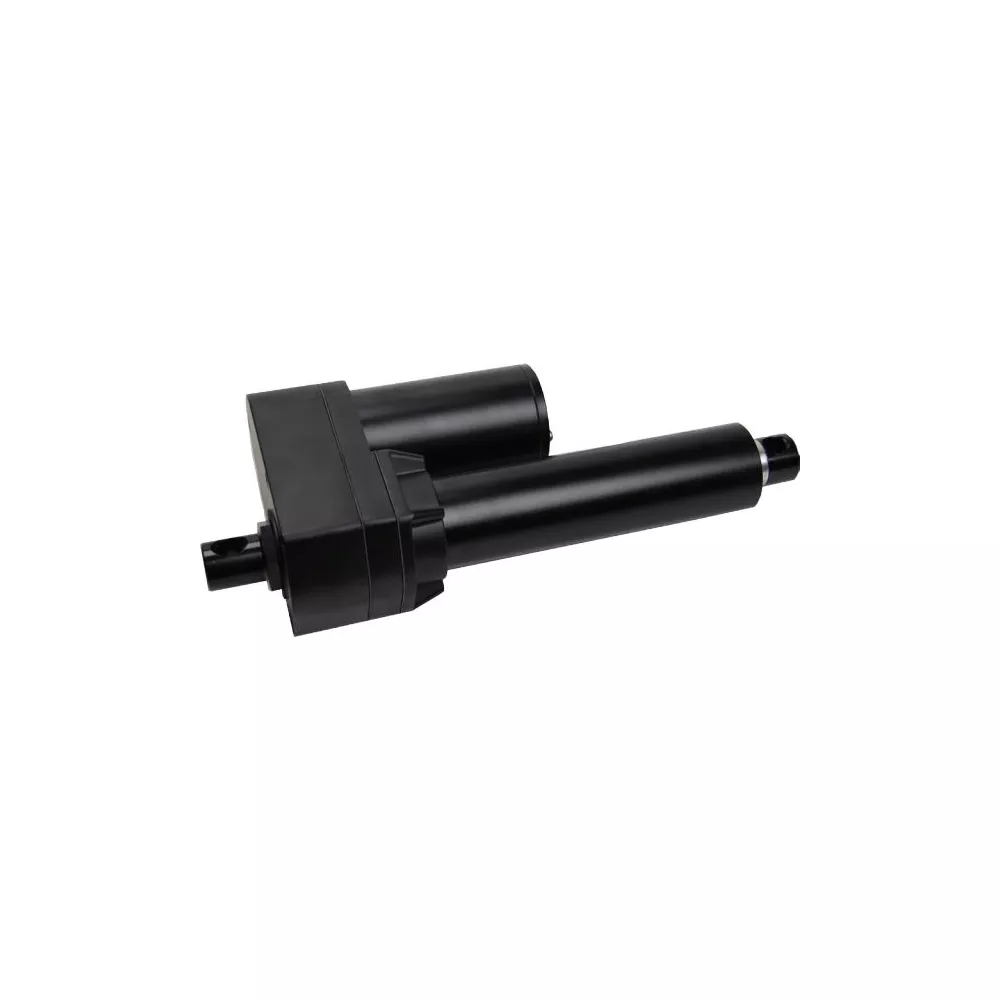

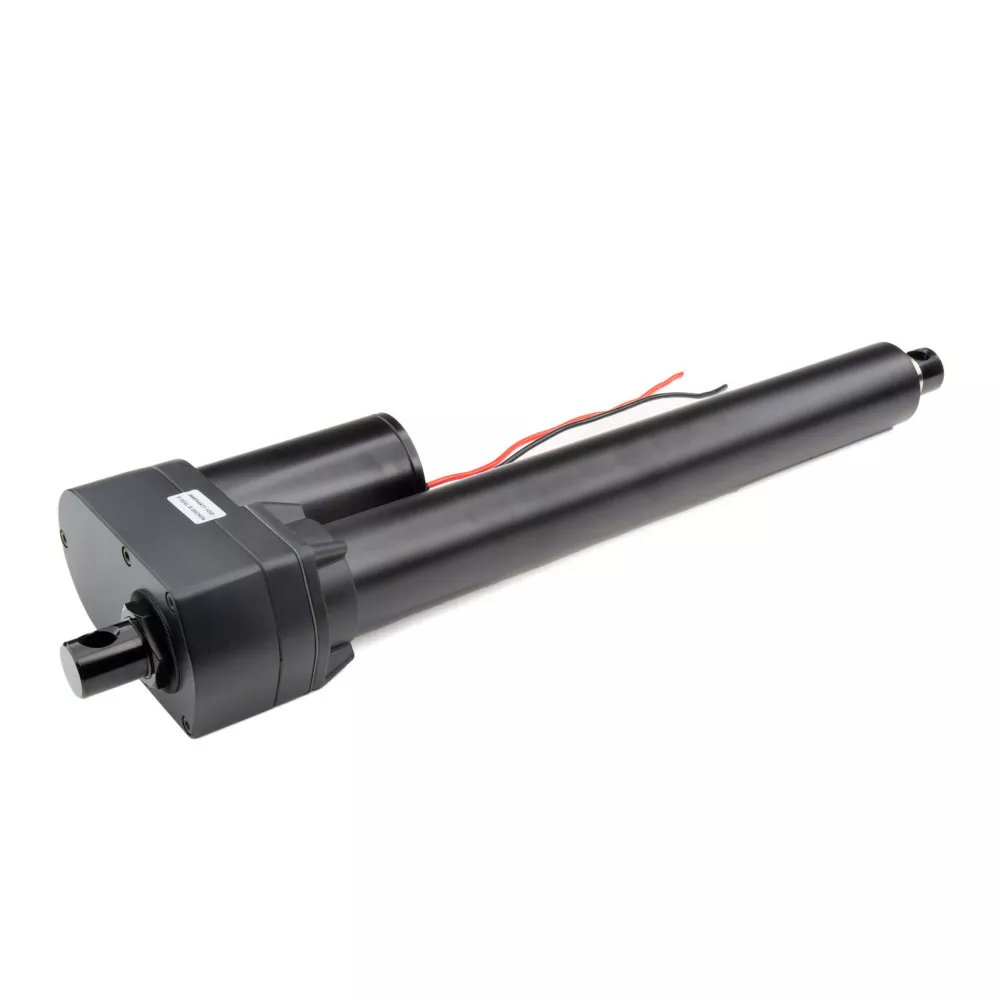

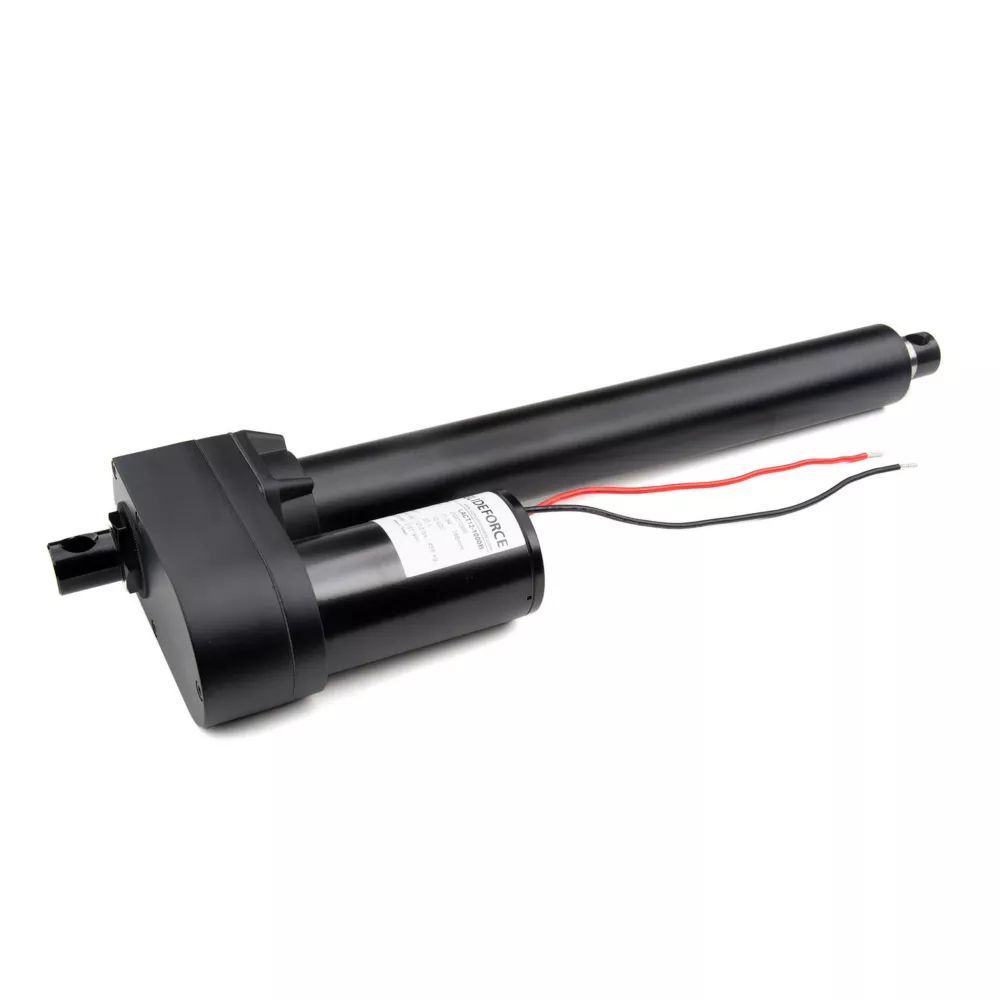

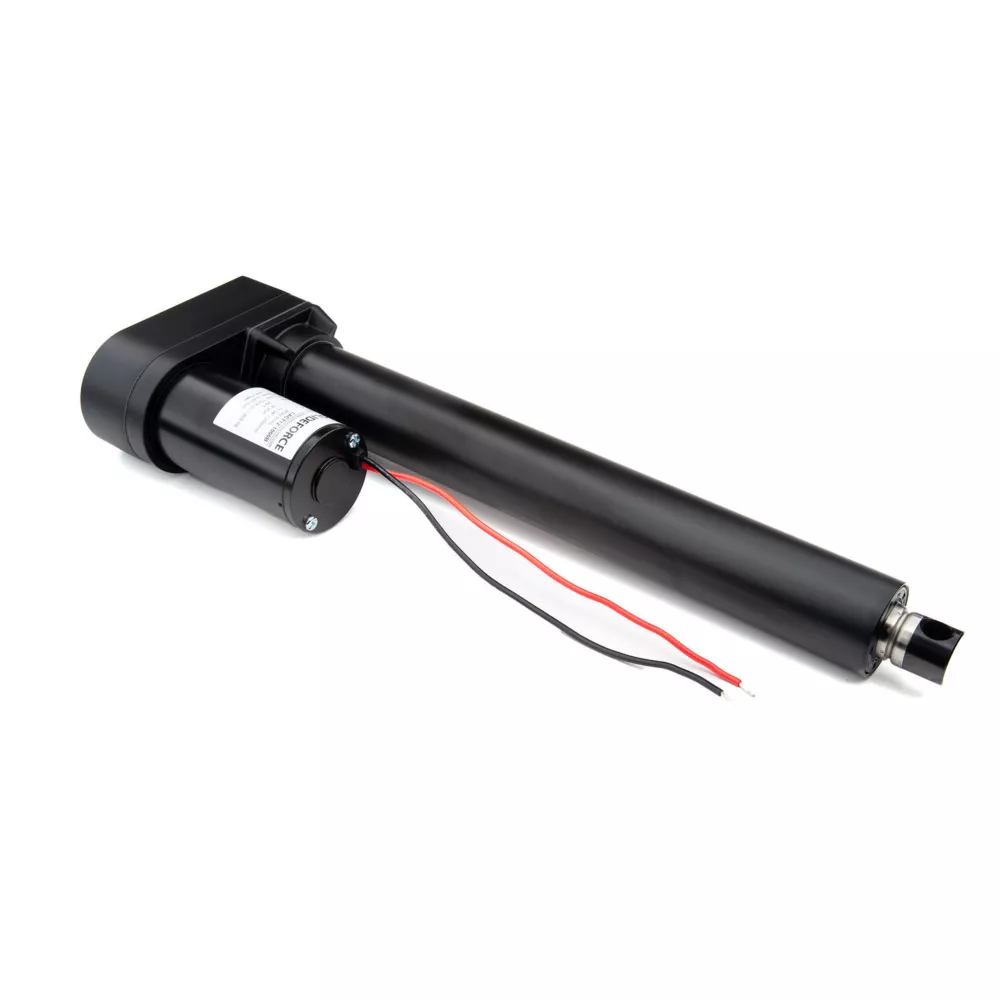

12V DC Concentric Linear Actuator 7.33" Stroke 16.06" Retracted 23.39" Extended Ball Screw Linear Actuators Tractor Repair & Parts
The Concentric 12V DC Linear Actuator is a gear driven drive motor that extends a shaft used primarily to open and close devices in tight or hard-to-reach areas. Their compact design as well as numerous control and mounting options make these water-resistant linear actuators ideally suited for industrial, agricultural, automotive off highway and other applications. The linear actuator's overload clutch stops the shaft when it reaches full extension.- 12VDC linear actuator with a 110 lb. load capacity and a 550 lb. static capacity
- IP graded 63 total dust protection and water-resistance
- Maximum linear actuator load speed of .50 in./sec.
- Overload clutch stops the shaft when the DC linear actuator reaches full extension
- 7.33 in. stroke; 16.06 in. retract; 23.39 in. extend; rod diameter measures 28.6 mm; weighs 12 lb.
- Equipped with a ball screw for convenience
- Extends a shaft used primarily to open and close devices in tight or hard-to-reach areas
- Compact linear actuator design for easy transport and storing
- Numerous control and mounting options for versatility
- Ideally suited for industrial, agricultural, automotive off highway and other applications
- Potentiometer-equipped DC linear actuators
- Optional controller offers the user the flexibility of up to 3 programmable pre-sets
12V DC Concentric Linear Actuator 7.33" Stroke 16.06" Retracted 23.39" Extended Ball Screw Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators
| Specification | Description |
|---|---|
| Brand | Concentric |
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Compatibility | Industrial, agricultural, automotive off highway and other applications |
| Features | Water-Resistant |
| Input Voltage | 12V |
| Maximum Speed | 0.50 in./sec. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Power Source | 12-Volt |
| Product Weight | 12 lb. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 139285 |
