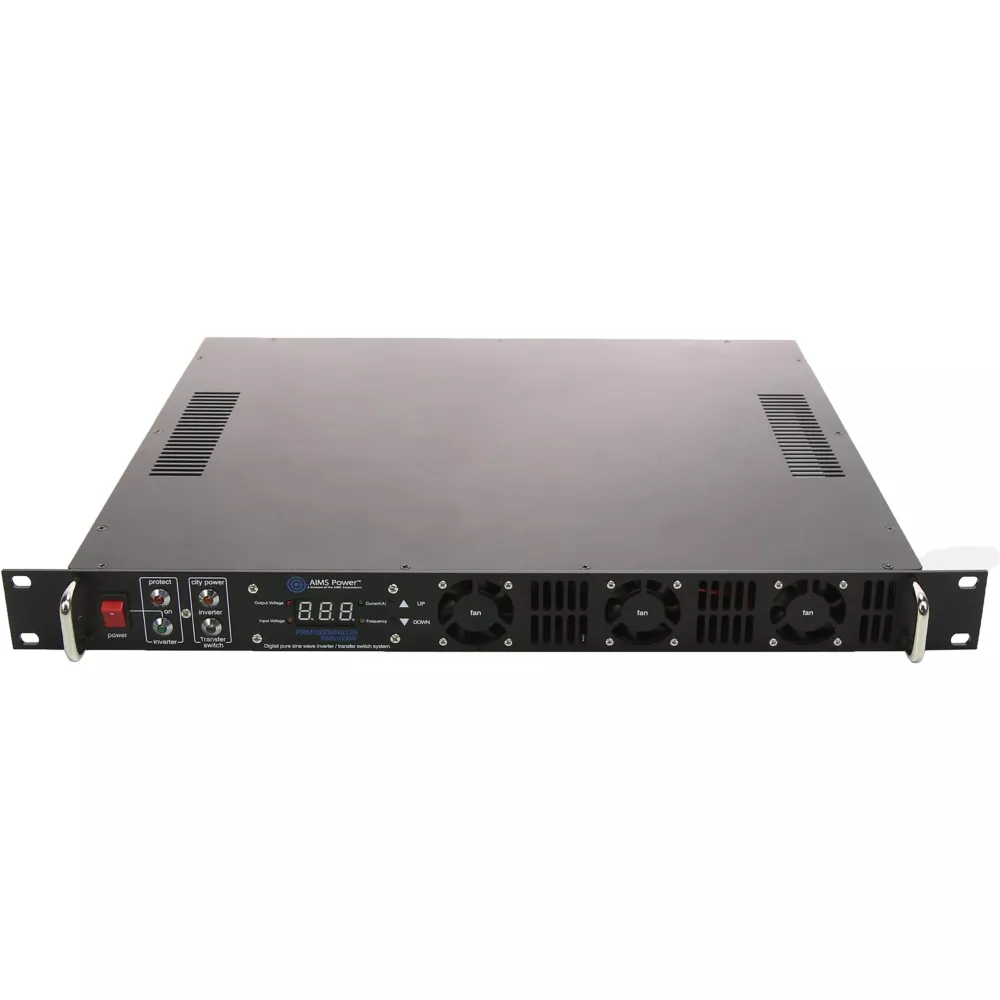

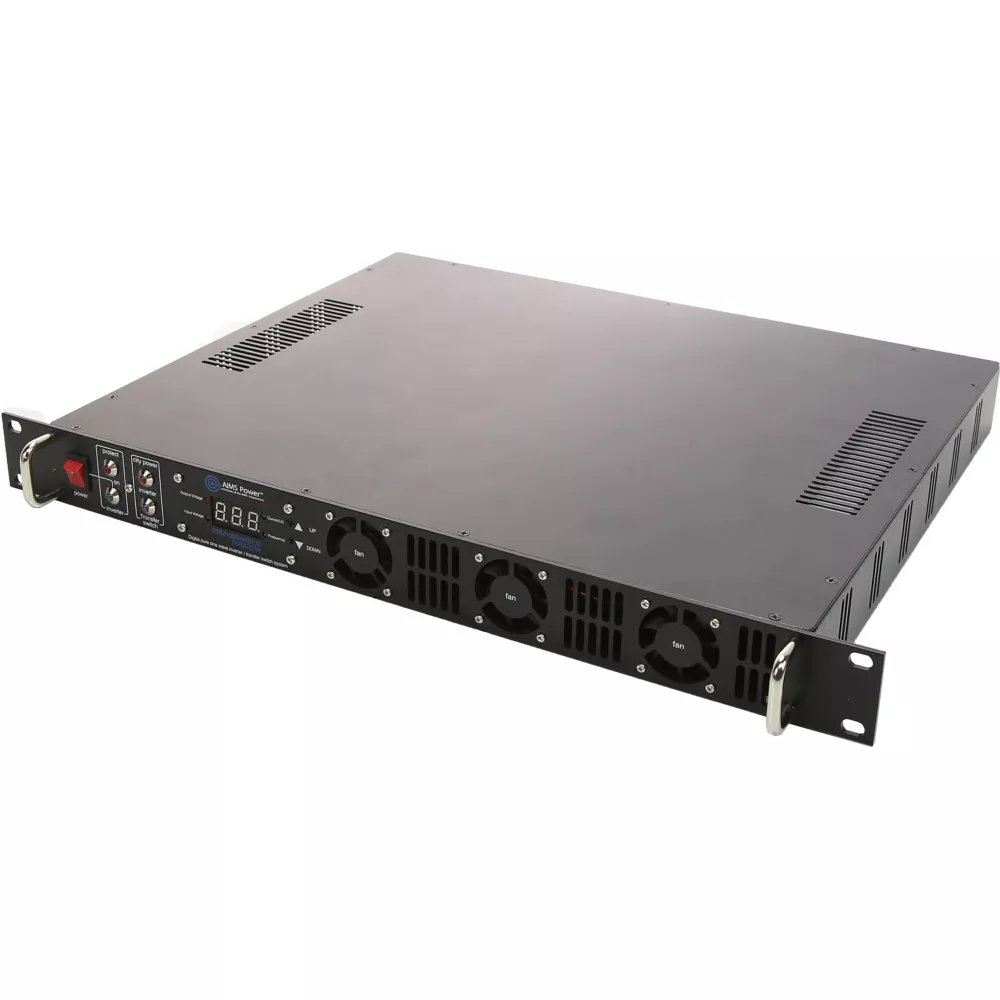

AIMS Power 1000 Watt Rack Mount Inverter 48V to 120V AC Pure Sine Wave Battery Chargers Truck & Automotive

This AIMS Power 1000W 48V Rack Mount Inverter, is ideal for providing backup power to your essential equipment. It will generate 1000W of high quality pure sine power at a stable 120VAC output. Power is maintained to your equipment seamlessly through a built-in 10A transfer switch with a typical transfer time of less than 20ms. The transfer switch will by-pass city/utility power when it is available, and when city/utility power is lost the pure sine inverter will automatically switch to the backup DC power source. In backup mode the inverter will supply power as long as the DC power supply provides enough voltage. Remote monitoring of the AIMS Power inverter is available through an RS232 communication port which affords the user with real-time monitoring of the DC input voltage, AC output voltage, Frequency, and Amps.

FCC class B
RS232 communication port allows the AIMS Power inverter to be monitored from a PC
Digital status toggle display

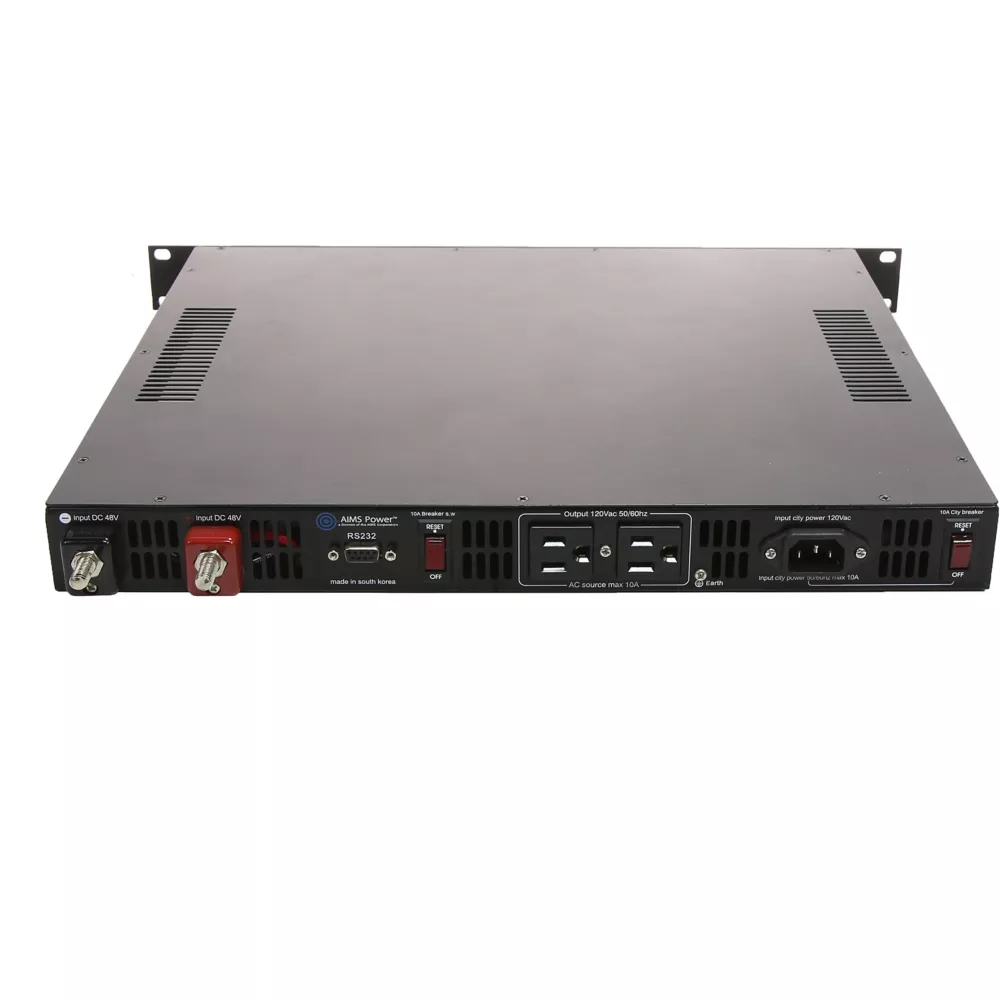

Dual AC receptacles
On/off switch offers easy operation
Utility power bypass
Automatic transfer switch bypasses city/utility power when it is available, and when it is lost switch to the backup DC power source
Over temperature indicator
Overload protection
Low battery voltage warning/shutdown
Overload indicator
Short circuit protection
Thermal and load based fan
AC output short circuit protection
Instruction manual included
Free 1 year tech support
1 year warranty parts and labor
Inverter is not a - 48VDC; To work with - 48 Telecom systems, the inverter must be connected directly to the battery bank or positive 48 VDC system
The pure sine inverter must bypass the power supply
High input voltage protection with automatic shutdown
AIMS Power inverter has a typical transfer time of less than 20ms

AIMS Power 1000 Watt Rack Mount Inverter 48V to 120V AC Pure Sine Wave Battery Chargers Truck & Automotive> Automotive Batteries & Charging> Battery Chargers & Jump Starters> Battery Chargers

Specification	Description
Brand	AIMS Power
Country of Origin	Imported
Amperage	20.83 Amps
Battery Charge Time	0h
Compatible Battery Sizes	48V
Cord Length	0 in.
Features	Continuous output power: 1000 W
Input Voltage	dc input operating voltage 41 to 60 V
Number of Batteries Charged	dc input / operating voltage: 41 to 60 V
Output Current	Output frequency 60 Hz
Output Voltage	120 V ac
Package Quantity	1
Product Height	1.7 in.
Product Length	19 in.
Product Weight	11 lb.
Product Width	14 in.
Vehicle Compatibility	Other
Warranty	1 year
Manufacturer PartNumber	PRM1000W48120S

AIMS Power 1,000 Watt Rack Mount Inverter, 48V to 120VAC, Pure Sine Specifications expand/collapse Specification Description Brand AIMS Wattage Country of Origin Imported Amperage 20.83 Amps Battery Charge Time 0hrs Compatible Battery Sizes 48V Cord Length 0 in. Specifications Continuous output power: 1000 W Input voltage DC input operating voltage 41 to 60 V Number of batteries charged DC input / operating voltage: 41 to 60 V Output current Output frequency 60 Hz Output voltage 120 AC V Package Quantity 1 Product Height 1.7 in. Product length 19 in. Product weight 11 lbs. Product width 14 in. Vehicle Compatibility Other 1 Year Warranty Manufacturer Part Number PRM1000W48120S
