ARO 1500 Series Piggyback Air Compressor Filter/Regulator Poly Bowl Filters Regulators & Lubricators Air Compressor Accessories & Parts

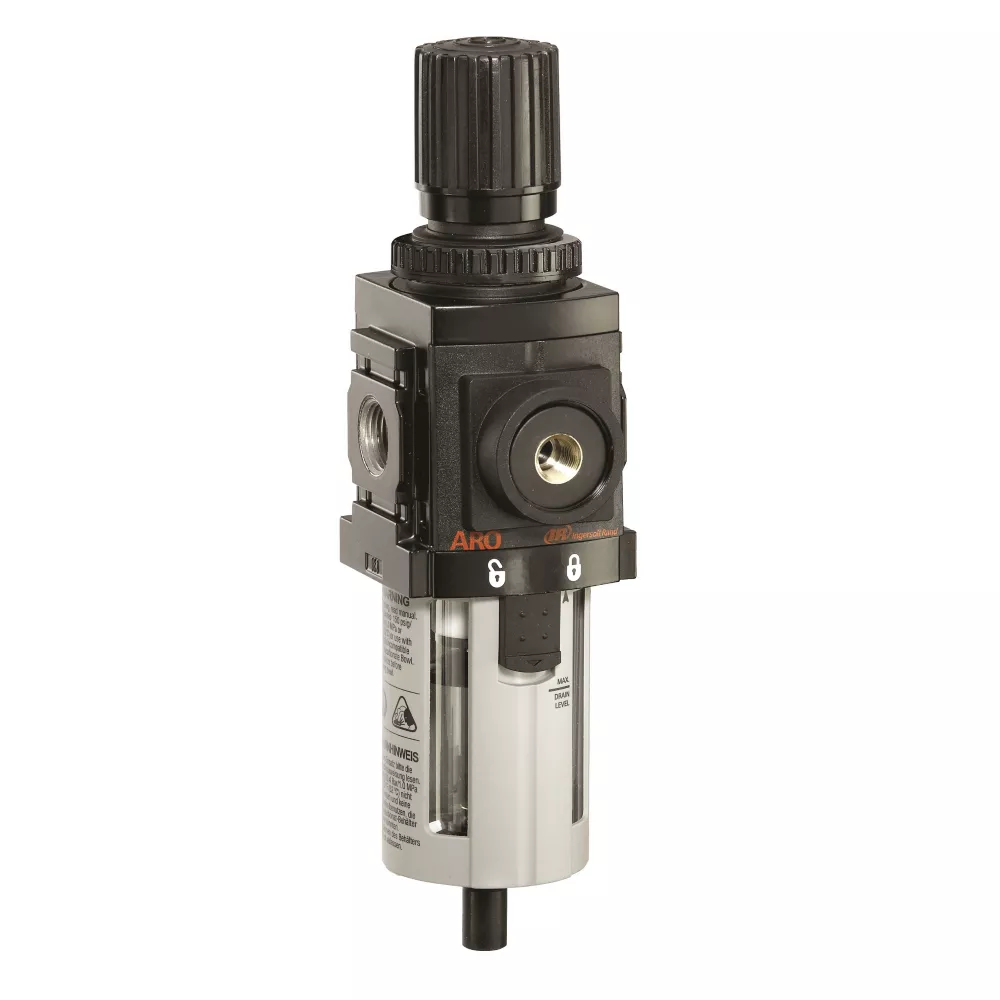

The ARO 1500 Series Piggyback Air Compressor Filter/Regulator combines the functions of both a filter and regulator. The air compressor filters are compact and most effective when space is a constraint, and can be ordered with different filter elements. This air compressor regulator can also be modified with different springs, depending on the filtration and air regulating requirements.

Combines the functions of both an air compressor filter and regulator
Compact and most effective when space is a constraint
Air compressor regulator can be ordered with different filter elements
Can be modified with different springs, depending on the filtration and air regulating requirements

ARO 1500 Series Piggyback Air Compressor Filter/Regulator Poly Bowl Filters Regulators & Lubricators Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Filters, Regulators & Lubricators

Specification	Description
Brand	ARO
Country of Origin	Imported
Inlet Diameter	1/4 in. NPT
Inlet Type	NPT
Maximum Operating Pressure	150 PSI
Minimum Operating Pressure	0 PSIG
Operating Pressure Range	0-140 PSIG
Outlet Diameter	0.25 in.
Outlet Type	NPT
Product Height	8.15 in.
Product Length	2.2 in.
Product Weight	1.09 lb.
Product Width	3.28 in.
Warranty	2 Year
Manufacturer PartNumber	P39223-100

ARO 1500 Series Piggyback Air Compressor Filter/Regulator, Poly Bowl Specifications expand/collapse Specification Description Brand ARO Country of Origin Imported Inlet Diameter 1/4 in. NPT Inlet Type NPT Maximum Operating Pressure 150 PSI Minimum Operating Pressure 0 PSIG Operating Pressure Range 0-140 PSIG Outlet Diameter 0.25 in. Outlet Type NPT Product Height Product Length 2.2 in. Product weight 1.09 lbs. Product width 3.28 in. 2 year warranty Manufacturer part number P39223-100
