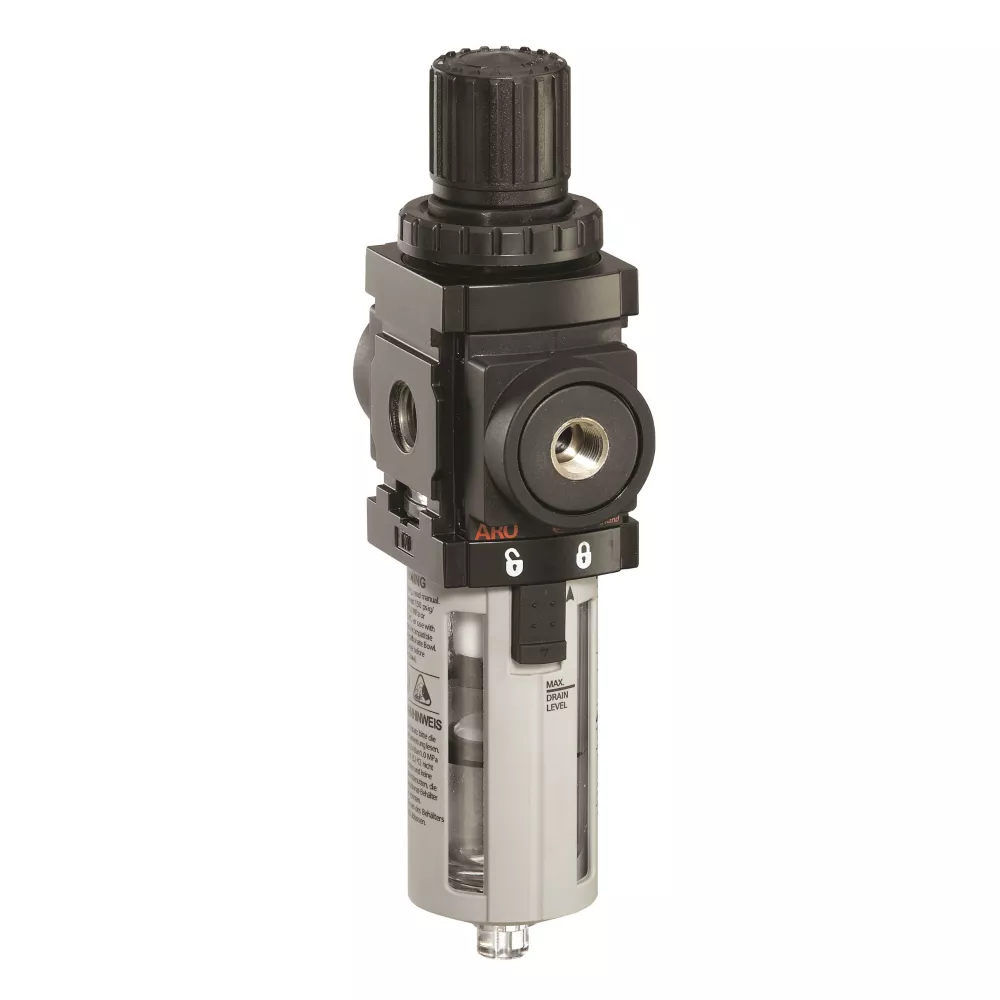

ARO Piggyback 1000 Series Air Compressor Filter/Regulator 1/4 in NPT Poly Bowl 0-30 PSI Filters Regulators & Lubricators Air Compressor Accessories & Parts

The ARO 1000 Series Piggyback Air Compressor Filter/Regulator combines the functions of both a filter and regulator. The air compressor filters are compact and most effective when space is a constraint, and can be ordered with different filter elements. This air compressor regulator can also be modified with different springs, depending on the filtration and air regulating requirements.

Combines the functions of both an air compressor filter and regulator
Compact and most effective when space is a constraint
Can be ordered with different filter elements
Can be modified with different springs, depending on the filtration and air regulating requirements
Polycarbonate bowl for durability
Equipped with a 1/4 in. NPT port
Air compressor regulator is designed to handle 0-30 PSI

ARO Piggyback 1000 Series Air Compressor Filter/Regulator 1/4 in NPT Poly Bowl 0-30 PSI Filters Regulators & Lubricators Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Filters, Regulators & Lubricators

Specification	Description
Brand	ARO
Country of Origin	Imported
Inlet Diameter	1/4 in. NPT
Inlet Size	1/4 in.
Inlet Type	NPT
Maximum Operating Pressure	150 PSI
Minimum Operating Pressure	0 PSIG
Operating Pressure Range	0-30 PSI
Outlet Diameter	0.25 in.
Outlet Type	NPT
Product Height	3.3 in.
Product Length	7.3 in.
Product Weight	0.65 lb.
Product Width	2.2 in.
Warranty	2 Year
Manufacturer PartNumber	P39124-404

ARO 1000 Series Piggyback Air Compressor Filter/Regulator, 1/4 in. NPT, Poly Bowl, 0-30 PSI Specifications expand/collapse Specification Description Brand ARO Country of Origin Imported Inlet Diameter 1/4 in. NPT Inlet Size 1/4 in. Inlet Type NPT Maximum Operating Pressure 150 PSI Minimum Operating Pressure 0 PSIG Operating Pressure Range 0-30 PSI Outlet Diameter 0.25 in. Outlet Type NPT Product Height 3.3 in. Product length 7.3 in. Product weight 0.65 lbs. Product width 2.2 in. 2 year warranty Manufacturer part number P39124-404
