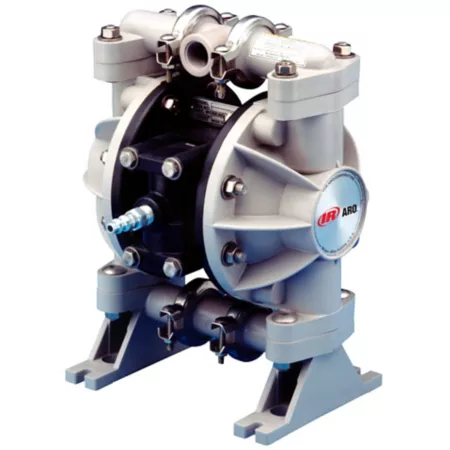

ARO Polypropylene Pneumatic Diaphragm Pump 14.4 GPM 666053-344 Utility Pumps Farm & Ranch

All ARO pumps are available with convoluted diaphragms offering long lasting life and reduced maintenance.

Part of our Compact Series of pumps, our 1/2 compact pumps feature big performance in a small package. with flow rates up to 14.4 GPM (54.5 LPM) and a wide range of material and porting configurations.

ARO Polypropylene Pneumatic Diaphragm Pump 14.4 GPM 666053-344 Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	ARO
Country of Origin	Imported
Amperage	N/A
Body Material	Polypropylene
Compatible Pipe Material	Universal, Other
Discharge Connection	Threaded Female
Discharge Diameter	1/2 in.
Discharge Rate at 0 ft.	13 GPM
Discharge Rate at 10 ft.	13 GPM
Engine Displacement	0.04 gal.
Features	Self Priming
Horsepower	N/A
Hose Diameter	0.5 in.
Impeller Material	N/A
Inlet Connection	Threaded Female
Inlet Diameter	0.5 in.
Maximum Flow Rate	13 GPM
Maximum Head Lift	230 ft.
Maximum Operating Pressure	100 PSI.
Maximum Operating Temperature	175 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	100 PSI
Minimum Operating Temperature	40 deg. F
Power Type	Air operated
Product Height	7.48 in.
Product Length	14.17 in.
Product Weight	9.52 lb.
Product Width	11.61 in.
Motor Type	Pneumatic
Utility Pump Type	Diaphragm
Voltage	N/A
Warranty	5 Year
Manufacturer PartNumber	666053-344

ARO Air-Operated Polypropylene Diaphragm Pump, 14.4 GPM, 666053-344 Specifications expand/collapse Specification Description Brand ARO Country of Origin Imported Amperage N/A Body Material Polypropylene Compatible Hose Material Universal, Other Discharge Fitting Female Threaded Discharge Diameter 1/2 in. Discharge flow at 0 ft. 13 GPM Discharge rate at 10 ft. Engine displacement 13 GPM 0.04 gal. Features Self-Priming Power N/A Hose Diameter 0.5 in. Impeller Material N/A Inlet Connection Female Threaded Inlet Diameter 0.5 in. Maximum flow 13 GPM Maximum head lift 230 feet. Maximum operating pressure 100 PSI. Maximum operating temperature 175 degrees. F Maximum suction height 15 feet. Minimum operating pressure 100 PSI Minimum operating temperature 40 deg. F Power Type Pneumatic Control Product Height 7.48 in. Product Length 14.17 in. Product Weight 9.52 lb. Product Width 11.61 in. Motor Type Utility Pump Type Pneumatic Voltage tomembrane N/A 5 year warranty Manufacturer part number 666053-344
