Bailey Hydraulics 3 625 PSI D75 Directional Control Valve 1 Spool 4 Way 3 Position SAE 10 Inlet/SAE 8 Working Port Hydraulic Valves & Manifolds Tractor Repair & Parts

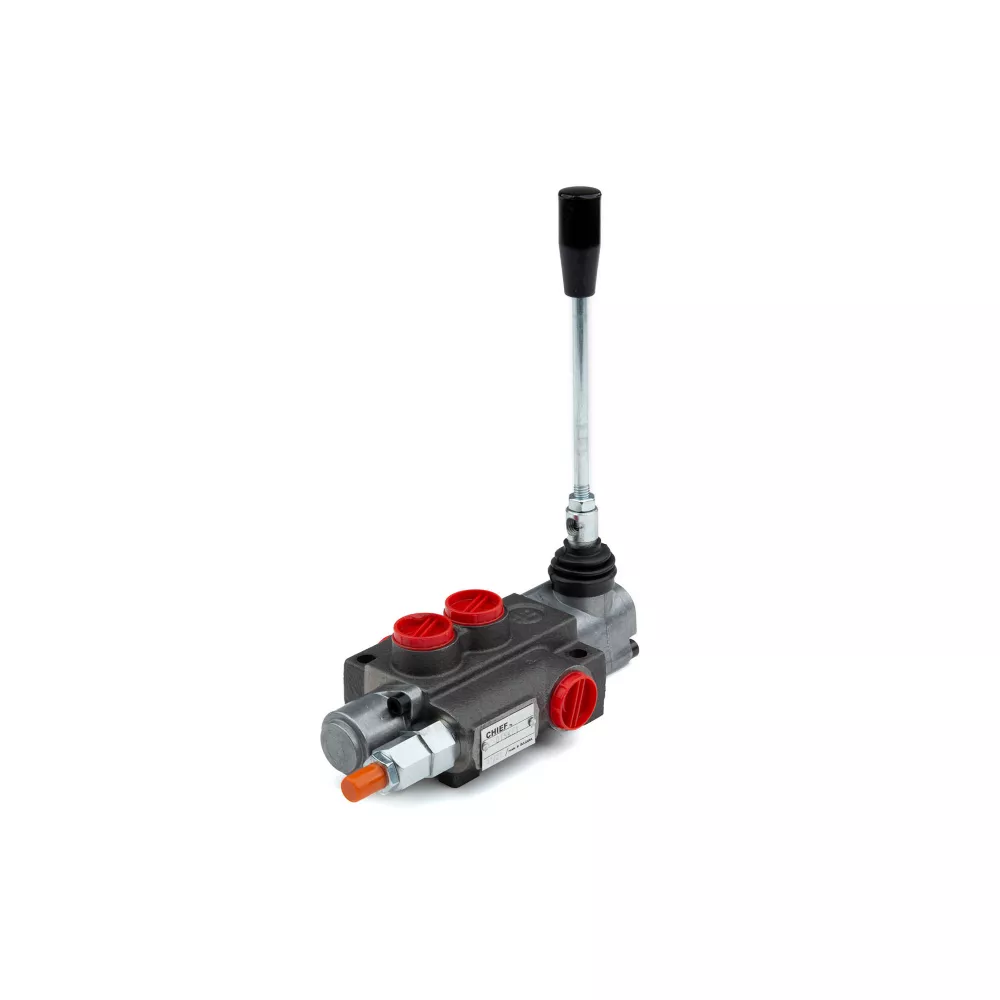

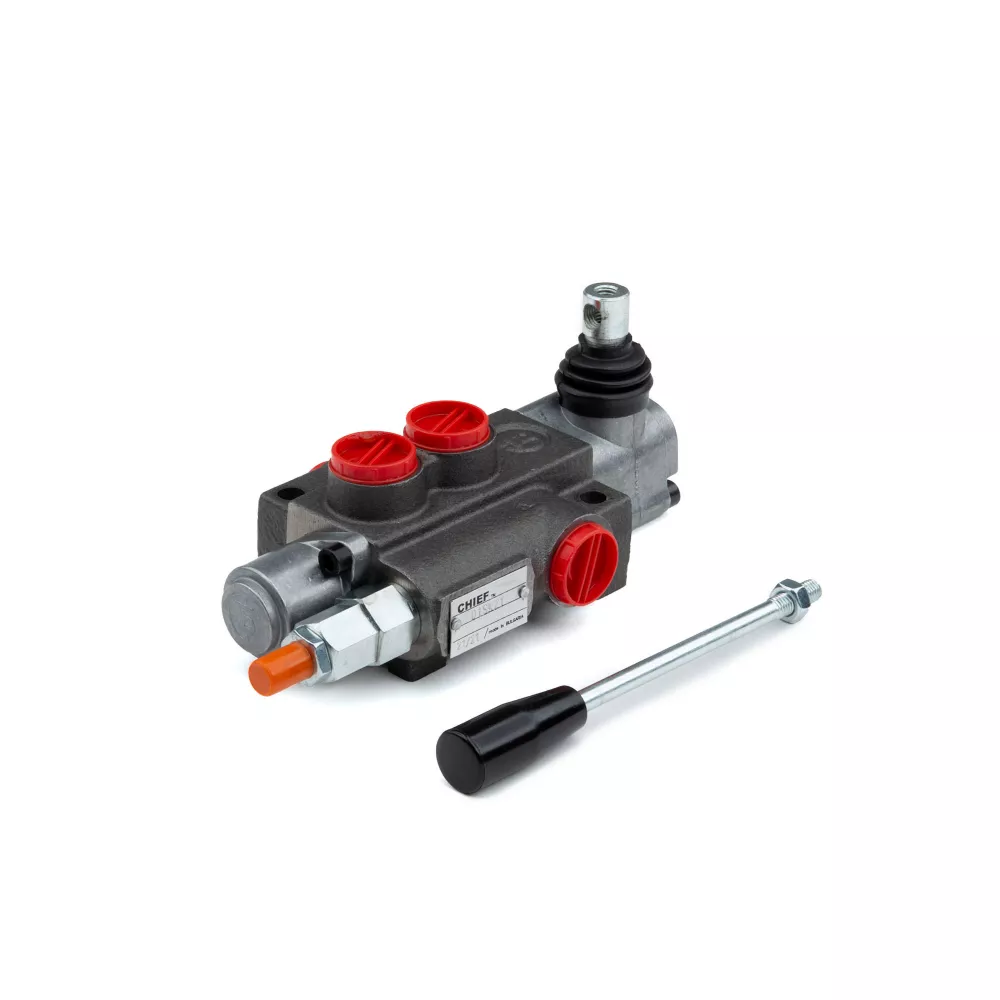

The Bailey Hydraulics 3,625 PSI D75 Directional Control Valve features a European design with cast iron construction. It comes with an anti-drop load check on each spool. The valve provides adjustable relief up to 3,625 PSI. Complete handle assembly makes this valve easy to install. Power beyond or closed center are available. See accessories for power beyond plug or closed center conversion plug.

Made in the USA
Universal compatibility provides convenience
Cast iron construction offers durability

Bailey Hydraulics 3 625 PSI D75 Directional Control Valve 1 Spool 4 Way 3 Position SAE 10 Inlet/SAE 8 Working Port Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Bailey Hydraulics
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	10 SAE
Inlet Type	Female
Maximum Flow Rate	21 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most application
Number Of Directional Control Positions	3
Outlet Size	10 SAE
Outlet Type	SAE
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	6 lb.
Product Width	N/A
Manufacturer PartNumber	220815

Bailey Hydraulics 3,625 PSI D75 Directional Control Valve, 1 Spool, 4 Way 3 Pos, SAE 10 Inlet/SAE 8 Work Ports Specifications Expand/Collapse Specification Description Brand Bailey Hydraulics Country of Origin Made in USA Brand Compatibility Universal Compatibility Most Applications Inlet Size 10 Inlet Type SAE Female Maximum Flow 21 GPM Maximum PSI 3,625 PSI Compatibility Model Most Applications Number of Directional Control Positions 3 Outlet Size 10 Outlet Type SAE Main Material SAE Cast Iron Product Height N/A Product Length N/A Product Weight 6 lbs Product Width N/A Part Number from manufacturer 220815
