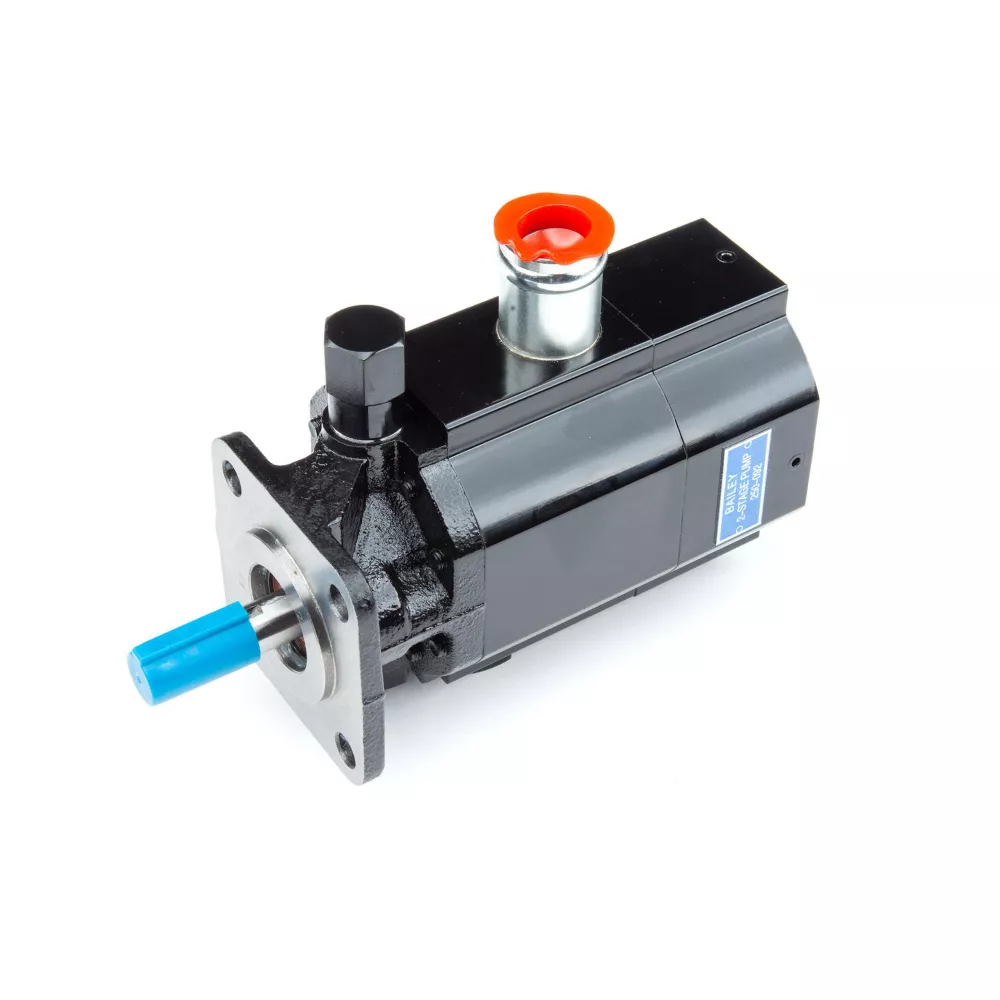

Bailey Hydraulics Chief Two-Stage Pump 13 GPM Maximum 7 HP Inlet 1 in Tube Inlet 1/2 x 1 1/2 Shaft Pump Parts & Accessories Farm & Ranch

The Bailey Hydraulics Chief 2-Stage Hydraulic Pump is designed for use at elevated pressures. This 2-stage hydraulic pump is ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to horsepower limitations or safety constraints. Clockwise viewed from the shaft end, the 1/2 in. shafts on the hydraulic pump use a 404 wood ruff key; 5/8 in. shafts use 3/16 in. 3,600 RPM maximum. The maximum pressure is 3,045 PSI for powerful use.

11.7/2.9 GPM (85% efficiency)
2-stage hydraulic pump has unloading at 652 PSI
Maximum pressure of 3,045; 3,600 RPM
Pressure port size measures 1/2 in. NPT
Designed for use at elevated pressures
Ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to horsepower limitations or safety constraints
Clockwise viewed from the shaft end
1/2 in. hydraulic pump shafts use a 404 wood ruff key

Bailey Hydraulics Chief Two-Stage Pump 13 GPM Maximum 7 HP Inlet 1 in Tube Inlet 1/2 x 1 1/2 Shaft Pump Parts & Accessories Farm & Ranch> Tanks & Pumps> Pump Parts & Accessories

Specification	Description
Brand	Bailey Hydraulics
Country of Origin	Imported
Compatibility	Most application
Package Quantity	1
Primary Color	Black
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	6 lb.
Product Width	Not Defined
Pump Accessory Type	Pumps
Manufacturer PartNumber	250093

Bailey Hydraulics Chief Two Stage Pump, 13 GPM Max, 7 HP Input, 1 in. Tube Inlet, 1/2 x 1 1/2 Shaft Specifications expand/collapse Specification Description Brand Bailey Hydraulics Country of Origin Imported Compatibility Most Applications Package Quantity 1 Primary Color Black Primary Material Steel Product Height N/A Product Length N/A Product Weight 6 lbs. Product Width Not Defined Pump Accessory Type Pump Manufacturer Part Number 250093
