Bailey Hydraulics Chief Two-Stage Pump 9 GPM Maximum 5 HP Inlet 1/2 in NPT Inlet 1/2 x 1 1/2 Shaft Pump Parts & Accessories

Bailey Hydraulics Chief Two-Stage Pump 9 GPM Maximum 5 HP Inlet 1/2 in NPT Inlet 1/2 x 1 1/2 Shaft Pump Parts & Accessories Farm & Ranch

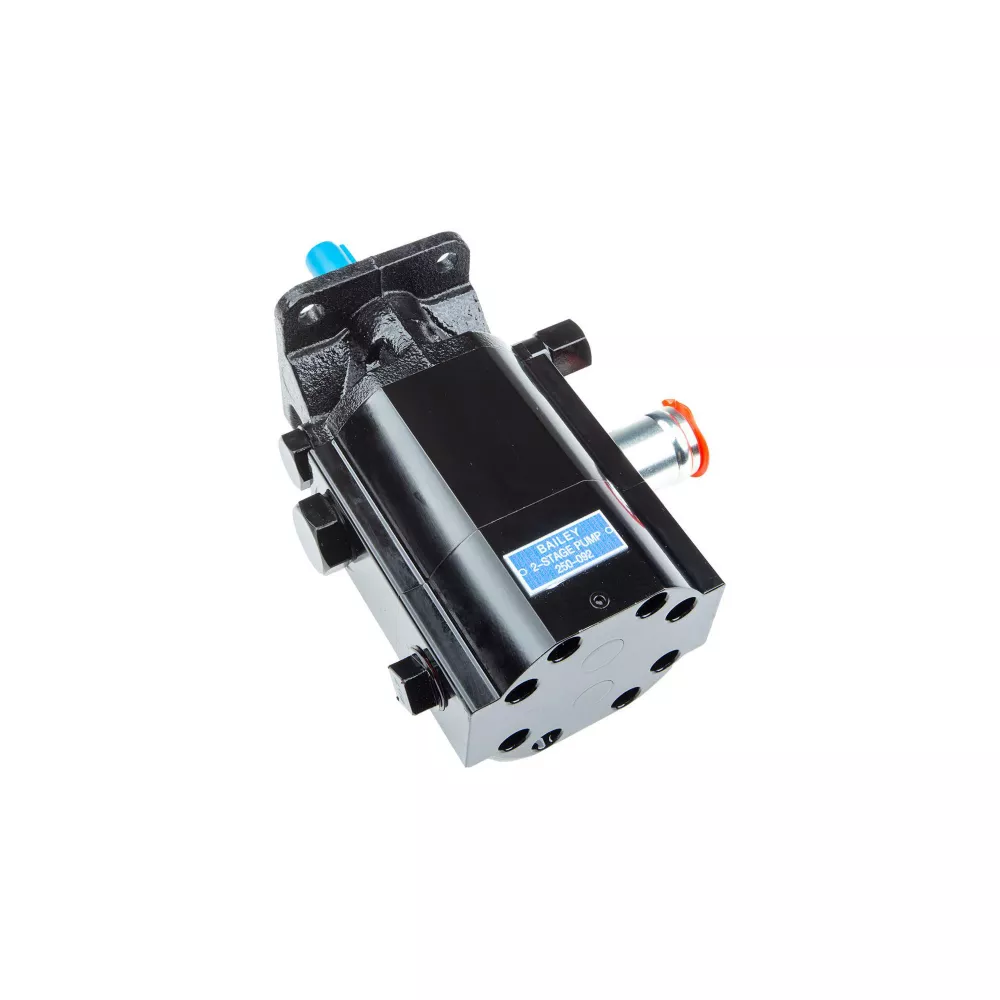

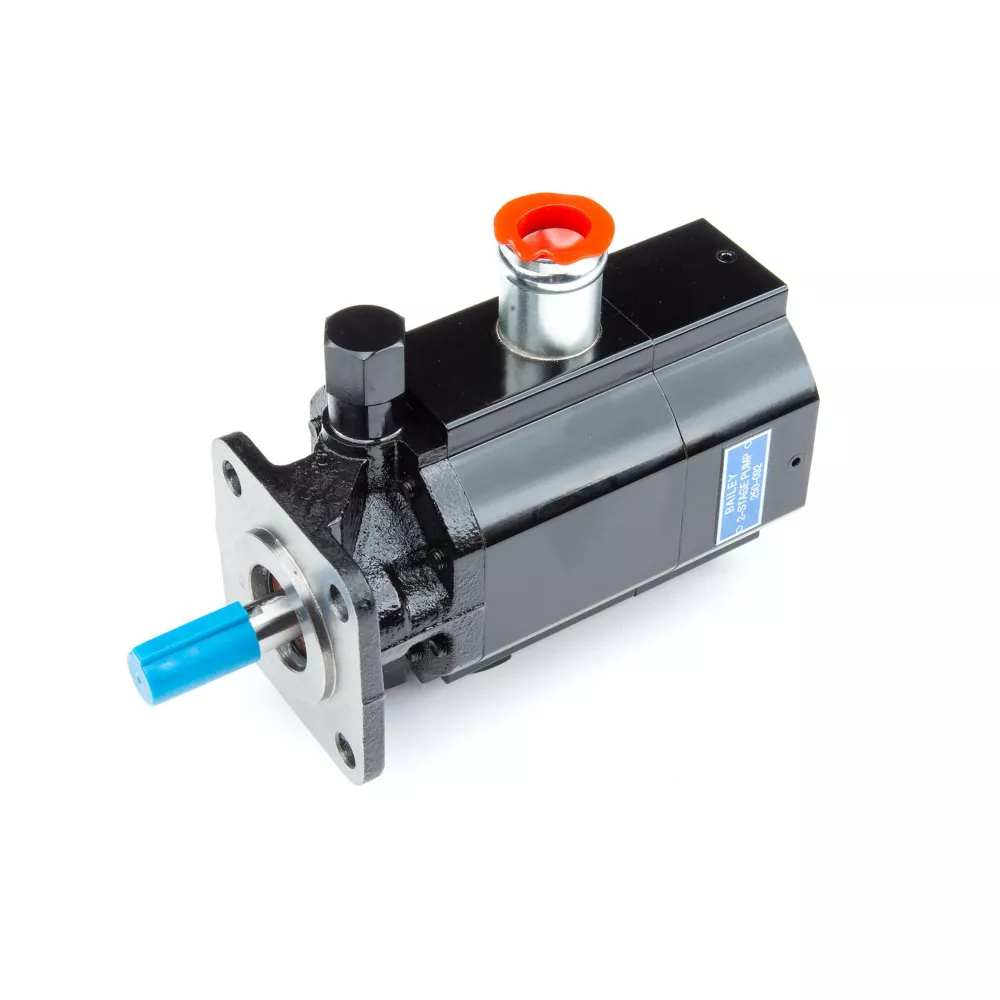

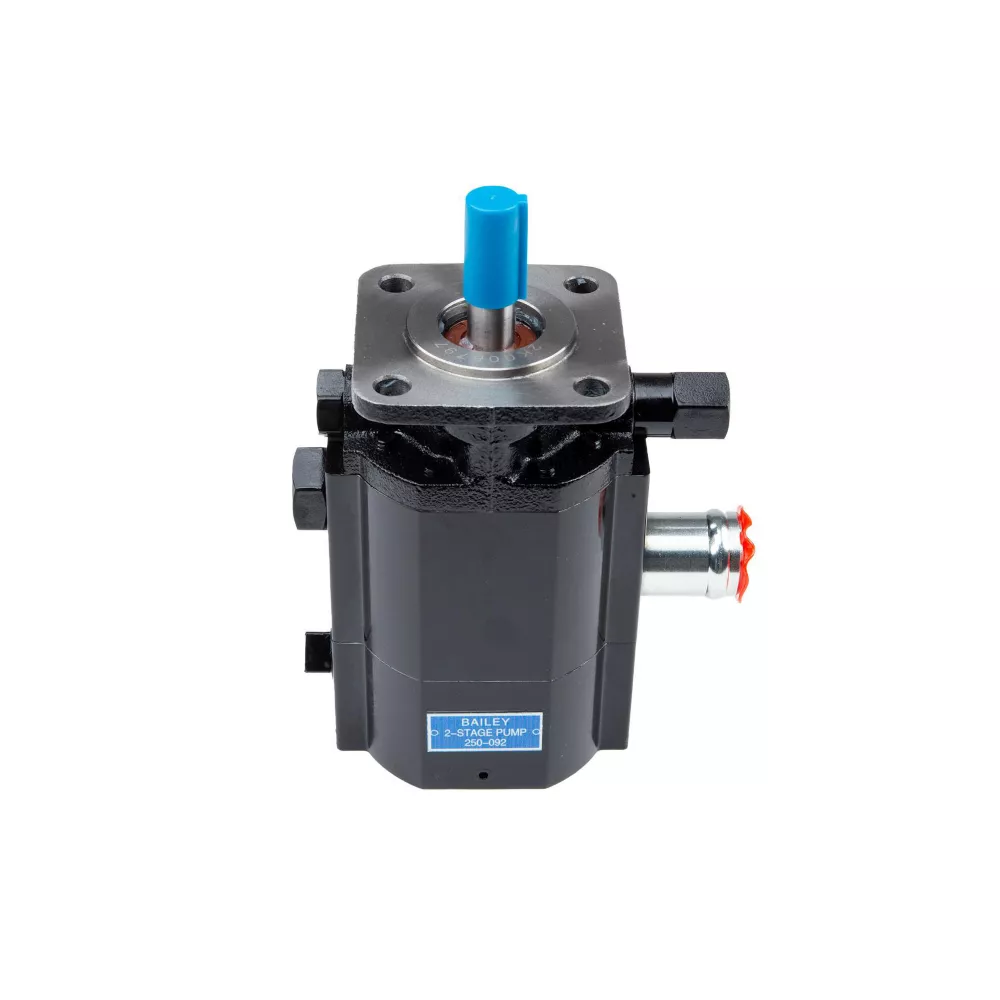

The Bailey Hydraulics Chief 2-Stage Gear Pump is a compact, 2-stage and external gear pump designed for use at elevated pressures. This 2-stage gear pump is ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to horsepower limitations or safety constraints. Designed to be clockwise viewed from the shaft end, the 1/2 in. shafts on the gear pump use a 404 wood ruff key, while the 5/8 in. shafts use 3/16 in. 3,600 RPM maximum.

• Delivers 9 GPM maximum with 5 HP input
• 1/2 in. NPT inlet and 1/2 x 1-1/2 shaft on the 2-stage gear pump
• Designed for use at elevated pressures
• Designed as a compact, 2-stage and external gear pump
• Ideal for press-type applications requiring fast approach/retract speeds and slower peak actuator work speeds due to HP limitations or safety constraints
• Gear pump is clockwise viewed from the shaft end for convenience
• 1/2 in. shafts use a 404 wood ruff key; 5/8 in. shafts use 3/16 in. 3,600 RPM maximum
• Delivers a maximum pressure of 3,045 PSI for powerful use

Bailey Hydraulics Chief Two-Stage Pump 9 GPM Maximum 5 HP Inlet 1/2 in NPT Inlet 1/2 x 1 1/2 Shaft Pump Parts & Accessories Farm & Ranch> Tanks & Pumps> Pump Parts & Accessories

Specification	Description
Brand	Bailey Hydraulics
Country of Origin	Imported
Compatibility	Most application
Package Quantity	1
Primary Color	Black
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	6 lb.
Product Width	Not Defined
Pump Accessory Type	Pumps
Manufacturer PartNumber	250097

Bailey Hydraulics Chief Two Stage Pump, 9 GPM Max, 5 HP Input, 1/2 in. NPT Inlet, 1/2 x 1 1/2 Shaft Specifications expand/collapse Specification Description Brand Bailey Hydraulics Country of Origin Imported Compatibility Most Applications Package Quantity 1 Main Color Black Main Material Cast Iron Product Height N/A Product Length N/A Product Weight 6 lbs. Product Width Not Defined Pump Accessory Type Pump Manufacturer Part Number 250097
