Chief 2 in Bore x 10 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

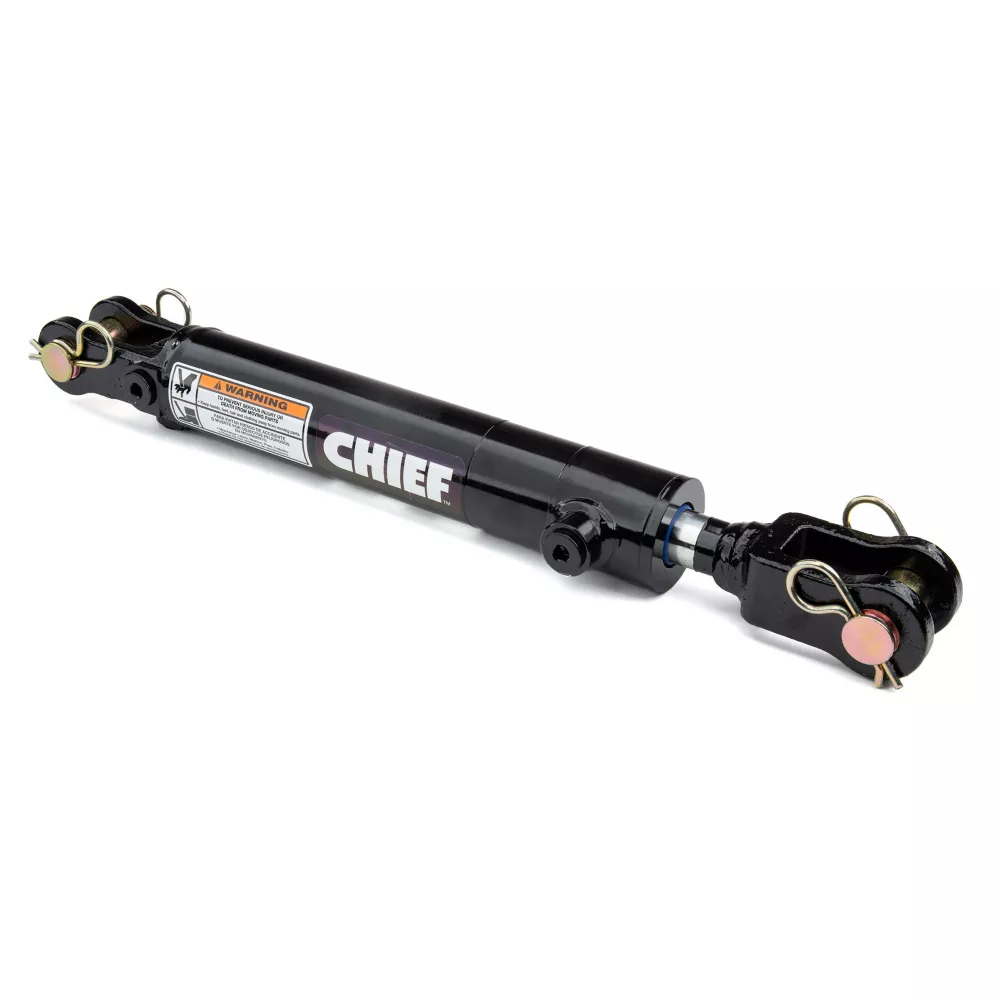

The Chief 2 in. Bore x 10 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before being sold, the hydraulic cylinder undergoes rigorous testing to ensure maximum reliability and performance.

Rugged ductile iron welded clevis design for durability
Welded hydraulic cylinder with standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston ensures smooth operation
Gloss black paint finish
Ideal as single acting hydraulic cylinder or double acting hydraulic cylinder
Measures 20.25 in. retracted and 30.25 in. extended
Column load: 9,420 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
1 year warranty
Maximum PSI: 3,000 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 2 in Bore x 10 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	30.25 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	14.8 lb.
Product Width	N/A
Retracted Length	20.25 in.
Rod Diameter	1.125 in.
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	297072
