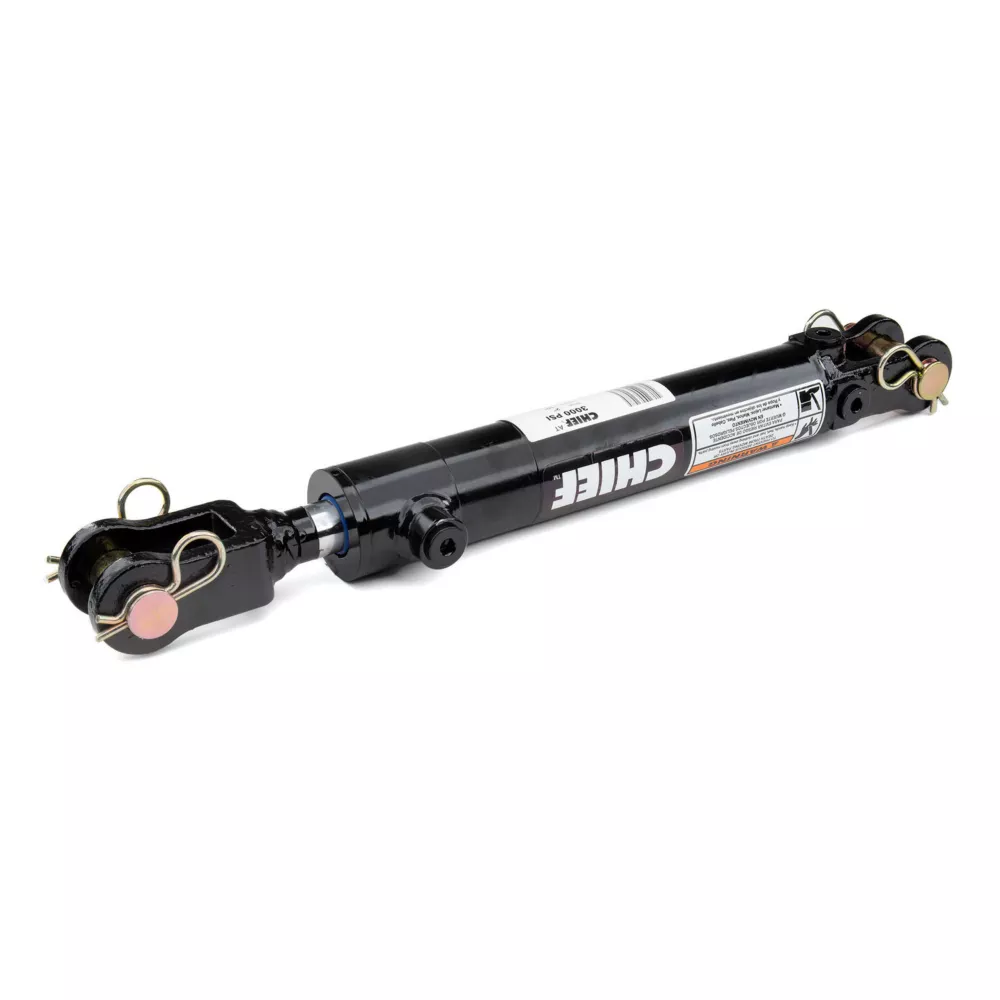

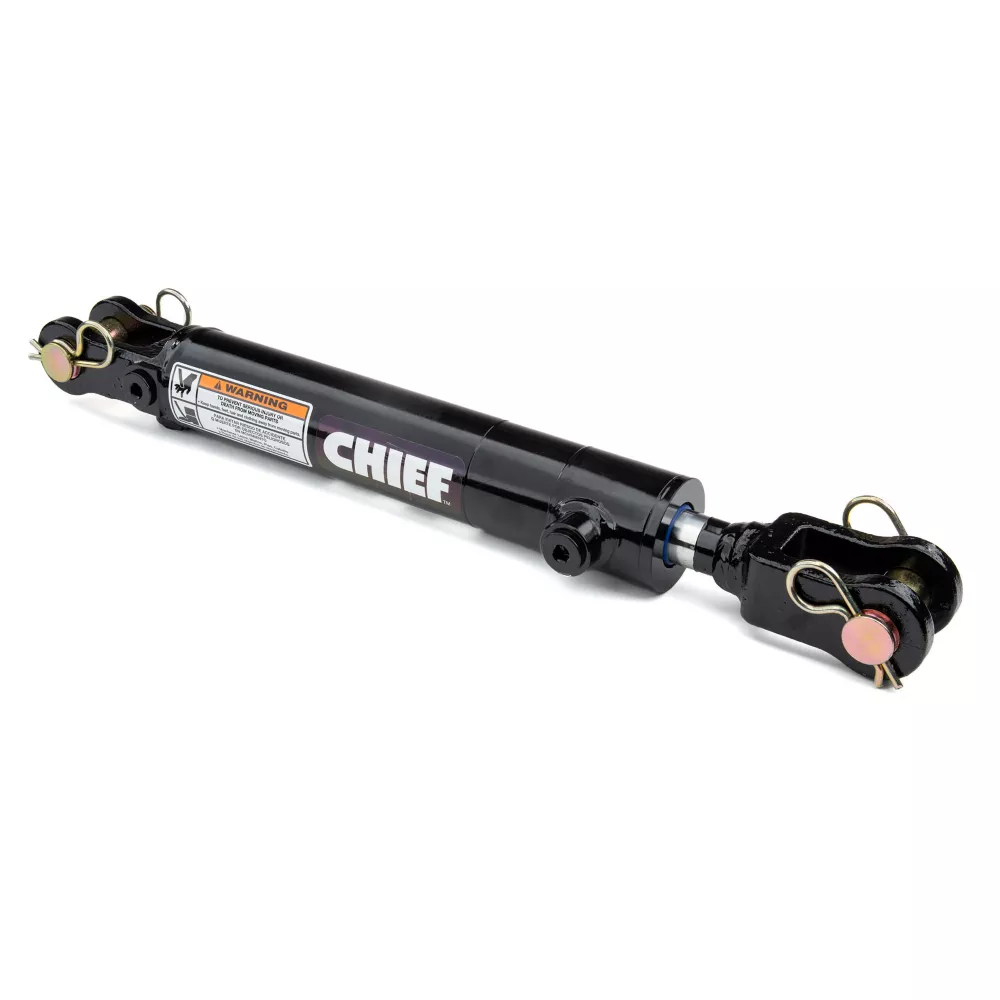

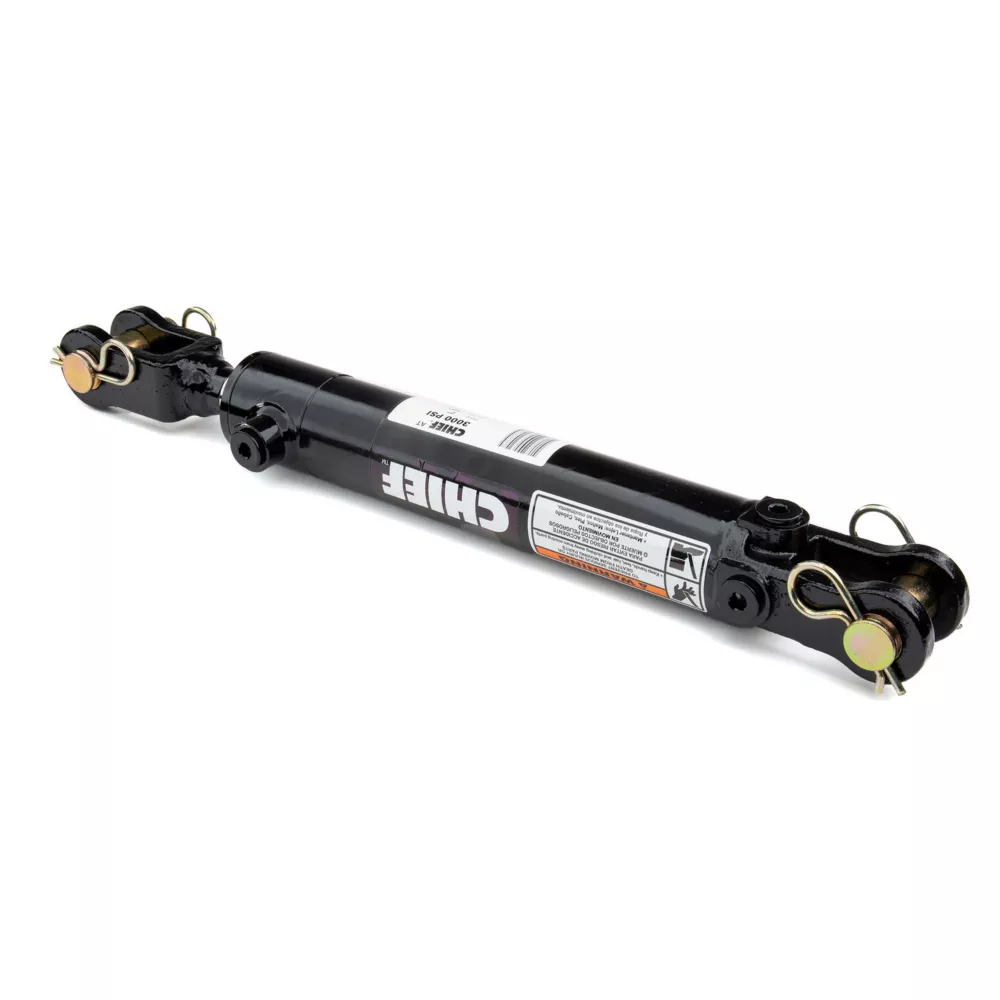

Chief 2 in Bore x 12 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 2 in. Bore x 12 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the seals. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing to ensure maximum reliability and performance.

Welded hydraulic cylinder with a rugged ductile iron welded clevis design
Uses standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for an efficient hydraulic cylinder
Gloss black paint finish

Chief 2 in Bore x 12 in Stroke AT Tie Rod Cylinder Alternative 1.125 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	12 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	16.1 lb.
Product Width	N/A
Retracted Length	22.25 in.
Rod Diameter	1.125 in.
Stroke Distance	12 in.
Warranty	1 Year
Manufacturer PartNumber	297073

Chief 2 in. Bore x 12 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.125 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 12 in. Maximum operating pressure 3,000 PSI Maximum weight capacity 9,420 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height N/A Product Length N/A Product Weight 16.1 lbs. Product Width N/A Retracted Length 22.25 in. Shank diameter 1.125 in. Travel distance 12 in. 1 year warranty Manufacturer part number 297073.
