Chief 3 045 PSI BMSY Hydraulic Motor 11.83 CID 375 RPM SAE 10 Port 5 185 Torque Hydraulic Motors Tractor Repair & Parts

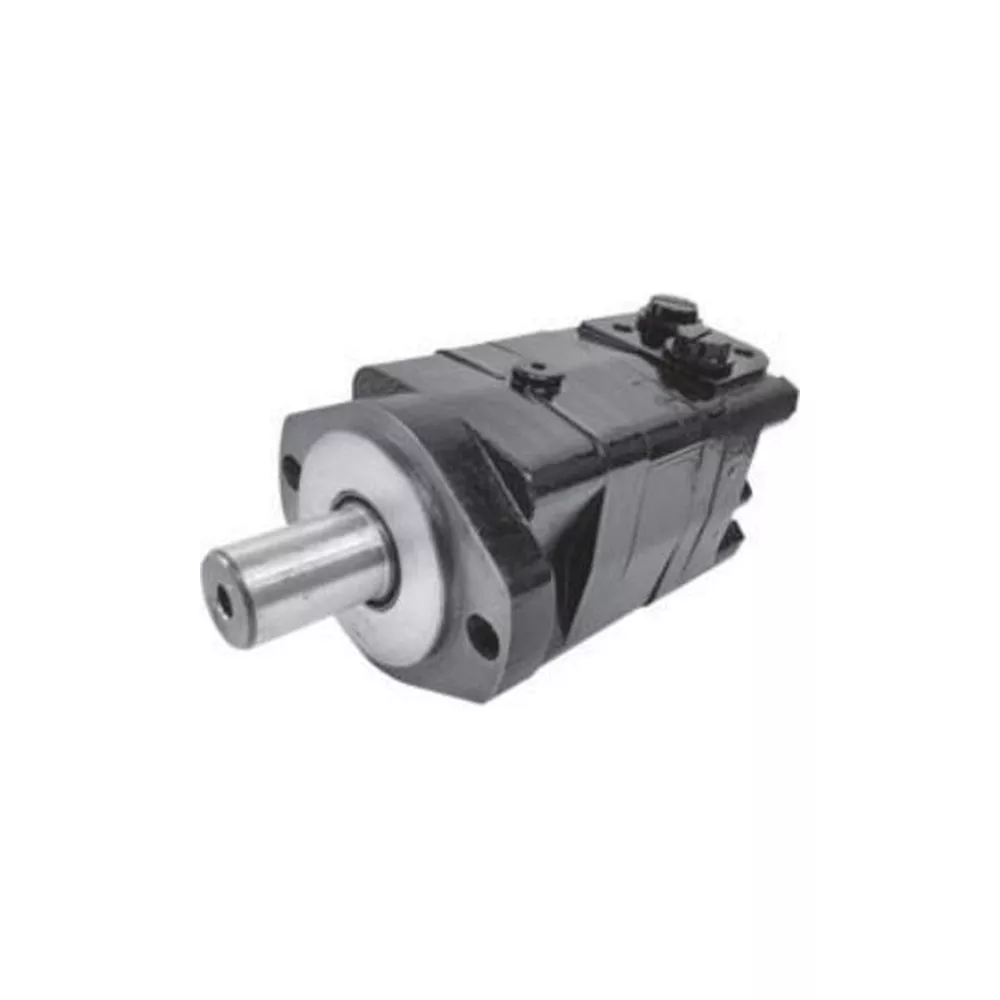

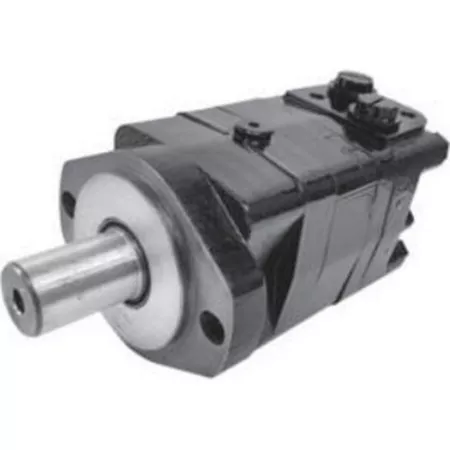

The Chief 3,045 PSI BMSY Hydraulic Motor is a replacement for the 2000 Series Char-Lynn hydraulic motor. The BMSY hydraulic motor adapts an advanced gear set design with disc distribution flow and high pressure. This motor can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. The low weight advanced construction design motor is manufactured in accordance with the requirements of the ISO 9000-2000 quality system.

11.83 CID, SAE 10 ports, 375 RPM, and 5,185 torque
6-1/4 in. diameter straight keyed cylindrical shaft
Dual rotation design
Chief hydraulic motor is a replacement for the Char-Lynn hydraulic motor
Similar Char-Lynn motors: 104-1026
Operating pressure of the hydraulic motor: 3,045 PSI
Motor is manufactured in accordance with the requirements of the ISO 9000-2000 quality system

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 045 PSI BMSY Hydraulic Motor 11.83 CID 375 RPM SAE 10 Port 5 185 Torque Hydraulic Motors Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Motors

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Body Materials	Metal
Continuous Torque	5,185 Torque
Displacement	N/A
Maximum Operating Pressure	3,045 PSI
Maximum Speed	375 RPM
Port Size	SAE 10
Product Height	N/A
Product Length	N/A
Product Weight	28 lb.
Product Width	N/A
Recommended Oil Viscosity	N/A
Shaft Diameter	6-1/4 in.
Warranty	1 Year
Manufacturer PartNumber	271604

Chief 3,045 PSI BMSY Hydraulic Motor, 11.83 CID, 375 RPM, SAE 10 Ports, 5,185 Torque Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Body Material Metal Continuous Torque 5,185 Torque Displacement N/A Maximum Operating Pressure 3,045 PSI Maximum Speed 375 RPM SAE Orifice Size 10 Product Height N/A Product Length N/A Product Weight 28 lbs. Product Width N/A Recommended Oil Viscosity N/A Shaft Diameter 6-1/4 in. 1 Year Warranty Manufacturer Part Number 271604
