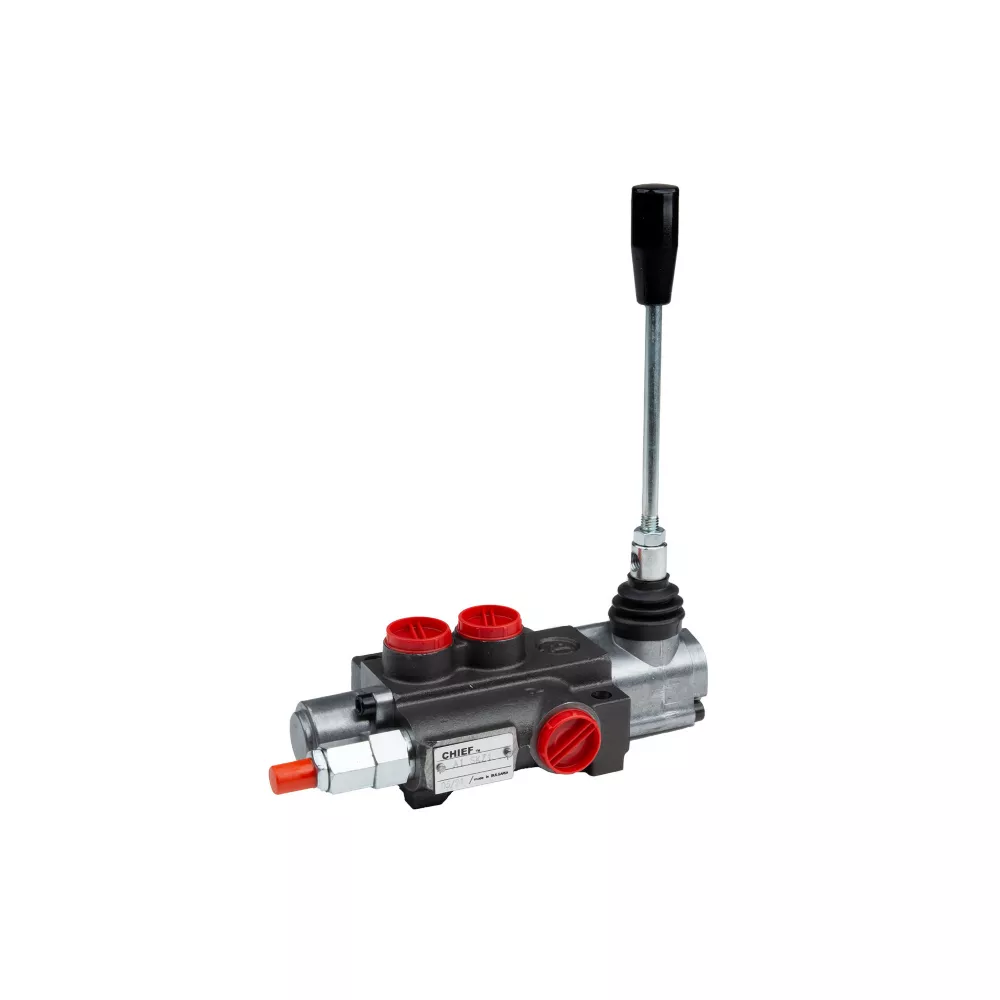

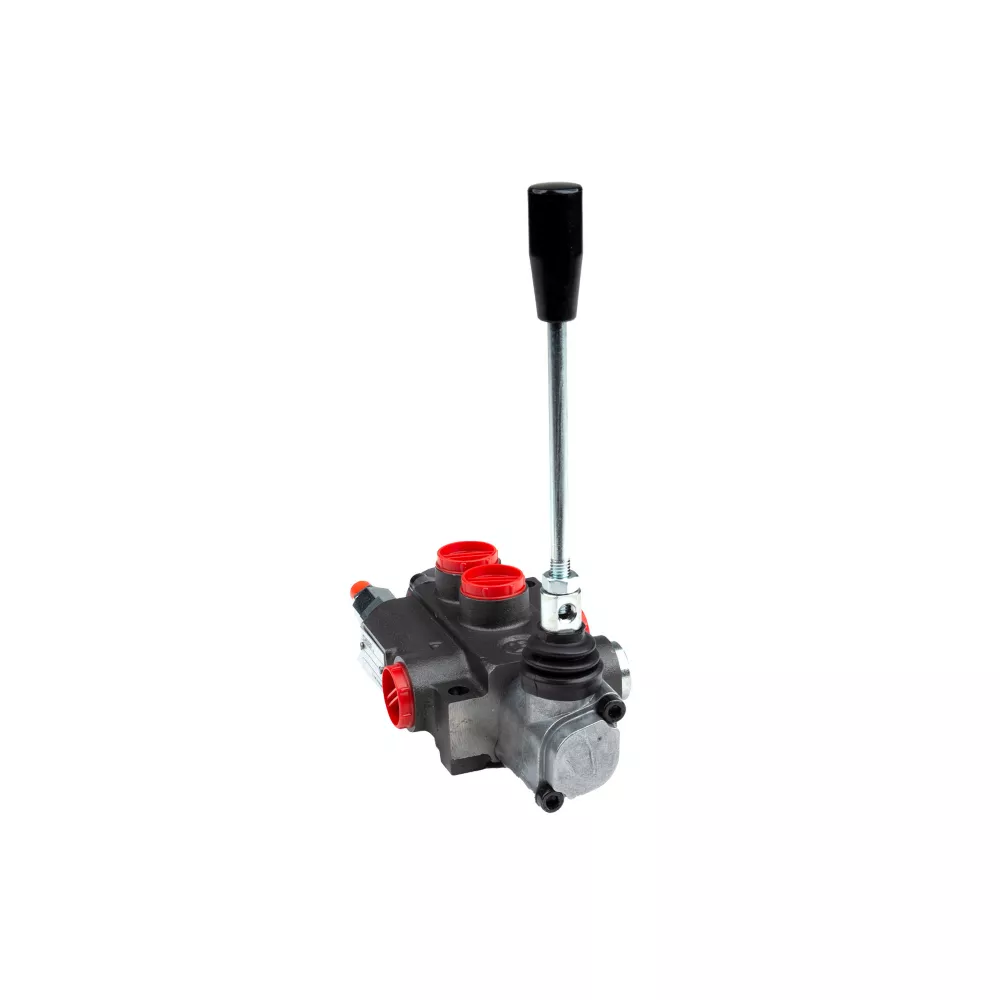

Chief 3 625 PSI G Series Directional Control Valve 10 GPM 1 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect equipment setup with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
This hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
See accessories for power beyond plug or closed center conversion plug
This Chief hydraulic directional control valve is equipped with a single spool
European design with SAE 10 inlet, SAE 10 outlet, and SAE 10 work ports
Flow rate: 10 GPM
Valving: 3-way, 3-positiion tandem center
Action: 3-position spring center
Max operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 625 PSI G Series Directional Control Valve 10 GPM 1 Spool SAE 10 Inlet/Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	10 SAE
Inlet Type	Female
Maximum Flow Rate	10 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Most applications
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	10 SAE
Outlet Type	Female
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	5 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 8
Manufacturer PartNumber	220932
