Chief WTG Welded Rod Cylinder 3.5 in Bore x 16 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

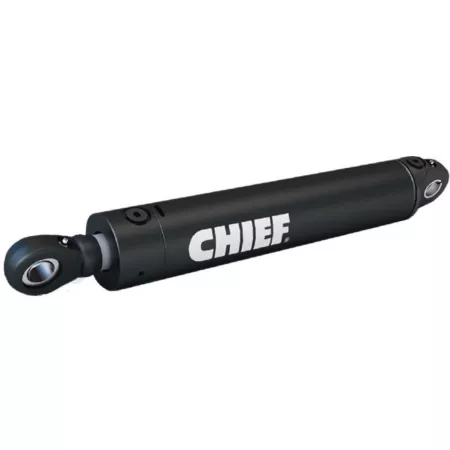

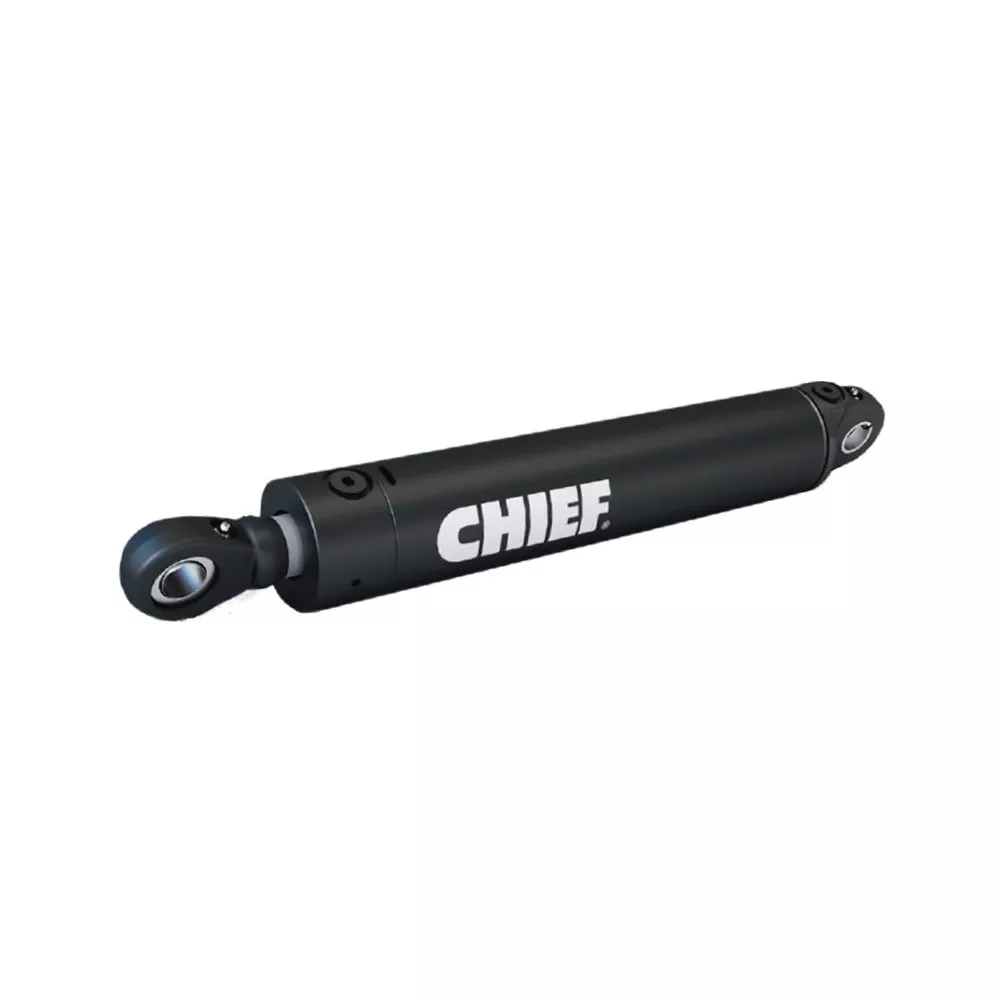

The Chief 3.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder is an incredibly durable cylinder. It is sometimes referred to as a lug end cylinder, due to a 1-piece lug mount welded to both the rod and base ends of the hydraulic cylinder. This welded hydraulic cylinder can utilize a spherical ball or steel bushing insert to improve wear life and is most commonly used in heavy-duty construction equipment.

Intended use: double acting applications
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube: precision-honed steel
Rod: induction-hardened, hard chrome-plated
Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring for a reliable hydraulic cylinder
1/8 NPT grease zerk
Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Pin diameter of 1 in. and rod diameter of 1.75 in.
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings
360 degree rotating gland for a versatile welded hydraulic cylinder
Functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty on the hydraulic cylinder
Measures 26 in. retracted and 42 in. extended
Column load: 34,630 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WTG Welded Rod Cylinder 3.5 in Bore x 16 in Stroke 1.75 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	3.5 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	42 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,600 PSI
Maximum Weight Capacity	34,630 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Height	1.2 in.
Product Length	10 in.
Product Weight	46 lb.
Product Width	1.3 in.
Retracted Length	26 in.
Rod Diameter	1-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	16 in.
Warranty	3 Year
Manufacturer PartNumber	400685

Chief 3.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.75 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 3.5 in. Brand Compatibility Universal Compatibility Varies Extended Length 42 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,600 PSI Maximum Weight Capacity 34,630 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 1 in. Main material steel Product height 1.2 in. Product length 10 in. Product weight 46 lbs. Product width 1.3 in. Retracted length 26 in. Shank diameter 1-3/4 in. Single/double acting Double acting Stroke distance 16 in. 3 year warranty Manufacturer part number 400685
