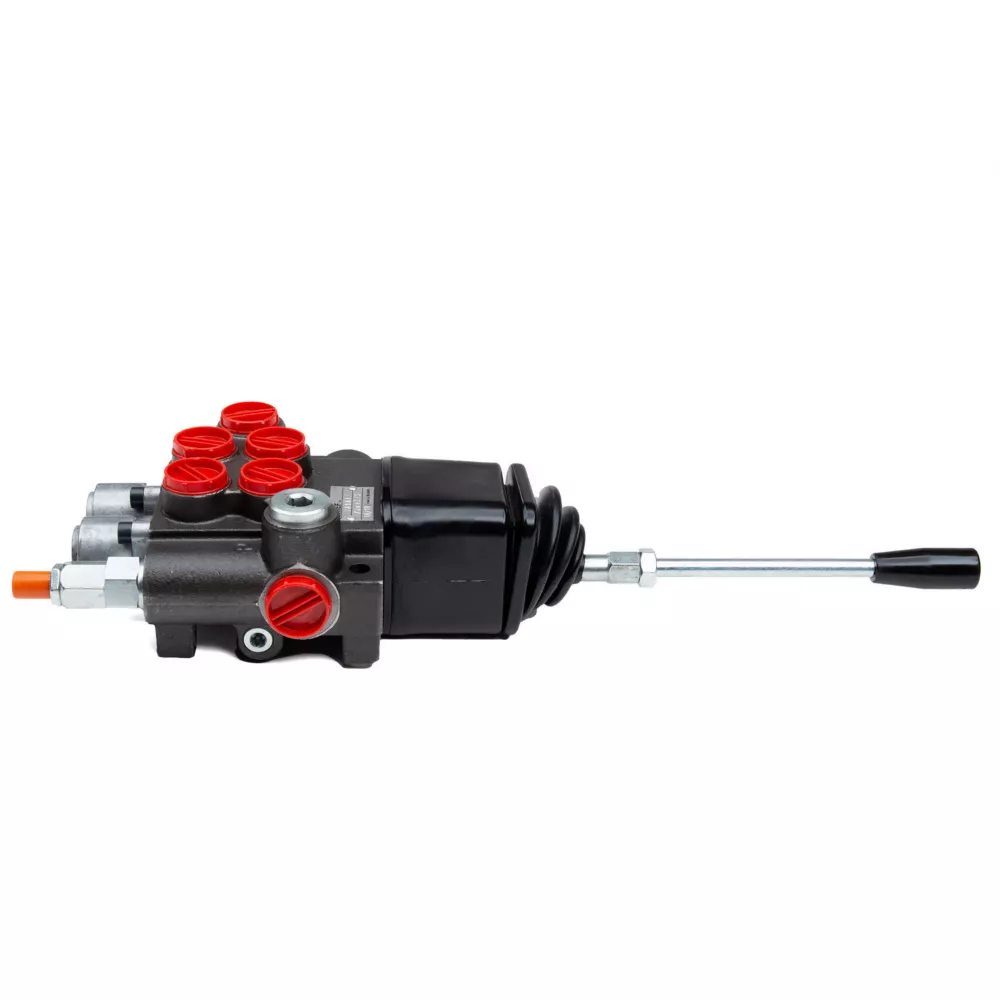

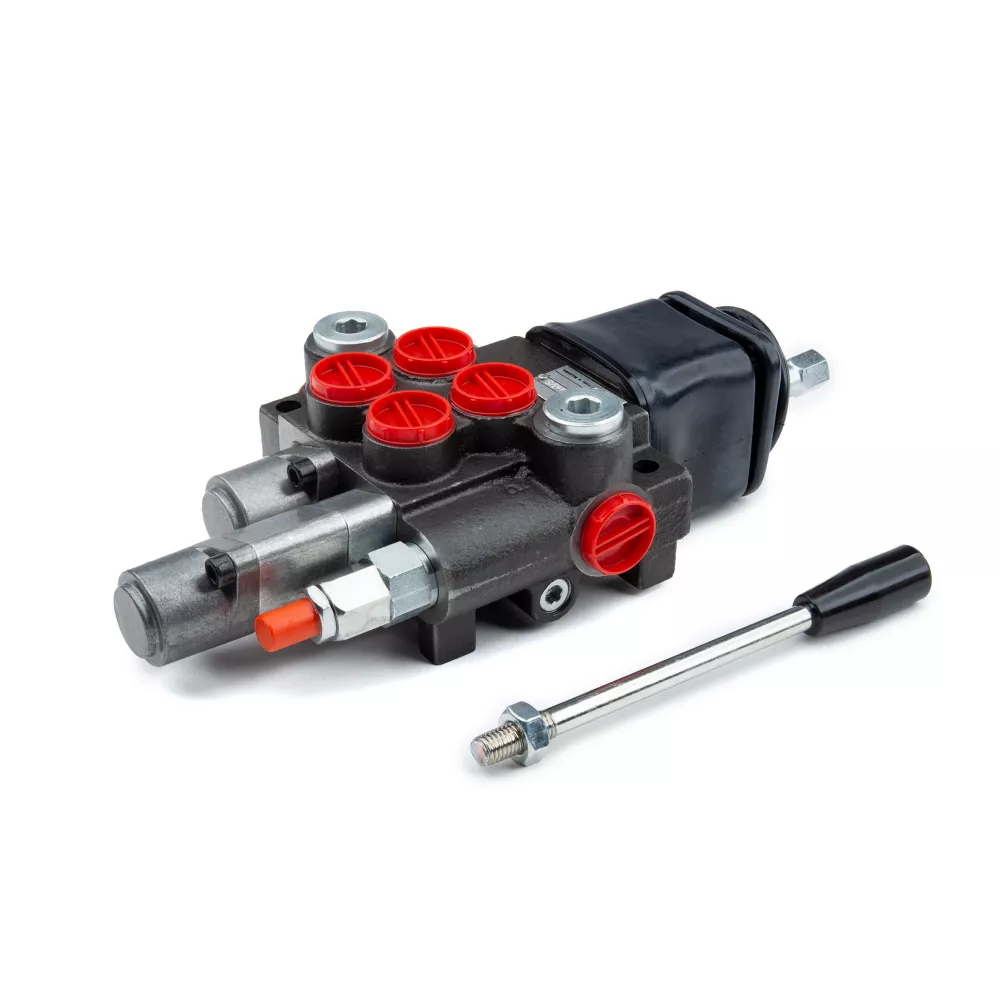

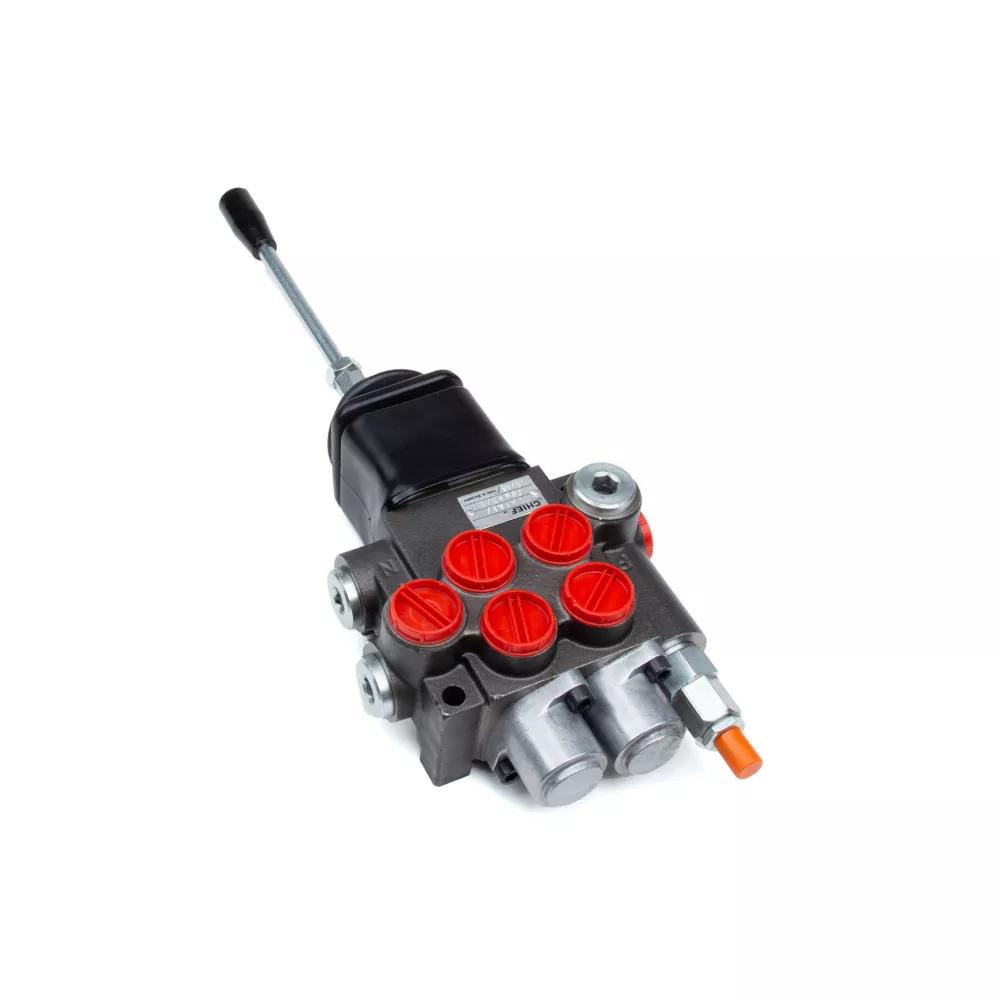

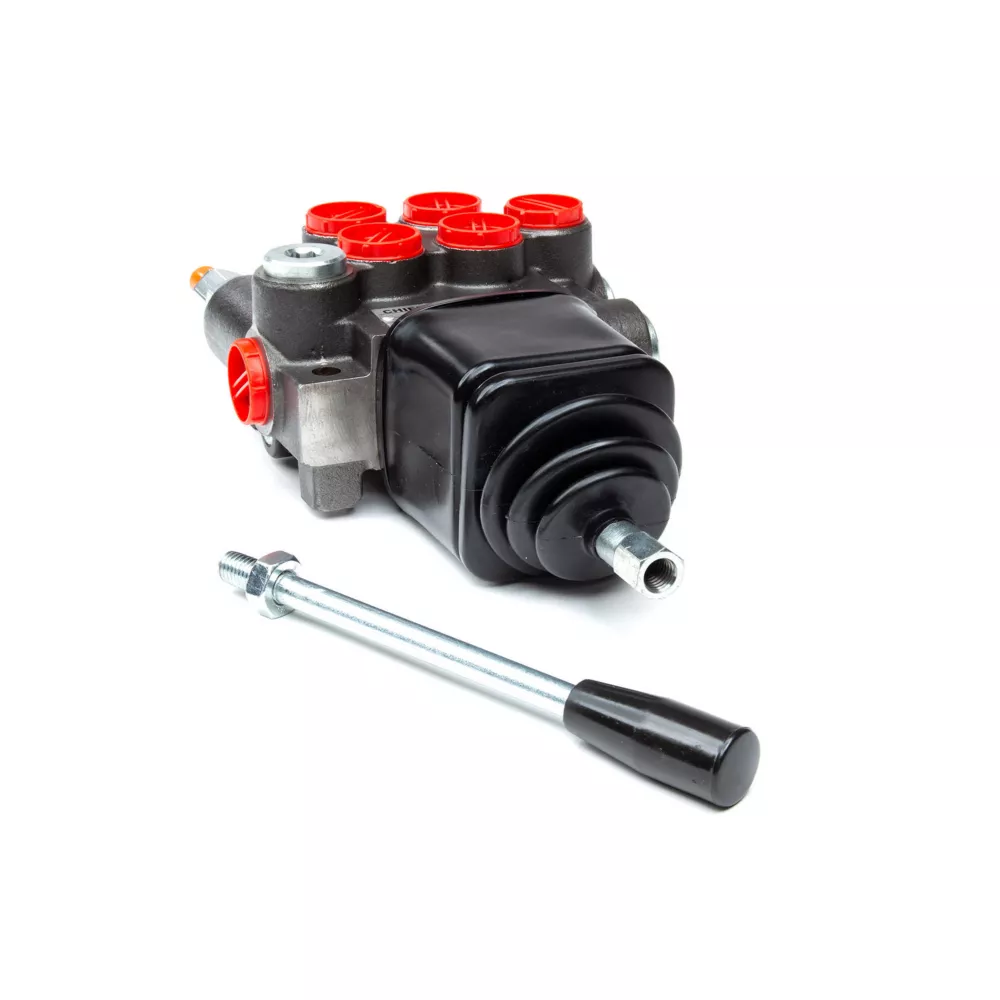

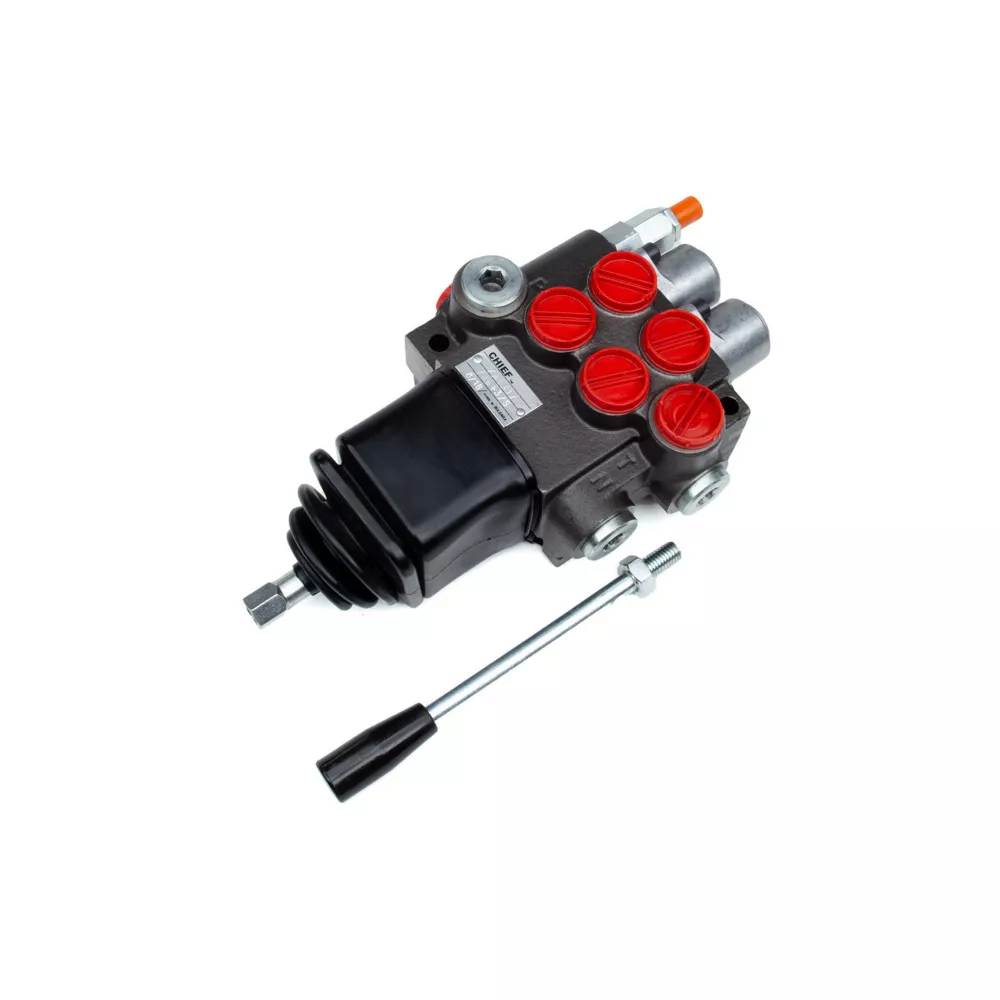

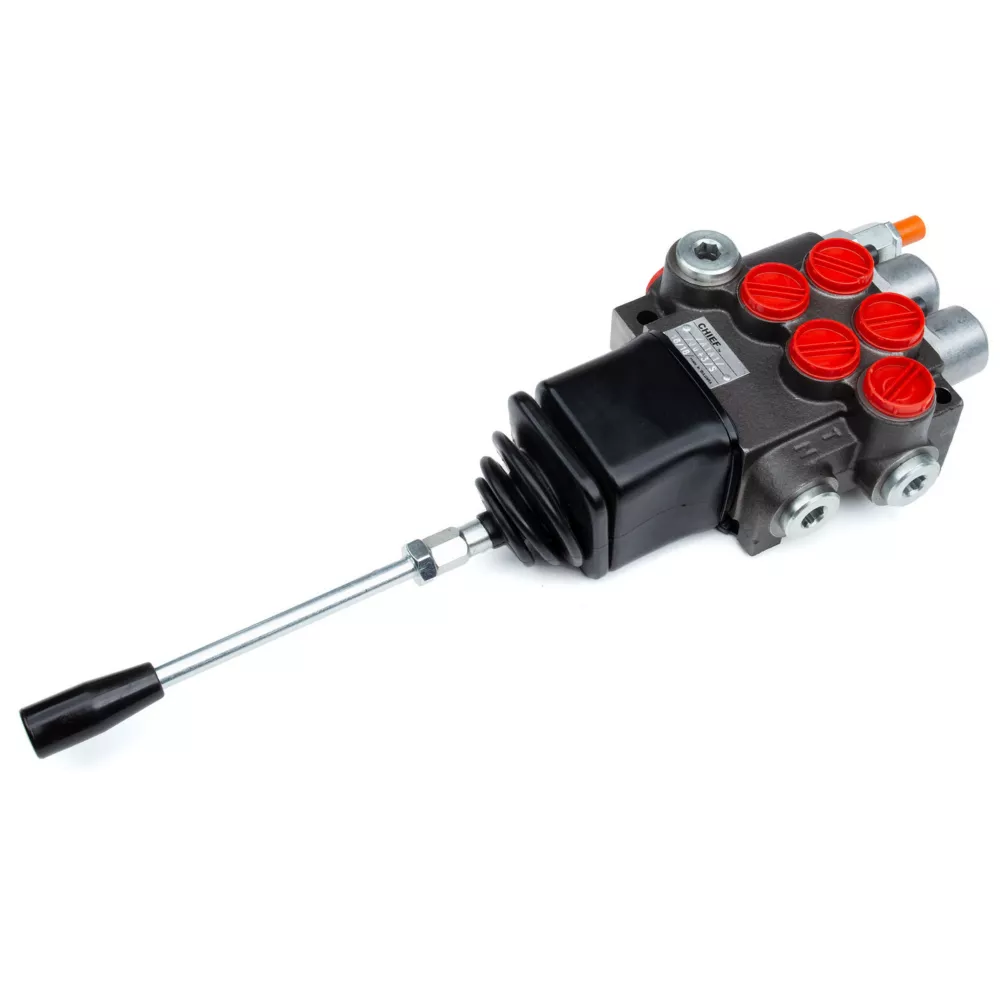

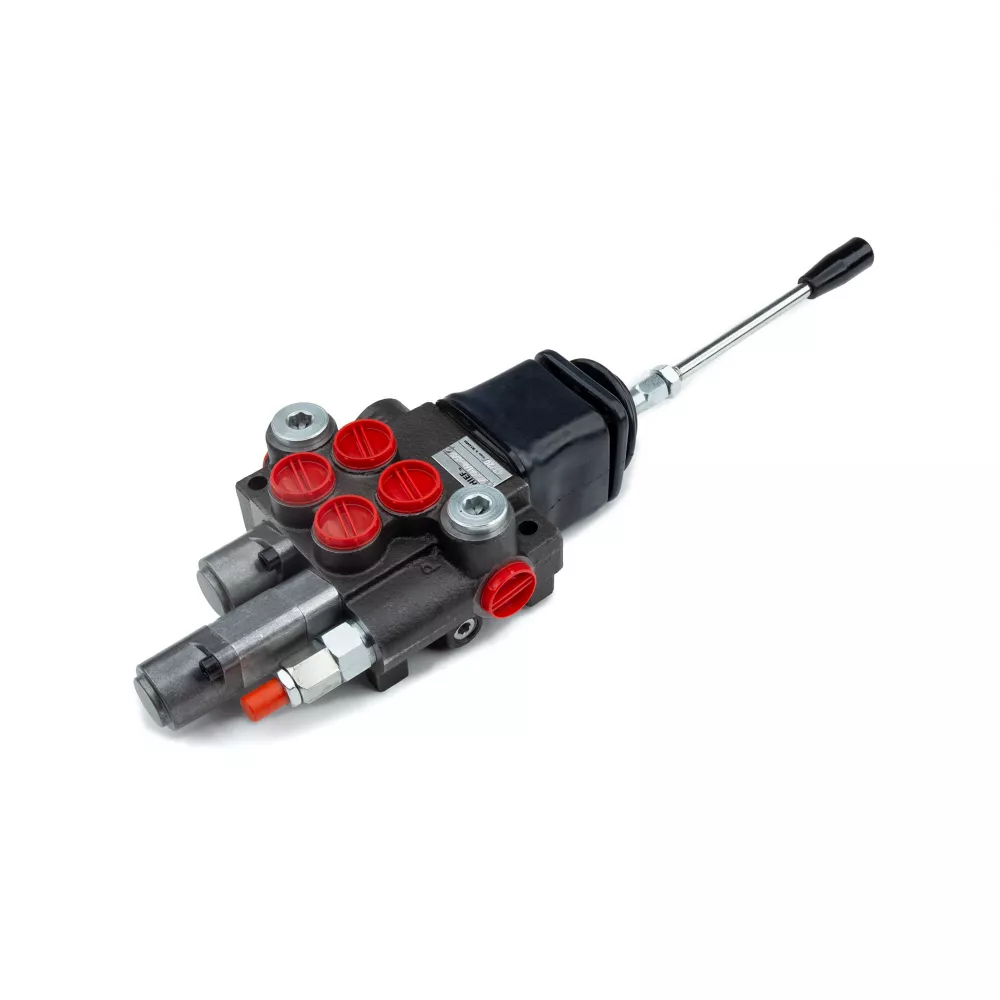

Chief 3 625 PSI G Series Directional Control Valve with Joystick 10 GPM 2 Spools SAE 10 Port Hydraulic Valves & Manifolds Tractor Repair & Parts
The Chief 3,625 PSI G Series Directional Control Valve with Joystick is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a joystick and two spools. Create the perfect equipment setup with help from a Chief hydraulic valve today.- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- This hydraulic control valve features adjustable relief up to 3,625 PSI
- Complete handle assembly included with the hydraulic valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with a joystick and two spools
- European design with SAE 10 inlet, SAE 10 outlet, and SAE 10 work ports
- Flow rate: 10 GPM
- Valving: 4-way, 3-position tandem center, spring to neutral
- Action: 3-position spring center
- Max. operating temperature of the directional control valve: 176 degrees F
Chief 3 625 PSI G Series Directional Control Valve with Joystick 10 GPM 2 Spools SAE 10 Port Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds
| Specification | Description |
|---|---|
| Brand | Chief |
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | SAE 10 |
| Inlet Type | Male |
| Maximum Flow Rate | 10 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | N/A |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 10 lb. |
| Product Width | N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 8 |
| Manufacturer PartNumber | 220910 |
