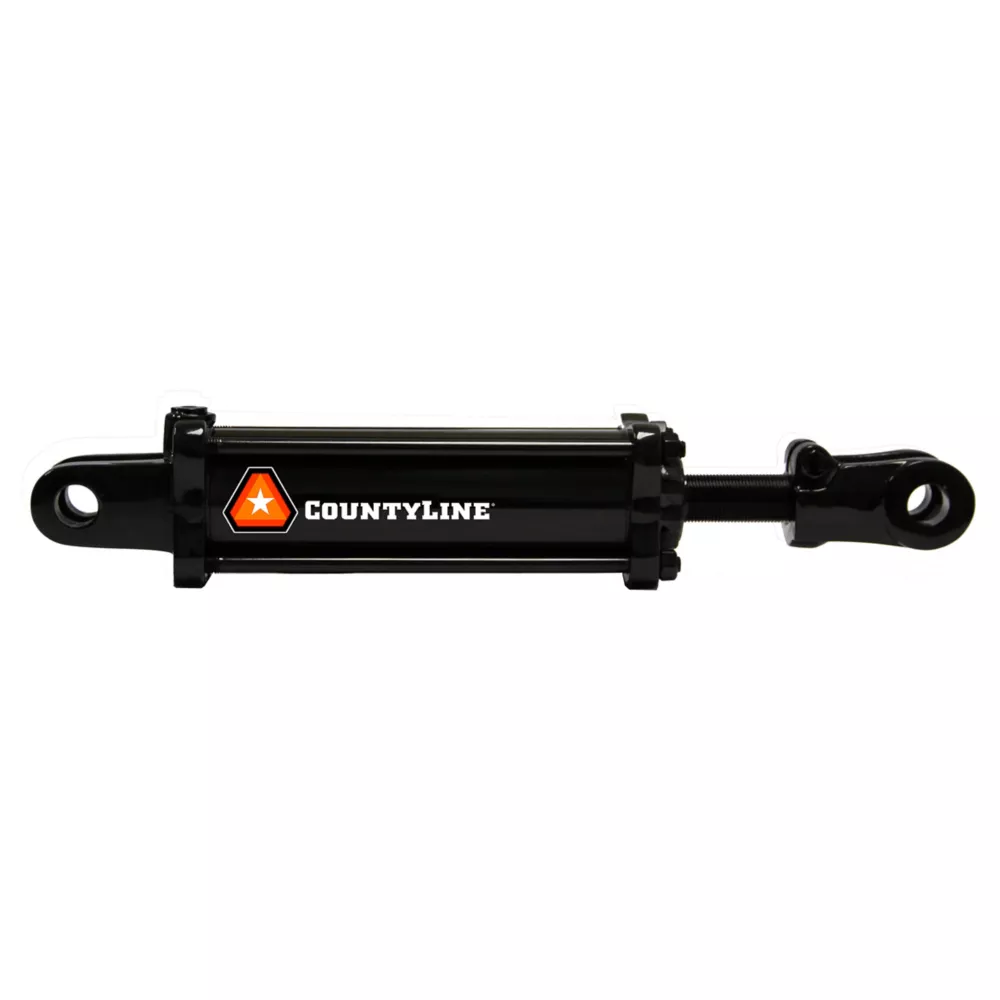

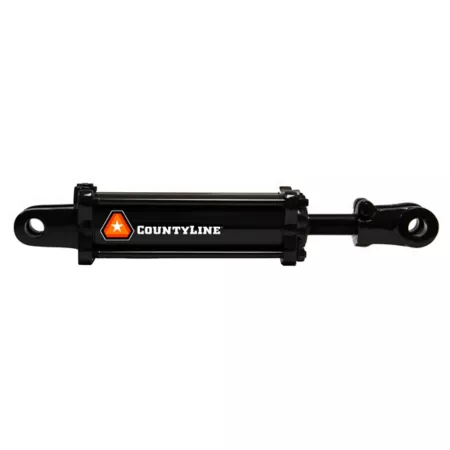

CountyLine Tie Rod Hydraulic Cylinder 3.5 in Bore x 8 in Stroke 1.25 in Rod Diameter 2 500 PSI Hydraulic Cylinders Tractor Repair & Parts
The CountyLine 3.5 in. Bore x 8 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. The hydraulic cylinder is well suited to perform in demanding applications in any industry. This tie rod hydraulic cylinder provides value pricing without sacrificing quality.- 3.5 in. bore x 8 in. stroke
- Hydraulic cylinder has a 2,500 PSI operating range
- Used for agricultural applications
- Tie rod hydraulic cylinder exceeds industry standards
- 1.25 in. rod diameter
CountyLine Tie Rod Hydraulic Cylinder 3.5 in Bore x 8 in Stroke 1.25 in Rod Diameter 2 500 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | CountyLine |
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Unknown |
| Extended Length | 28.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 24,050 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 12 NPT |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 20.25 in. |
| Product Weight | 34 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.25 in. |
| Stroke Distance | 8 in. |
| Manufacturer PartNumber | 318303 |
