Chief 3 in Bore x 48 in Stroke AT Tie Rod Cylinder Alternative 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

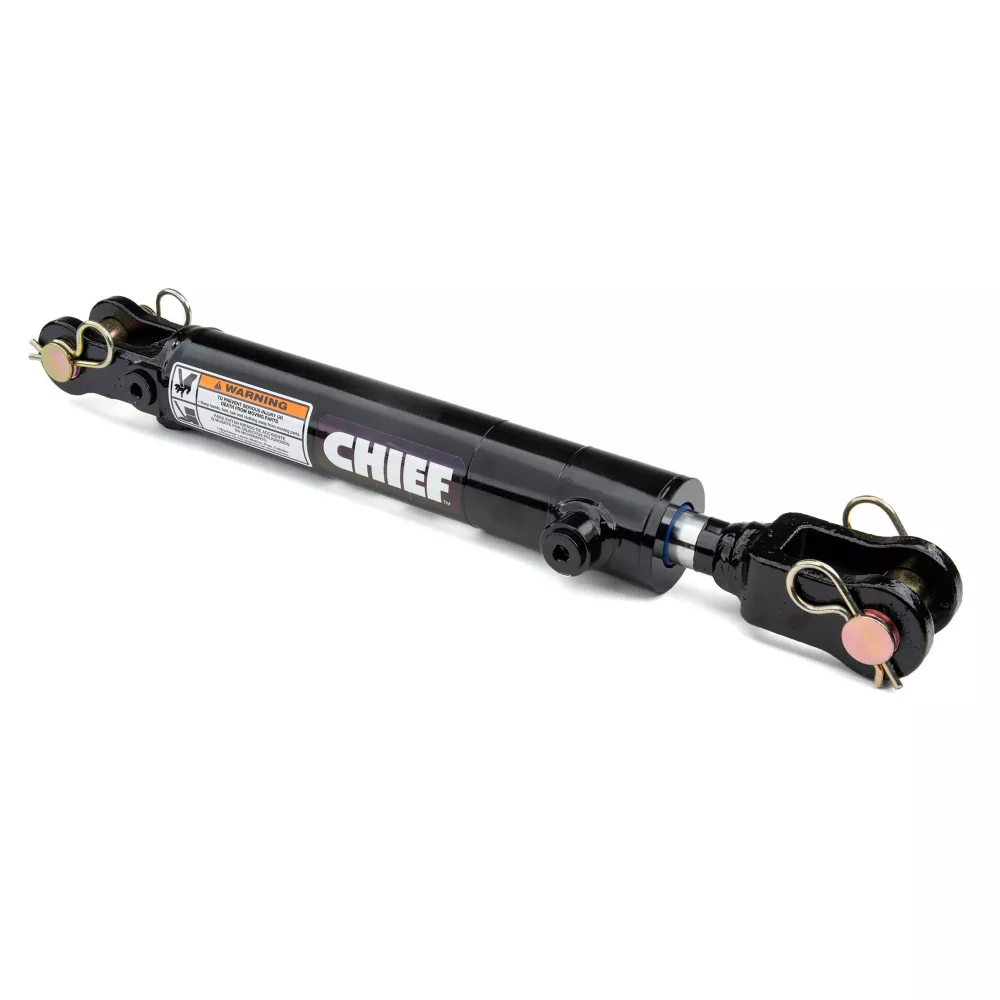

The Chief 3 in. Bore x 48 in. Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before being sold, the hydraulic cylinder undergoes rigorous testing to ensure maximum reliability and performance.

Rugged ductile iron welded clevis design for longevity
Welded hydraulic cylinder with standard SAE #8 ports
3,000 PSI seal kits for extended life
Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
Optional SAE #8 third port location for 90 degree use
Hard chrome-plated rod for the most extreme applications
Precision-welded piston for smooth operation
Gloss black paint finish
Use as single acting hydraulic cylinder or as double acting hydraulic cylinder
Measures 58.25 in. retracted and 106.25 in. extended
Column load: 4,970 lb.
Pin diameter of 1 in. and rod diameter of 1.5 in.
1 year warranty
Maximum PSI: 3,000 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief 3 in Bore x 48 in Stroke AT Tie Rod Cylinder Alternative 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	3 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	106.25 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	4,970 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	0 N/A
Product Length	0 N/A
Product Weight	64.2 lb.
Product Width	0 N/A
Retracted Length	58.25 in.
Rod Diameter	1.5 in.
Single/Double Acting	Single acting
Stroke Distance	48 in.
Warranty	1 Year
Manufacturer PartNumber	297141

Chief 3 in. Bore x 48 in. Stroke AT Alternative to Tie-Rod Cylinder, 1.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 3 in. Brand Compatibility Universal Compatibility Varies Extended Length 106.25 in. Maximum operating pressure 3,000 PSI Maximum weight capacity 4,970 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height 0 N/A Product Length 0 N/A Product Weight 64.2 lbs. Product Width 0 N/A Retracted Length 58.25 in. Shank diameter 1.5 in. Single/double acting Single acting Stroke distance 48 in. 1 year warranty Manufacturer part number 297141.
