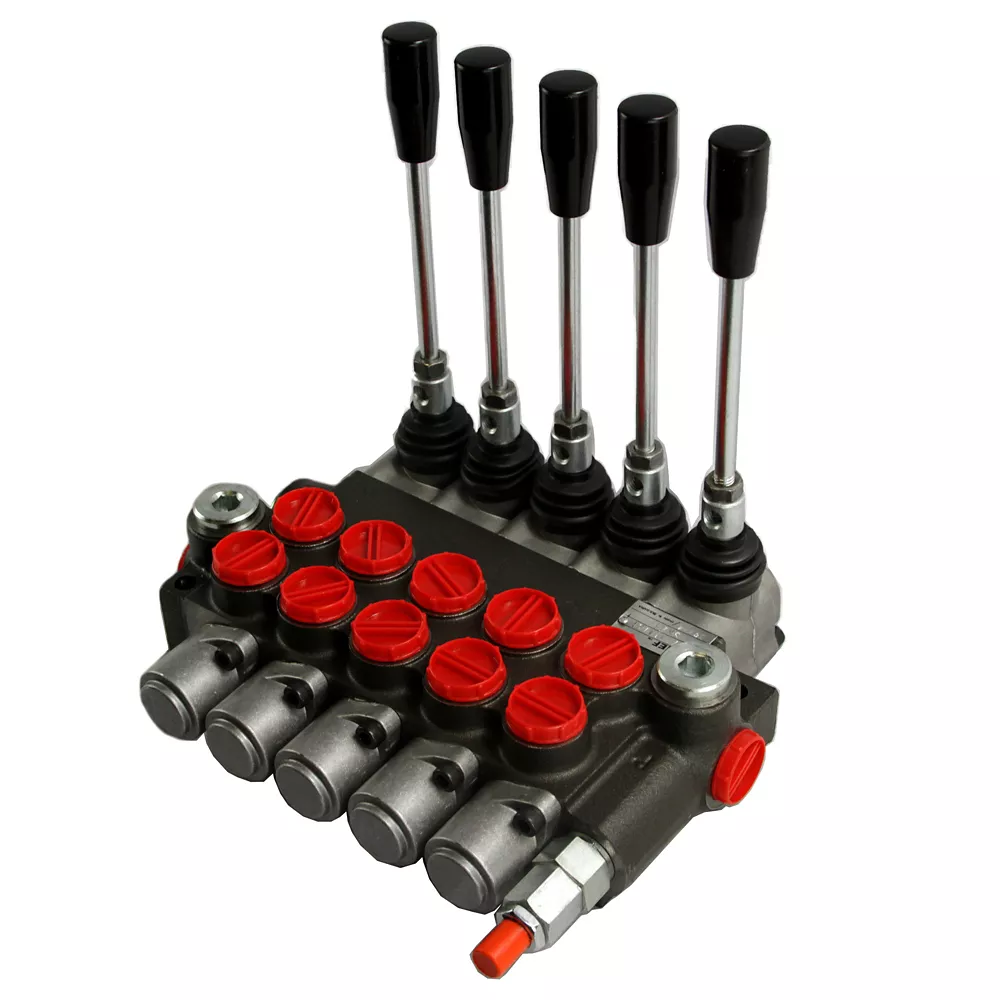

Chief Directional Control Valve G Series 3625 PSI 21 GPM 5 Spool SAE 10 Inlet/12 Outlet Hydraulic Valves & Manifolds Tractor Repair & Parts

The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with five spools. Create the perfect equipment setup with help from a Chief hydraulic valve today.

Directional control valve features cast iron construction for durability
Anti-drop load check on each spool for safe operation
This hydraulic control valve features adjustable relief up to 3,625 PSI
Complete handle assembly included with the hydraulic valve
Power beyond or closed center available
This Chief hydraulic directional control valve is equipped with five spools
Designed with SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
Flow rate: 21 GPM
Valving: 4-way, 3-position tandem
Action: 3-position spring center
Max. operating temperature of the directional control valve: 176 degrees F

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Directional Control Valve G Series 3625 PSI 21 GPM 5 Spool SAE 10 Inlet/12 Outlet Hydraulic Valves & Manifolds Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Valves & Manifolds

Specification	Description
Brand	Chief
Country of Origin	Imported
Brand Compatibility	Universal
Compatibility	Most applications
Inlet Size	SAE 10
Inlet Type	Female
Maximum Flow Rate	21 GPM
Maximum PSI	3,625 PSI
Model Compatibility	Universal
Number Of Directional Control Positions	3
OEM Replacement	Control valve
Outlet Size	SAE 12
Outlet Type	N/A
Primary Material	Cast Iron
Product Height	N/A
Product Length	N/A
Product Weight	31.35 lb.
Product Width	N/A
Warranty	1 Year
Work Port Size	SAE 10
Manufacturer PartNumber	220903
