Chief Gear Pump 3/4 in Dia Keyed Shaft 0.52 CID 4 to 2000 RPM 3600 PSI CCW Rotation Hydraulic Pumps & Reservoirs Tractor Repair & Parts

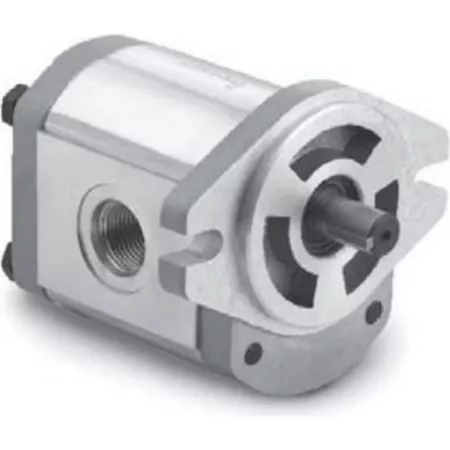

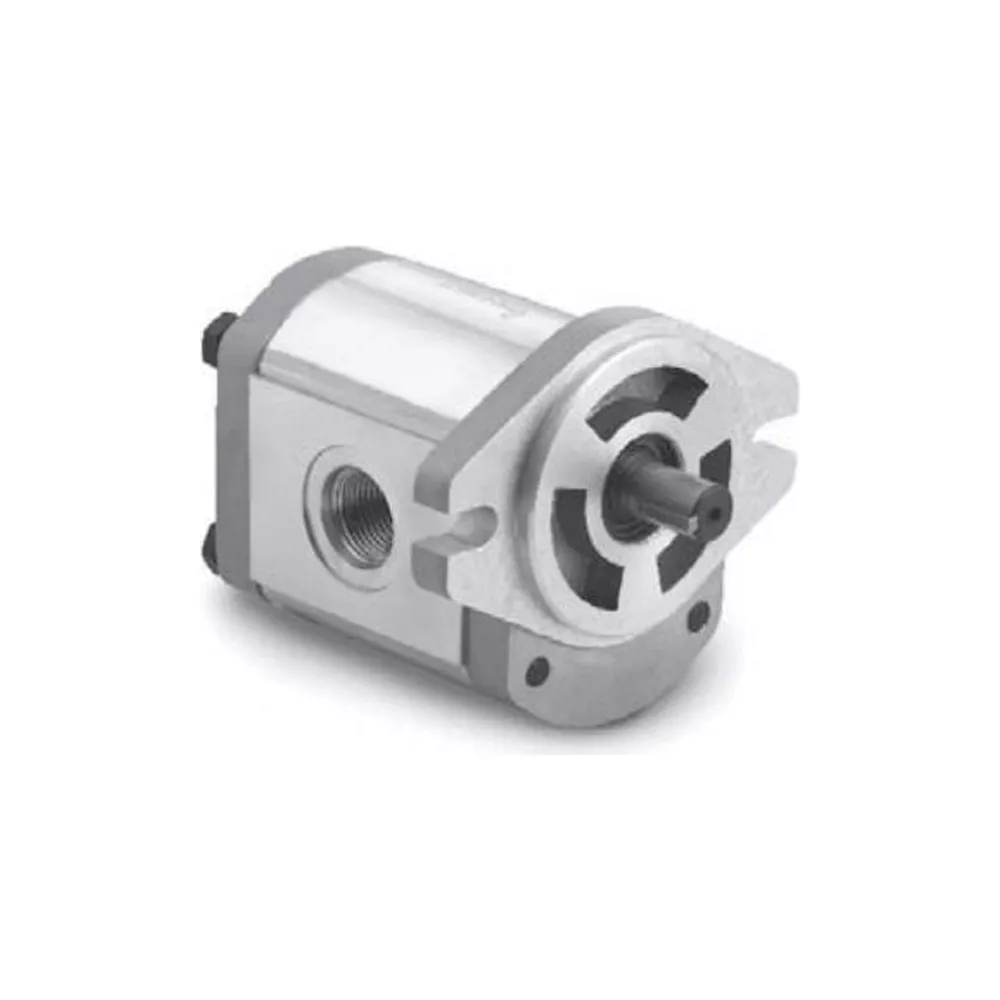

This Chief Gear Pump series offers an aluminum body with cast-iron end plate construction. It's a high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 cu. in./rev. (4 to 32 cm3/rev). The standard mounting flange on the gear pump is a SAE A 2 bolt, and it has a standard drive shaft that is a 5/8 in. diameter straight with a 5/32 in. straight key.

Aluminum center section of the gear pump has cast iron end plates for durability
Filtration: 25 micron or better
Oil viscosity: 6 to 200 CST
Inlet pressure: 12 to 32 PSI ABS
Oil temperature: -25 to 80 deg C (-12 to 175 deg F)
Ambient temperature of the hydraulic gear pump: -22 to 55 deg C (-8 to 130 deg F)
3/4 diameter keyed shaft
11 displacement sizes from 0.24 to 1.95 cu. in./rev
Standard mounting flange: SAE A-2 bolt
Standard drive shaft: 5/8 in. straight shaft with 5/32 in. key
Counter-clockwise rotation
Operating pressure: 3600 PSI
0.48 CID

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Gear Pump 3/4 in Dia Keyed Shaft 0.52 CID 4 to 2000 RPM 3600 PSI CCW Rotation Hydraulic Pumps & Reservoirs Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Pumps & Reservoirs

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Maximum Operating Pressure	3,600 PSI
Product Weight	5.61 lb.
Warranty	1 Year
Manufacturer PartNumber	252167

Chief Gear Pump, 3/4 in. Diameter Keyed Shaft, 0.52 CID, 4 at 2,000 RPM, 3,600 PSI, CCW Rotation Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Maximum Operating Pressure 3,600 PSI Product Weight 5.61 lbs. 1 Year Warranty Manufacturer Part Number 252167
