Chief Welded Toilet Cylinder 1.5 in Bore x 20 in Stroke 1 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

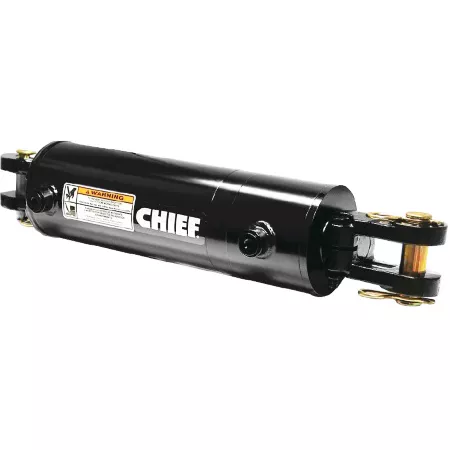

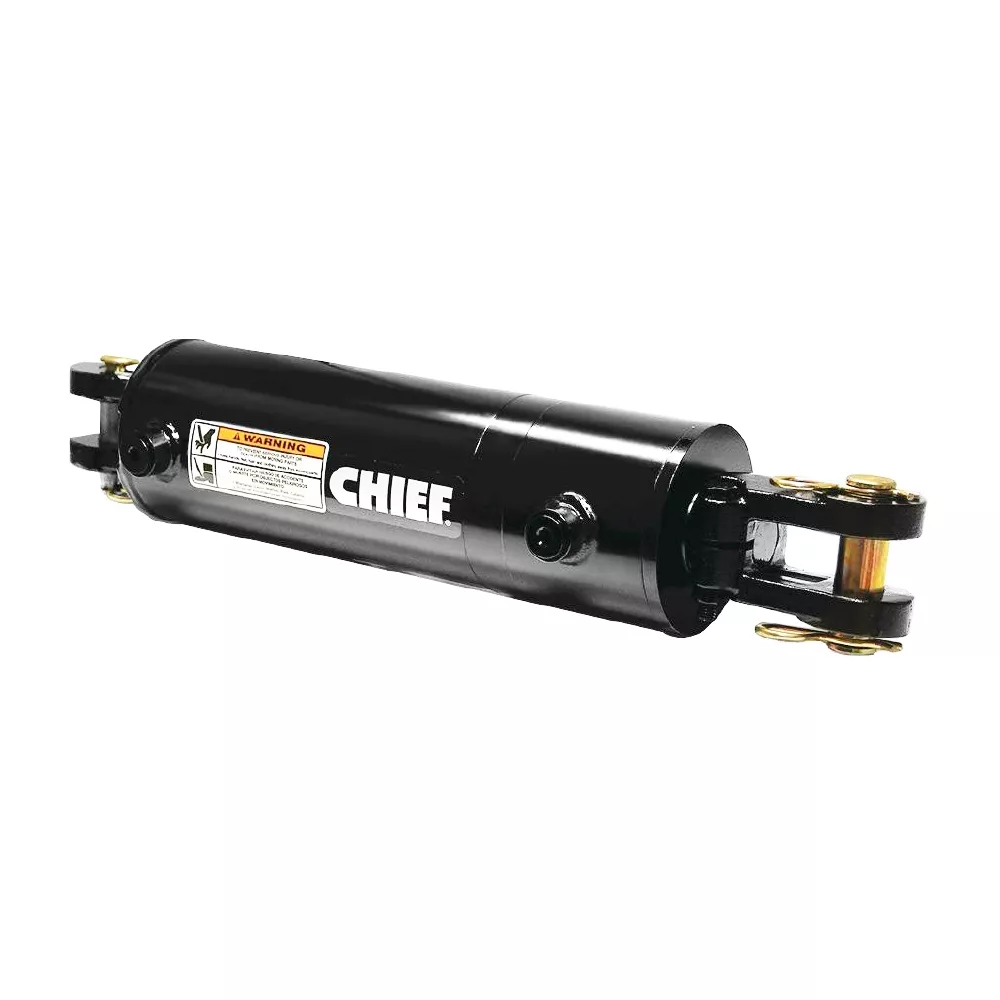

The Chief 1.5 in. Bore x 20 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Individually poly bagged hydraulic cylinder works well in agricultural applications
Welded hydraulic cylinder with a 3,000 PSI operating range
3-year limited warranty
Black paint finish
Measures 30.25 in. retracted and 50.25 in. extended
Column load: 4,210 lb.
Pin diameter of 0.75 in. and rod diameter of 1 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Toilet Cylinder 1.5 in Bore x 20 in Stroke 1 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	50.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	4,210 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0-3/4 in.
Primary Material	Steel
Product Height	10.25 in.
Product Length	1.7 in.
Product Weight	21.61 lb.
Product Width	1.85 in.
Retracted Length	30.25 in.
Rod Diameter	1 in.
Single/Double Acting	Double acting
Stroke Distance	20 in.
Warranty	3 Year Limited
Manufacturer PartNumber	287077
