Chief Welded Cylinder for LD Loader 2.5 in Bore x 24 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

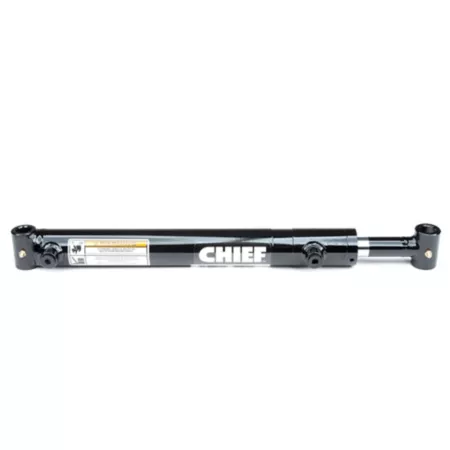

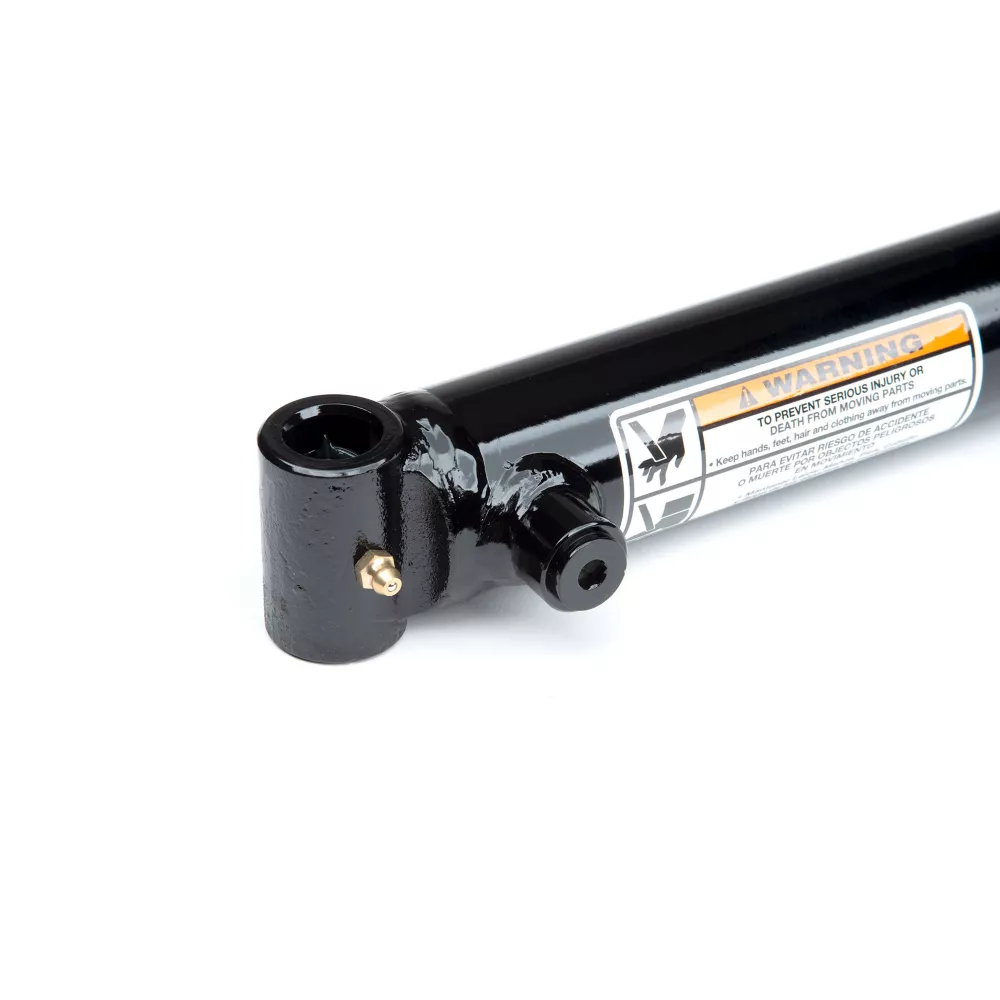

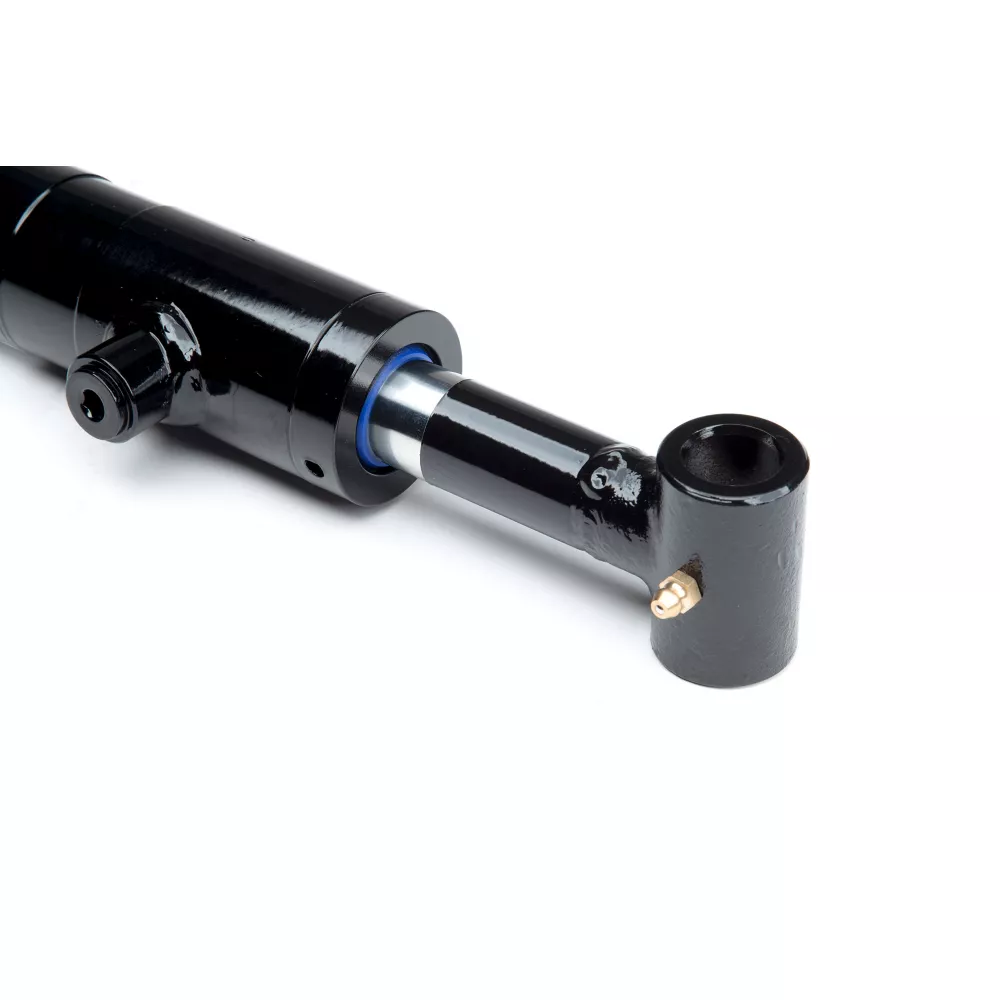

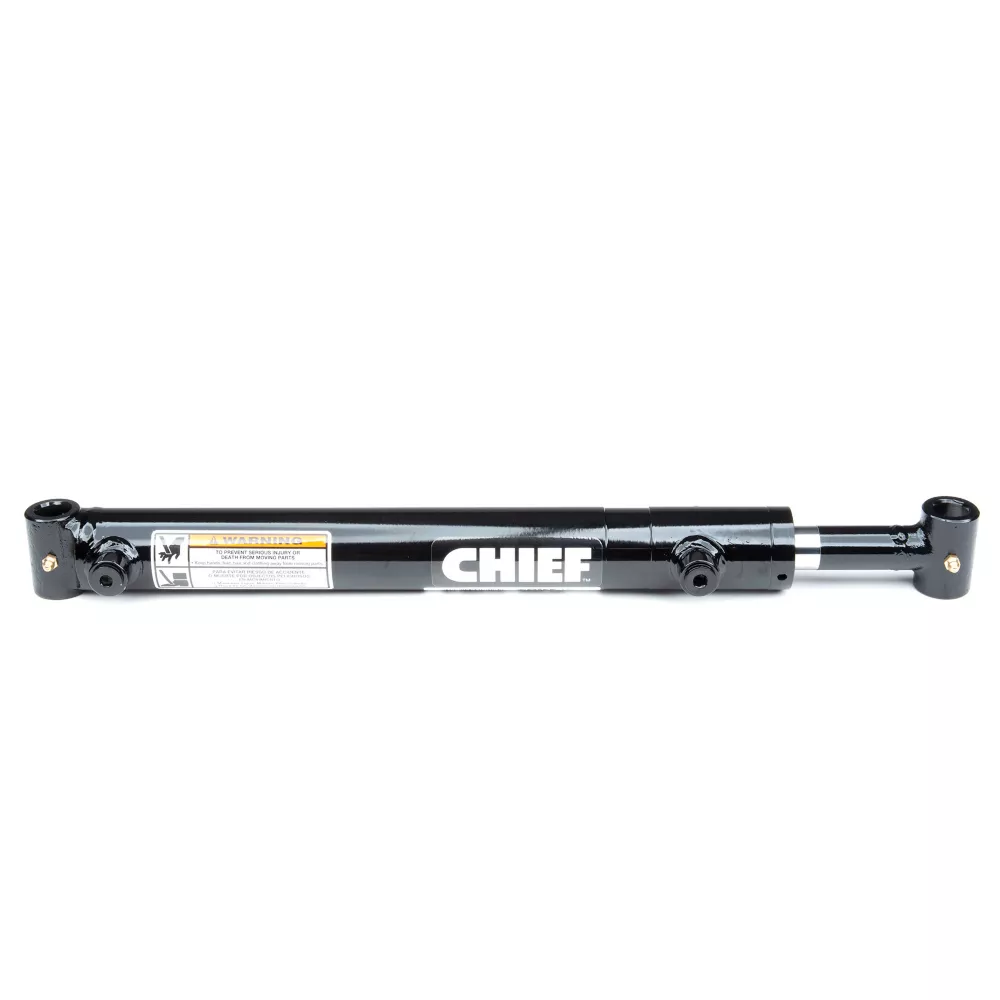

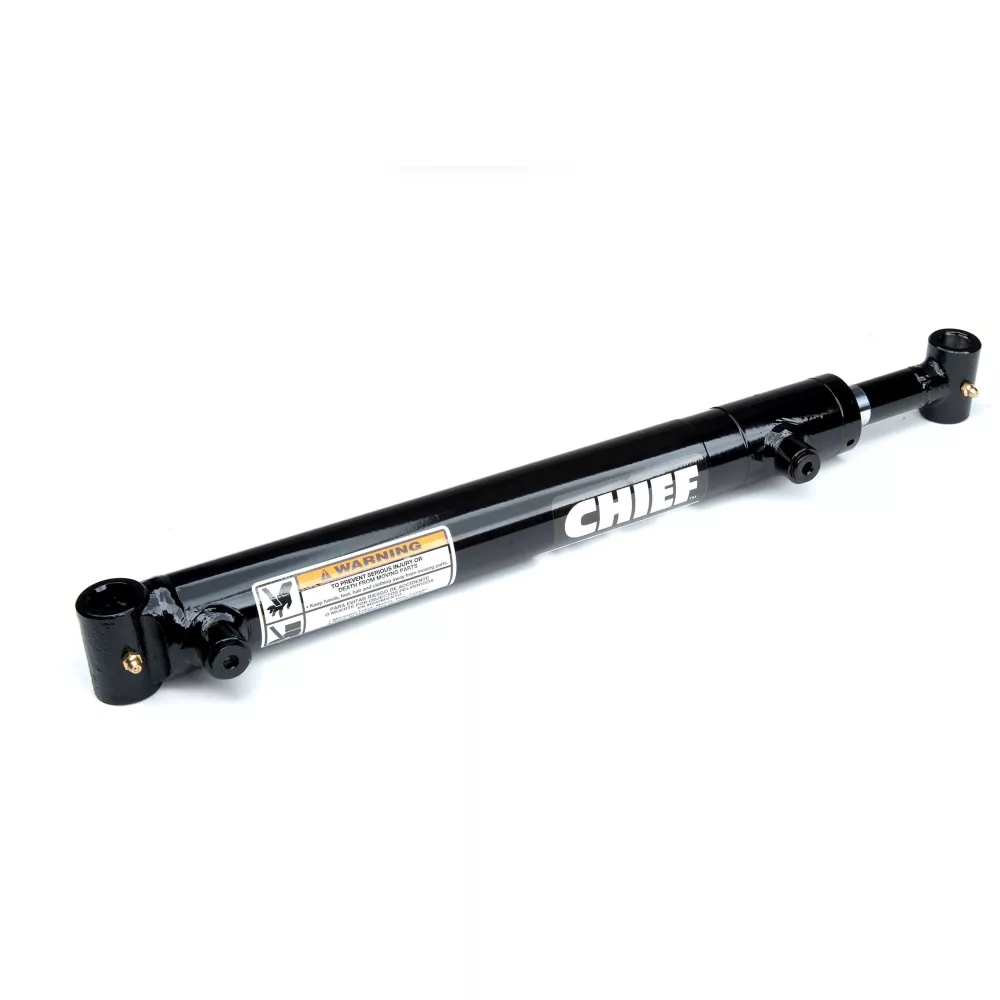

The Chief 2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder is a small bore welded hydraulic cylinder designed for light-duty loaders. The rod and base ends are welded cross-tubes with grease zerk, giving the hydraulic cylinder a durable and easy to use design. The cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear, increasing the lifespan of the product tremendously.

Welded hydraulic cylinder is ideal for construction, agricultural and other applications
Intended use: double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: honed steel
Rod: hard chrome-plated
End mounts: cross-tubes
Tube seal: Buna O-ring with polytemp hytrel back-up
Rod seal: polyurethane U-cup
Rod wiper: polyurethane, snap-in
Piston seal: 755 with wear rings, (2 each) wear bearings
All seals are manufactured to US specifications
Ports: SAE O-rings
Measures 37 in. retracted and 61 in. extended
Packaging: individually poly bagged
Column load: 13,440 lb.
Pin diameter of 1.25 in. and rod diameter of 1.5 in.
3 year warranty included on the hydraulic cylinder

Chief Welded Cylinder for LD Loader 2.5 in Bore x 24 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	24 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	13,440 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1.25 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	34 lb.
Product Width	N/A
Retracted Length	37 in.
Rod Diameter	3-1/2 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	3 Year
Manufacturer PartNumber	288611
