Chief Welded Toilet Cylinder 4 in Bore x 4 in Stroke 2 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

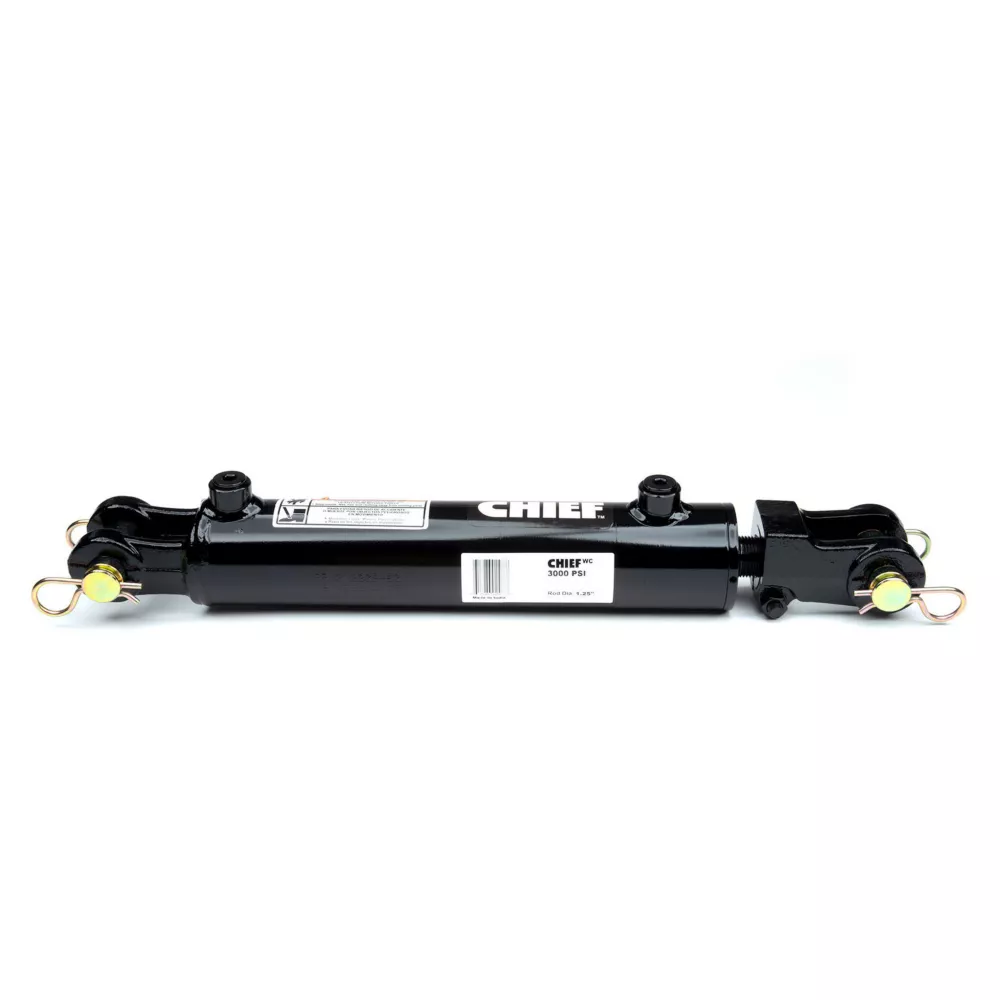

The Chief 4 in. Bore x 4 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

Individually poly bagged hydraulic cylinder for double-acting applications
Piston: ductile iron
Gland: ductile iron
Tube: precision-honed steel
Rod: hard chrome-plated
End mounts: ductile iron female clevises with pins and clips included
Tube seals: Buna O-ring
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seal: Hallite 755 for prolonged wear resistance with wear ring
All seals are manufactured to US specifications
Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with SAE O-ring ports that allow for easy hookup
Has a 3,000 PSI operating range
3-year limited warranty
Black paint finish
Measures 14.25 in. retracted and 18.25 in. extended
Column load: 37,690 lb.
Pin diameter of 1 in. and rod diameter of 2 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded Toilet Cylinder 4 in Bore x 4 in Stroke 2 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	4 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	18.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	37,690 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.622 in.
Product Length	10.25 in.
Product Weight	34 lb.
Product Width	2 in.
Retracted Length	14.25 in.
Rod Diameter	2 in.
Single/Double Acting	Double acting
Stroke Distance	4 in.
Warranty	3 Year
Manufacturer PartNumber	287055
