Chief Welded WC Cylinder 1.5 in Bore x 8 Stroke ASAE 0.75 in Shank Diameter Hydraulic Cylinders

Chief Welded WC Cylinder 1.5 in Bore x 8 Stroke ASAE 0.75 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

The Chief 1.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

• Intended use: double-acting applications
• Piston: ductile iron
• Gland: ductile iron
• Tube: precision-honed steel
• Rod: hard chrome-plated

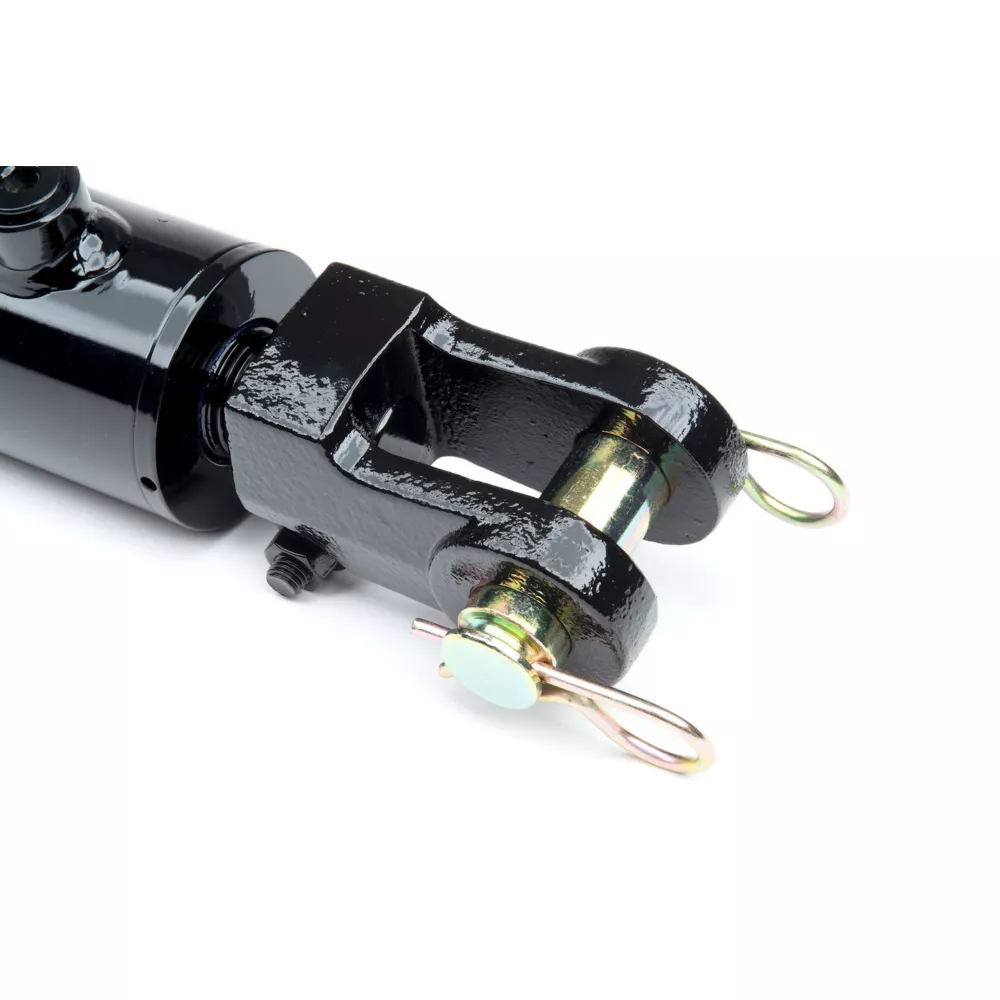

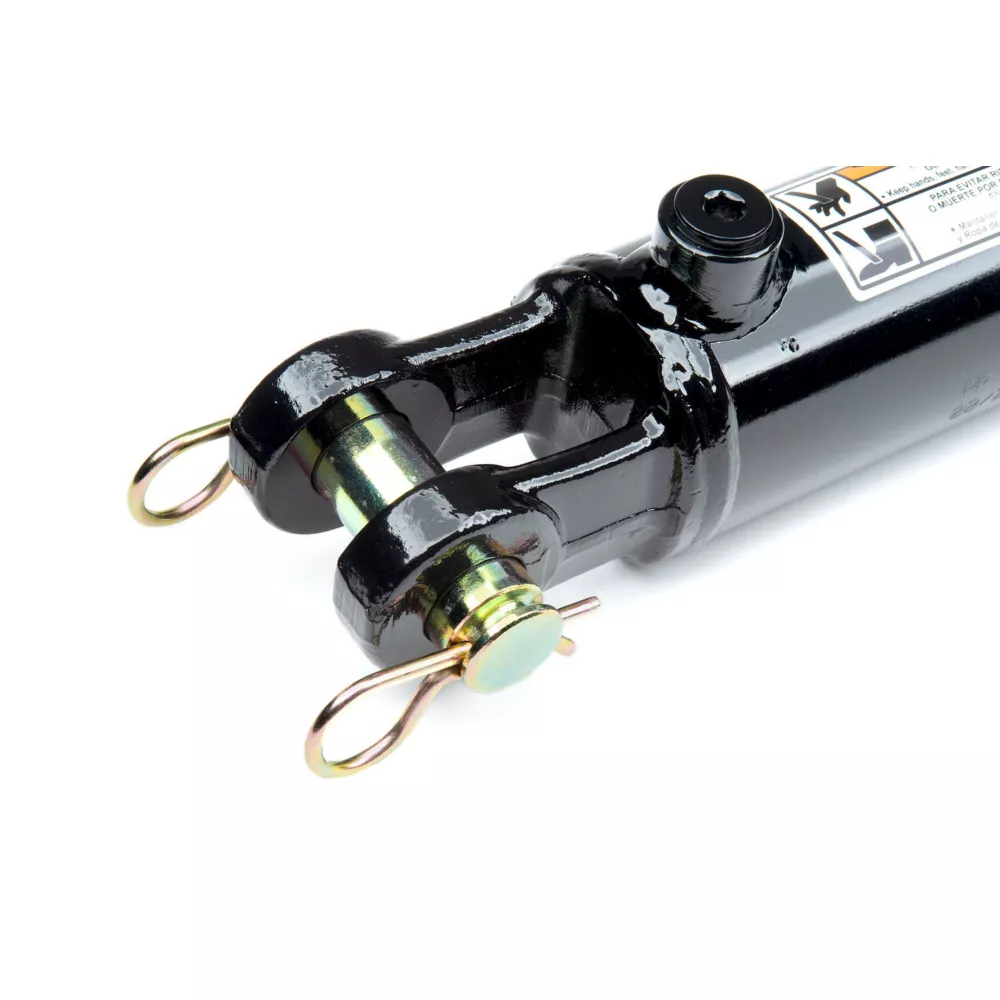

• End mounts: ductile iron female clevises with pins and clips included
• Tube seals: Buna O-ring
• Rod seal: deep polypak with B-lip design
• Rod wiper: urethane, snap-in
• Piston seal: Hallite 755 for prolonged wear resistance with wear ring
• All seals are manufactured to US specifications
• Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
• Measures 20.25 in. retracted and 28.25 in. extended
• WC welded hydraulic cylinders have a 3,000 PSI operating range
• 3-year limited warranty
• Black paint finish
• Column load: 3,950 lb.
• Pin diameter of 0.75 in. and rod diameter of 0.75 in.
• Individually poly bagged hydraulic cylinder works well in agricultural applications

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief Welded WC Cylinder 1.5 in Bore x 8 Stroke ASAE 0.75 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	28.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	3,950 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	0-3/4 in.
Port Size	SAE 6
Primary Material	Steel
Product Height	12.25 in.
Product Length	1.7 in.
Product Weight	9.48 lb.
Product Width	1.85 in.
Retracted Length	20.25 in.
Rod Diameter	0-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	8 ASAE
Warranty	3 Year Limited
Manufacturer PartNumber	287071

Chief 1.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder, 0.75 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 1.5 in. Brand Compatibility Universal Compatibility Tractors Extended Length 28.25 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 3,950 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 0-3/4 in. Port Size SAE 6 Main Material Steel Product Height 12.25 in. Product length 1.7 in. Product weight 9.48 lbs. Product width 1.85 in. Retracted length 20.25 in. Shank diameter 0-3/4 in. Single/Double Acting Double Acting Stroke Distance 8 3-Year ASAE Limited Warranty Manufacturer Part Number 287071
