Chief WP Welded Cylinder 2 in Bore x 42 in Stroke with Eye Rod 1.25 in Rod Diameter 3000 PSI Hydraulic Cylinders Tractor Repair & Parts

The Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.

Functionally tested to 1.5 times working PSI to ensure reliability
SAE 8 O-ring ports for easy hookup
For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
All seals are manufactured to US specifications
3-year limited warranty
Piston: ductile iron with wear ring
Gland: ductile iron, screw-in design with wear ring
Tube: precision honed steel

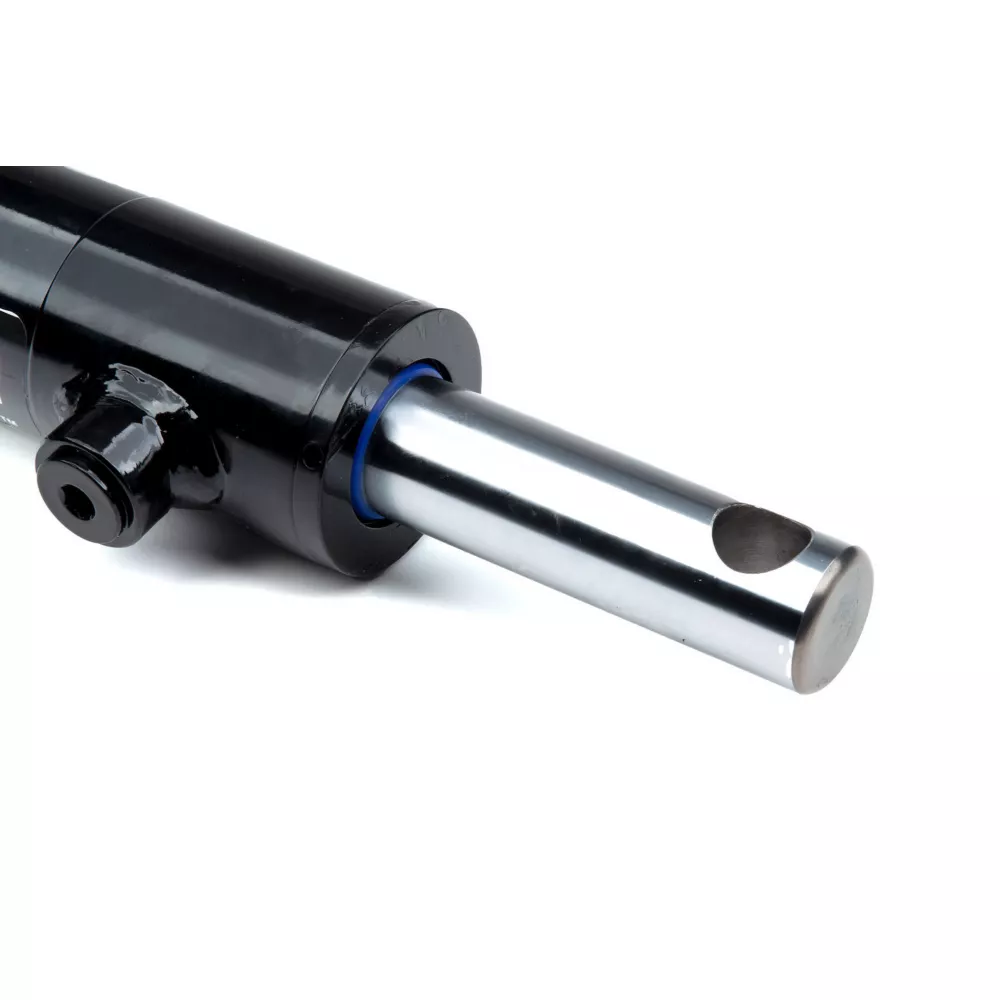

Rod is hard chrome plated and rod end mount is rod eye drilled for durability

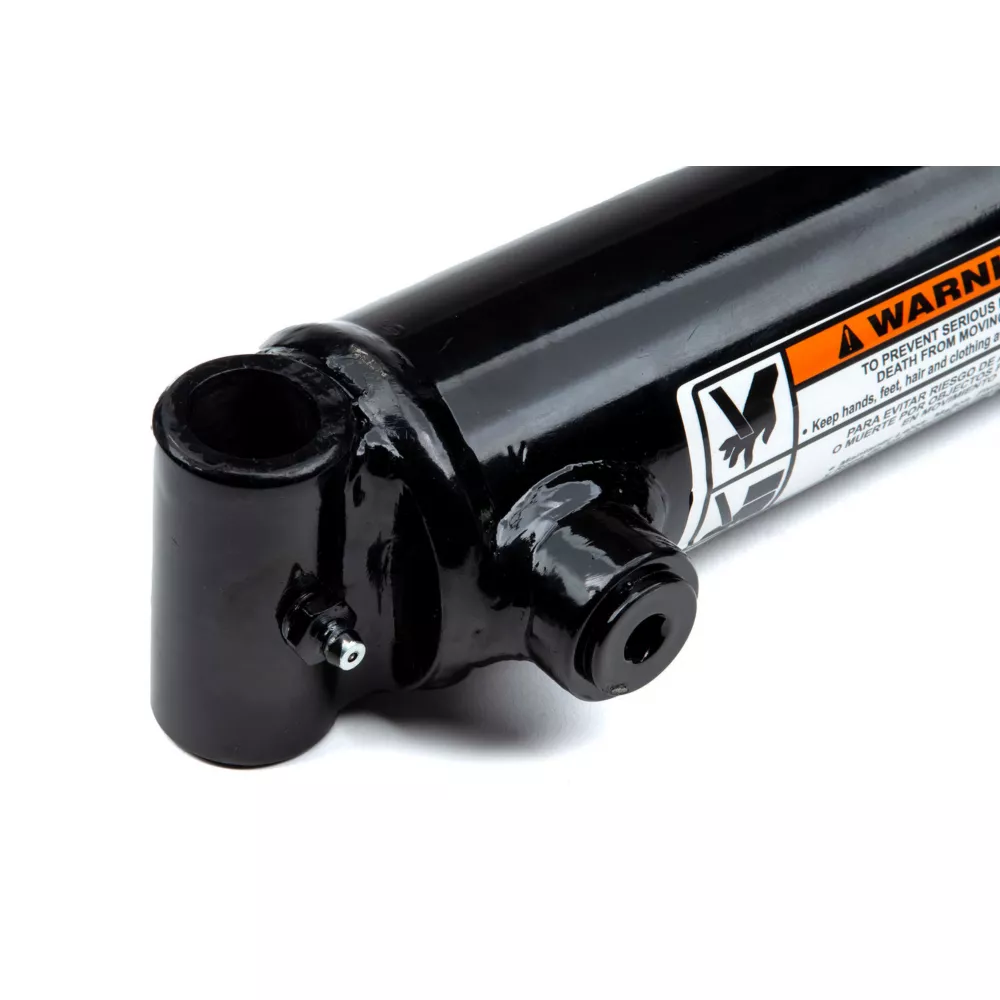

Base end mount: Steel cross-tube with grease zerk
Tube seal: Buna O-ring with Polytemp hytrel backup; rod seal: deep polypak with B lip design
Rod wiper: Urethane, snap-in
Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
3,000 PSI operating range
Measures 50 in. retracted and 92 in. extended
Column load: 3,070 lb.
Pin diameter of 0.75 in. and rod diameter of 1.25 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WP Welded Cylinder 2 in Bore x 42 in Stroke with Eye Rod 1.25 in Rod Diameter 3000 PSI Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Varies
Extended Length	92 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	3,070 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	0-3/4 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.5 in.
Product Length	8 in.
Product Weight	35 lb.
Product Width	1.25 in.
Retracted Length	50 in.
Rod Diameter	1-1/4 in.
Stroke Distance	42 in.
Warranty	3 Year
Manufacturer PartNumber	287221

Chief 2 in. Bore x 42 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility Varies Extended Length 92 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 3,070 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 0-3/4 in. Port Size SAE 8 Main Material Steel Product Height 2.5 in. Product length 8 in. Product weight 35 lbs. Product width 1.25 in. Retracted length 50 in. Shank diameter 1-1/4 in. Stroke Distance 42 in. 3 year warranty Manufacturer part number 287221
