Chief WT Welded Cylinder 5 in Bore x 16 in Stroke 2.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

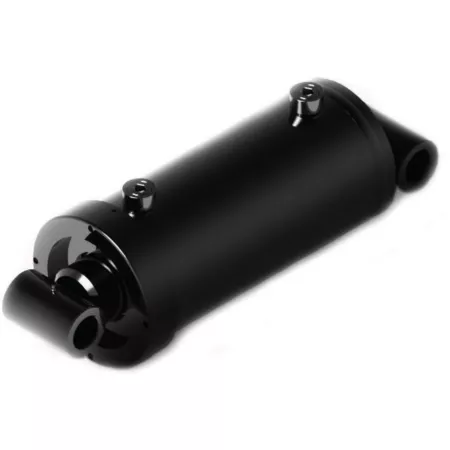

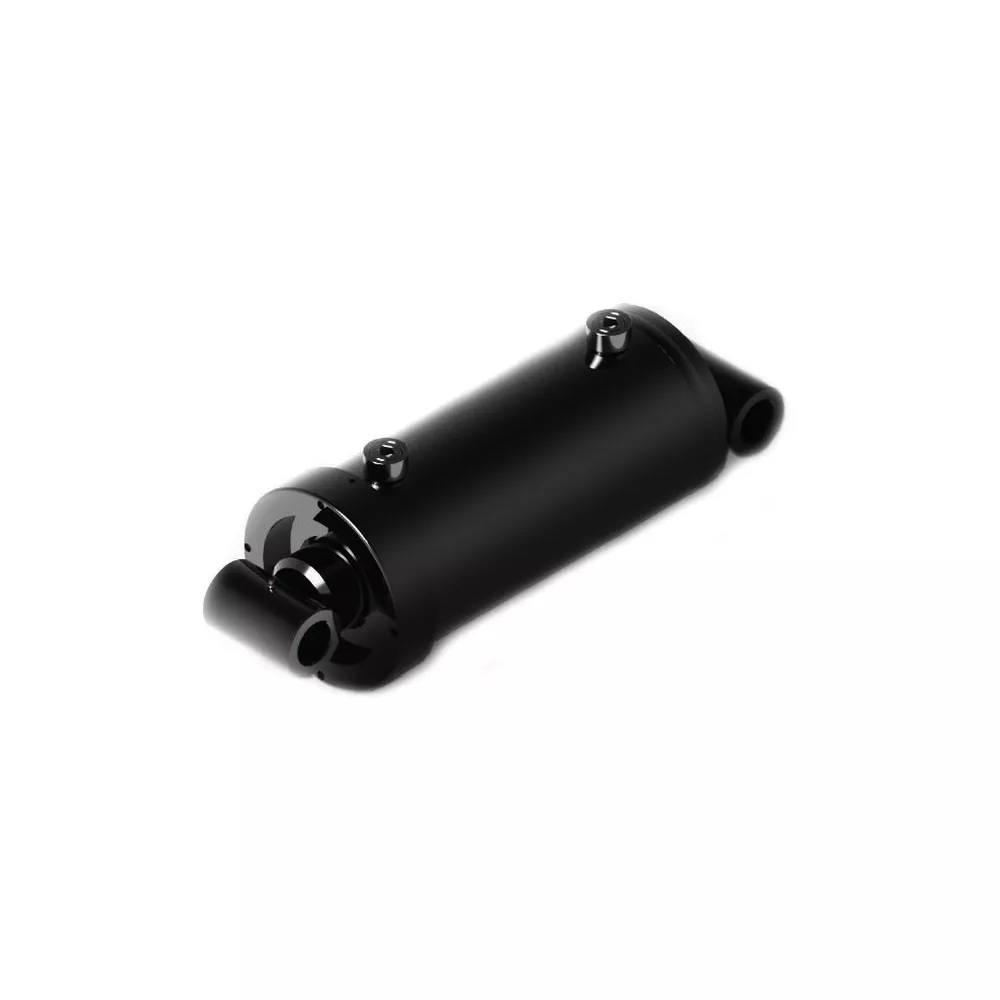

The Chief 5 in. Bore x 16 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Measures 27 in. retracted and 43 in. extended
Column load: 58,900 lb.
Pin diameter of 1.5 in. and rod diameter of 1.125 in.
3 year warranty included on hydraulic cylinder

Chief WT Welded Cylinder 5 in Bore x 16 in Stroke 2.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	5 in.
Brand Compatibility	Universal
Extended Length	16 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	58,900 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/2 in.
Primary Material	Steel
Rod Diameter	2-1/2 in.
Single/Double Acting	Double acting
Stroke Distance	16 in.
Warranty	3 Year
Manufacturer PartNumber	216122
