Chief WT Welded Cylinder 6 in Bore x 24 in Stroke 3 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

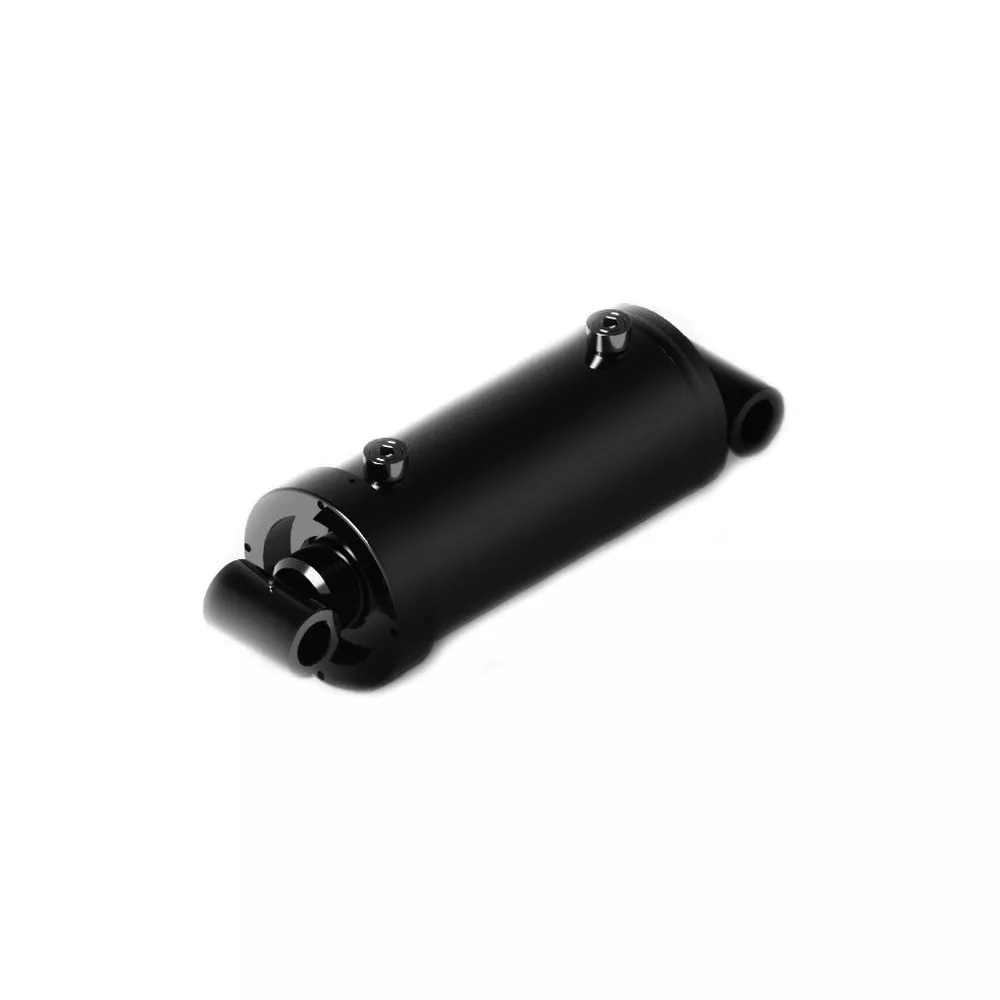

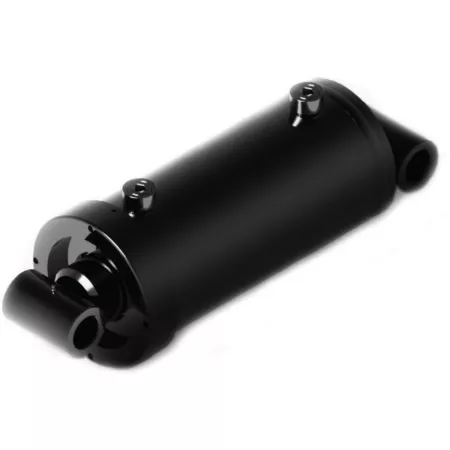

The Chief 6 in. Bore x 24 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the welded hydraulic cylinder
Comes with an externally mounted retainer ring
SAE O-ring ports for efficiency
Black paint finish
Suitable for a variety of applications
Made in the USA
Column load: 84,820 lb.
Pin diameter 1.5 in. and rod diameter of 3 in.
3 year limited warranty
Measures 35 in. retracted and 59 in. extended

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Cylinder 6 in Bore x 24 in Stroke 3 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	6 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	59 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	84,820 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1-1/2 in.
Primary Material	Steel
Product Height	6.75 in.
Product Weight	153 lb.
Product Width	4 in.
Retracted Length	35 in.
Rod Diameter	3 in.
Single/Double Acting	Double acting
Stroke Distance	24 in.
Warranty	3 Year Limited
Manufacturer PartNumber	216144
