Chief WT Welded Hydraulic Cylinder 2 in Bore x 8 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

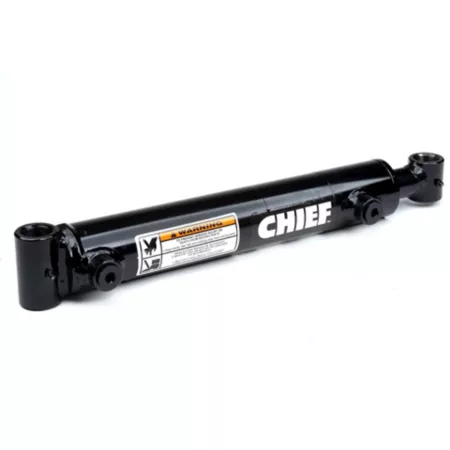

The Chief 2 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

Welded hydraulic cylinder is intended to be used in double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals on the hydraulic cylinder are selected and designed for maximum life
Measures 15 in. retracted and 23 in. extended
Column load: 9,420 lb.
Pin diameter of 0.75 in. and rod diameter of 1.25 in.

Chief WT Welded Hydraulic Cylinder 2 in Bore x 8 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	0 N/A
Extended Length	23 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,721 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0.75 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	0 N/A
Product Length	0 N/A
Product Weight	12.13 lb.
Product Width	0 N/A
Retracted Length	15 in.
Rod Diameter	1.25 in.
Single/Double Acting	Double acting
Stroke Distance	8 in.
Warranty	3 Year
Manufacturer PartNumber	212702

Chief 2 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility 0 N/A Extended Length 23 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 14,721 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 0.75 in. Port Size SAE 8 Primary Material Steel Product Height 0 N/A Product Length 0 N/A Product Weight 12.13 lbs. Product Width 0 N/A Retracted Length 15 in. Shank diameter 1.25 in. Single/Double Acting Double Acting Stroke Distance 8 in. 3 year warranty Manufacturer part number 212702
