Chief WT Welded Hydraulic Cylinder 5 in Bore x 14 in Stroke 2.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

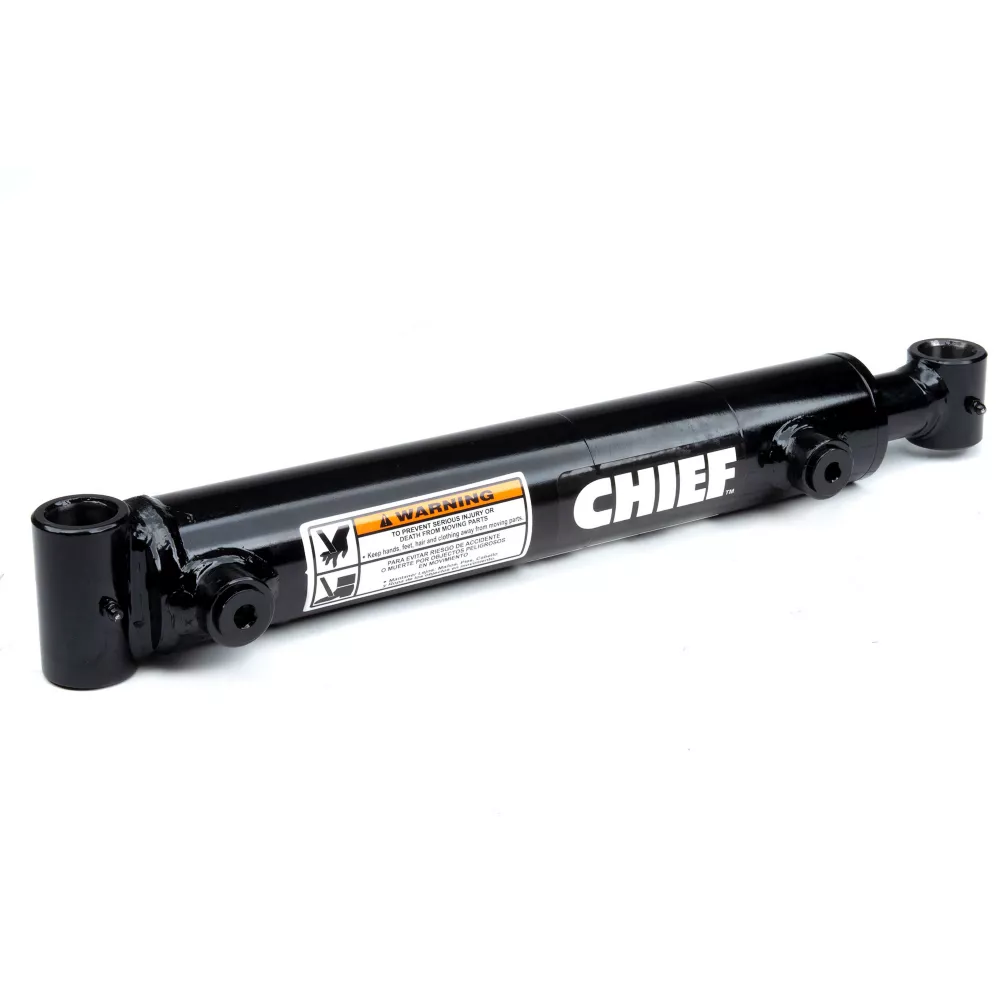

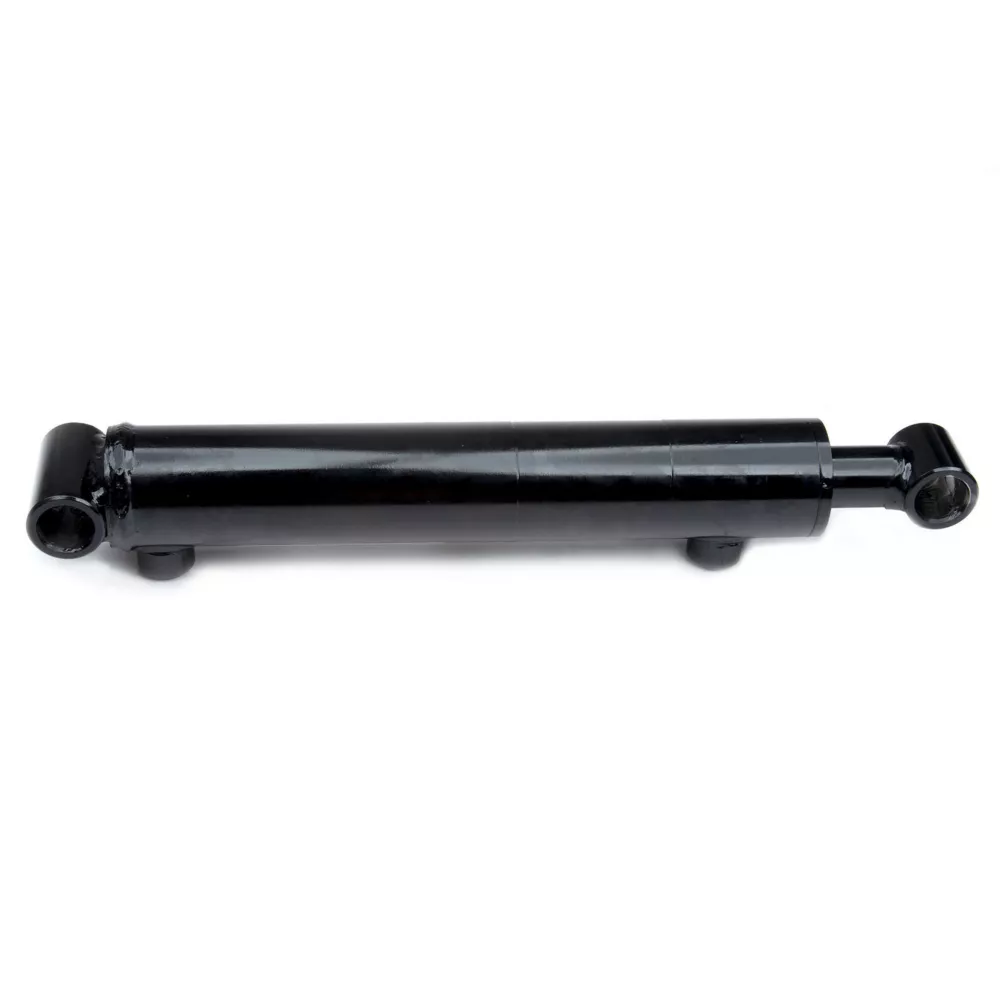

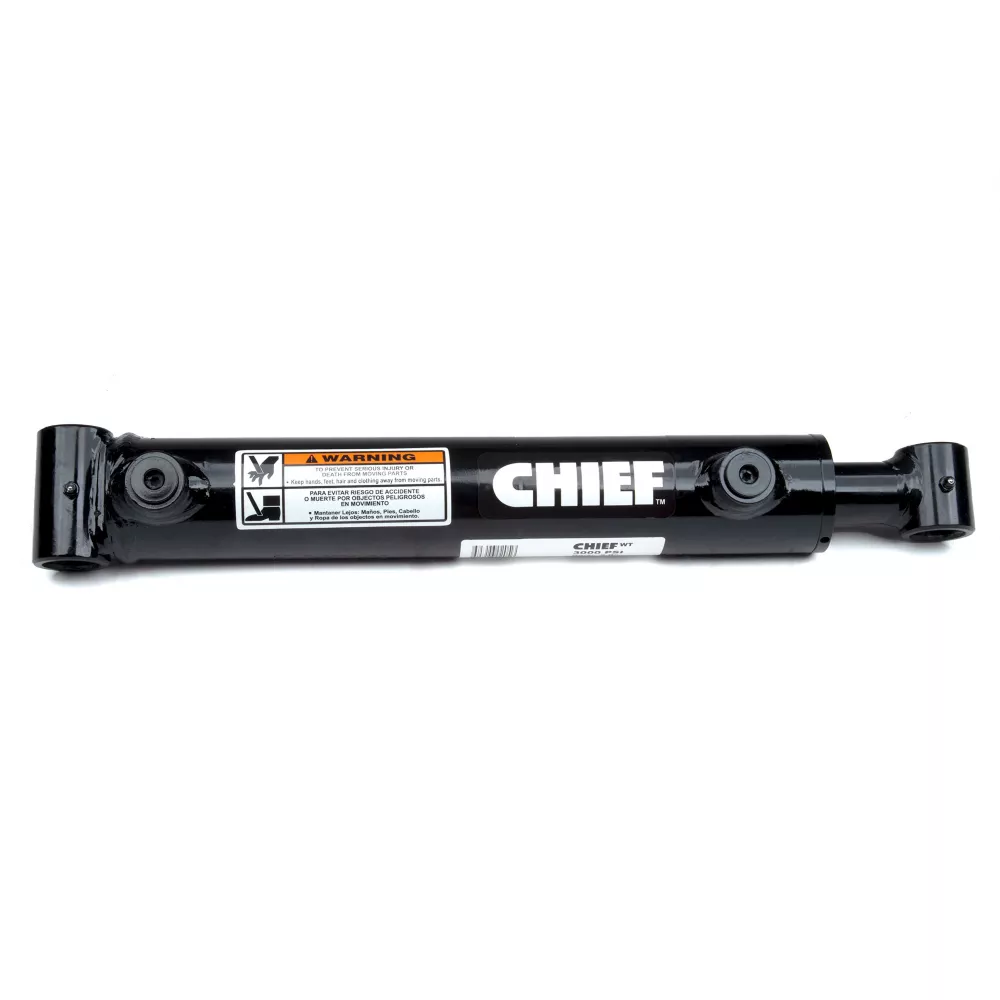

The Chief 5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and means the cylinder is ideally suited for construction and agricultural applications. It will perform well as in farming applications, as well as in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)

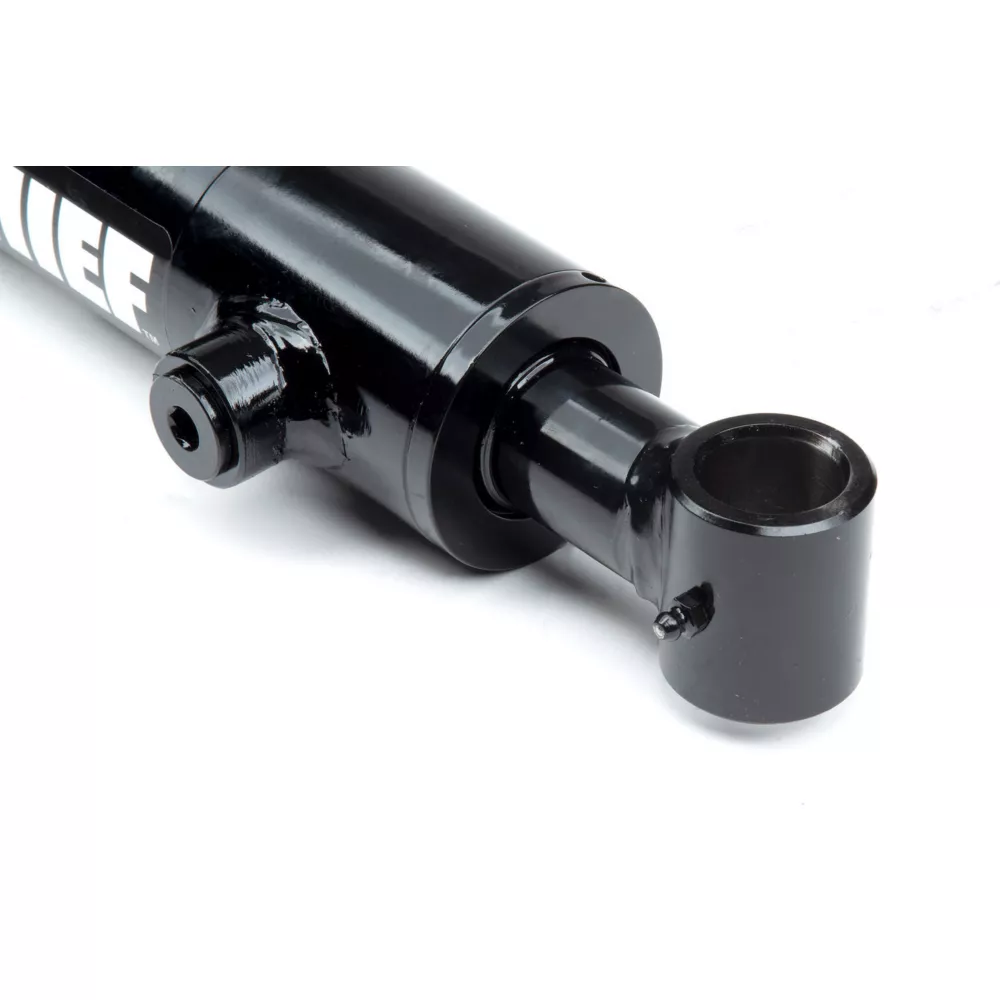

Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel, minimum 75,000 PSI yield
Butt plate: steel

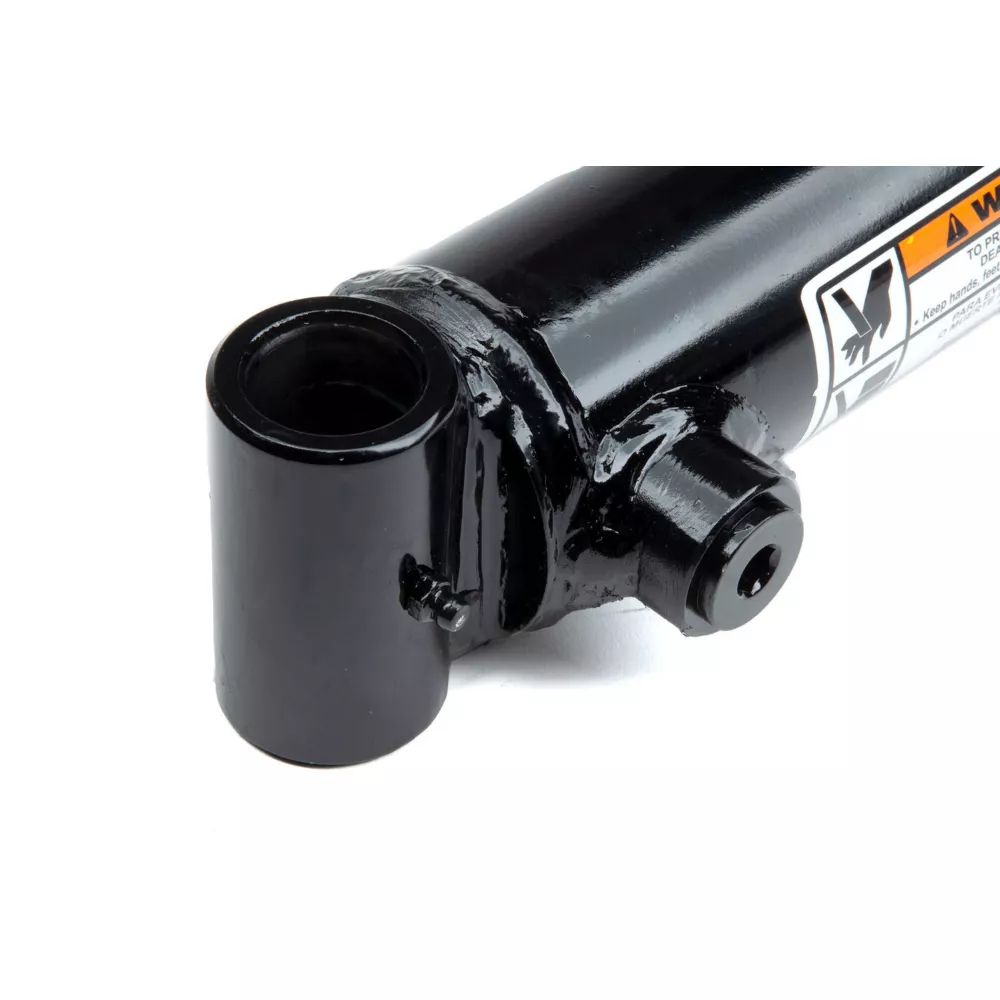

End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the welded hydraulic cylinder
Has an externally mounted retainer ring
SAE O-ring ports for efficiency
Black paint finish
Suitable for a variety of applications
Made in the USA
Measures 25 in. retracted and 39 in. extended
Column load: 58,900 lb.
Pin diameter of 1.5 in. and rod diameter of 3 in.
3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WT Welded Hydraulic Cylinder 5 in Bore x 14 in Stroke 2.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	39 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	28,994 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1-1/2 in.
Port Size	3.4 NPTF
Primary Material	Steel
Product Height	5.75 in.
Product Length	N/A
Product Weight	88 lb.
Product Width	4 in.
Retracted Length	25 in.
Rod Diameter	2-1/2 in.
Stroke Distance	14 in.
Warranty	3 Year Limited
Manufacturer PartNumber	216137

Chief 5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder, 2.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 5 in. Brand Compatibility Universal Compatibility Tractors Extended Length 39 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 28,994 lbs. Model Compatibility Most Applications Package Quantity 1 pin diameter 1-1/2 in. Port Size 3.4 NPTF Main Material Steel Product Height 5.75 in. Product Length N/A Product Weight 88 lbs. Product width 4 in. Retracted length 25 in. Shank Diameter 2-1/2 in. Stroke Distance 14 in. 3-year limited warranty Manufacturer part number 216137.
