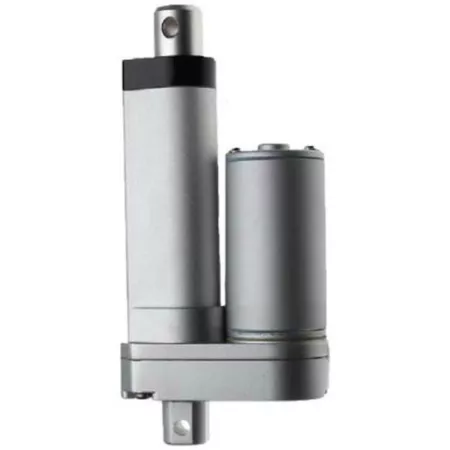

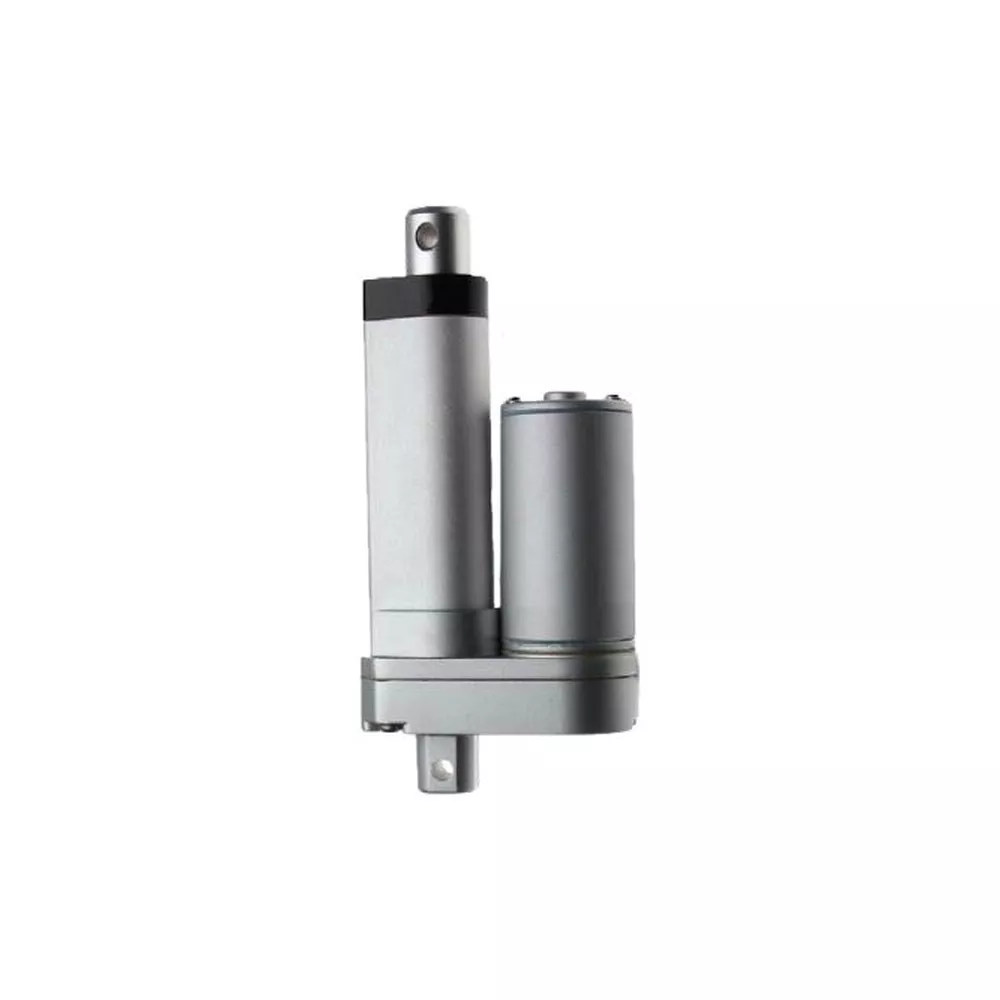

12V DC Concentric Linear Actuator 9.84" Stroke 15.71" Retracted 25.55" Extended Linear Actuators Tractor Repair & Parts
The Concentric 12V DC Linear Actuator is a gear driven drive motor that extend a shaft used primarily to open and close devices in tight or hard-to-reach areas. Their compact design as well as numerous control and mounting options make these water-resistant linear actuators ideally suited for industrial, agricultural, automotive off highway and other applications. The linear actuator's overload clutch stops the shaft when it reaches full extension.- 12VDC linear actuator has a load capacity of 110 lb. and 550 lb. static capacity
- IP graded 63 total dust protection and water-resistance
- Maximum linear actuator load speed of .50 in./sec.
- Overload clutch stops the shaft when it reaches full extension
- 9.843 in. stroke; 15.709 in. retract; 25.552 in. extend; weighs 3 lb.
- Optional controller offers flexibility of up to 3 programmable pre-sets
- Potentiometer-equipped linear actuator for convenience
- Compact design and numerous control and mounting options are suitable for tight or hard-to-reach areas
- Linear actuator is suited for industrial, agricultural, automotive off highway and other applications
12V DC Concentric Linear Actuator 9.84" Stroke 15.71" Retracted 25.55" Extended Linear Actuators Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Linear Actuators
| Specification | Description |
|---|---|
| Brand | Concentric |
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Compatibility | Industrial, agricultural, automotive off highway and other applications |
| Features | Water-Resistant |
| Input Voltage | 12V |
| Maximum Speed | 0.50 in./sec. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Power Source | 12-Volt |
| Product Weight | 3 lb. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 139274 |
