Chief WX Welded Hydraulic Cylinder 2.5 in Bore x 48 in Stroke Hydraulic Cylinders Tractor Repair & Parts

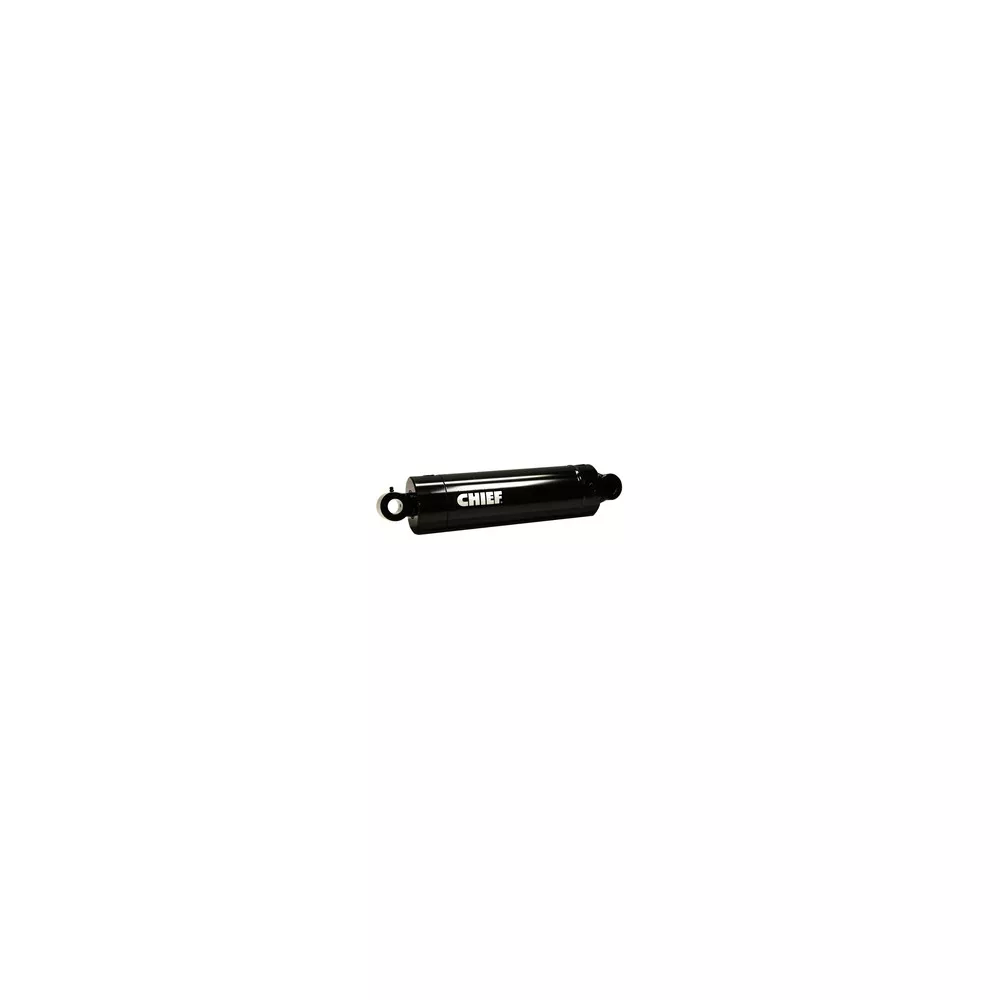

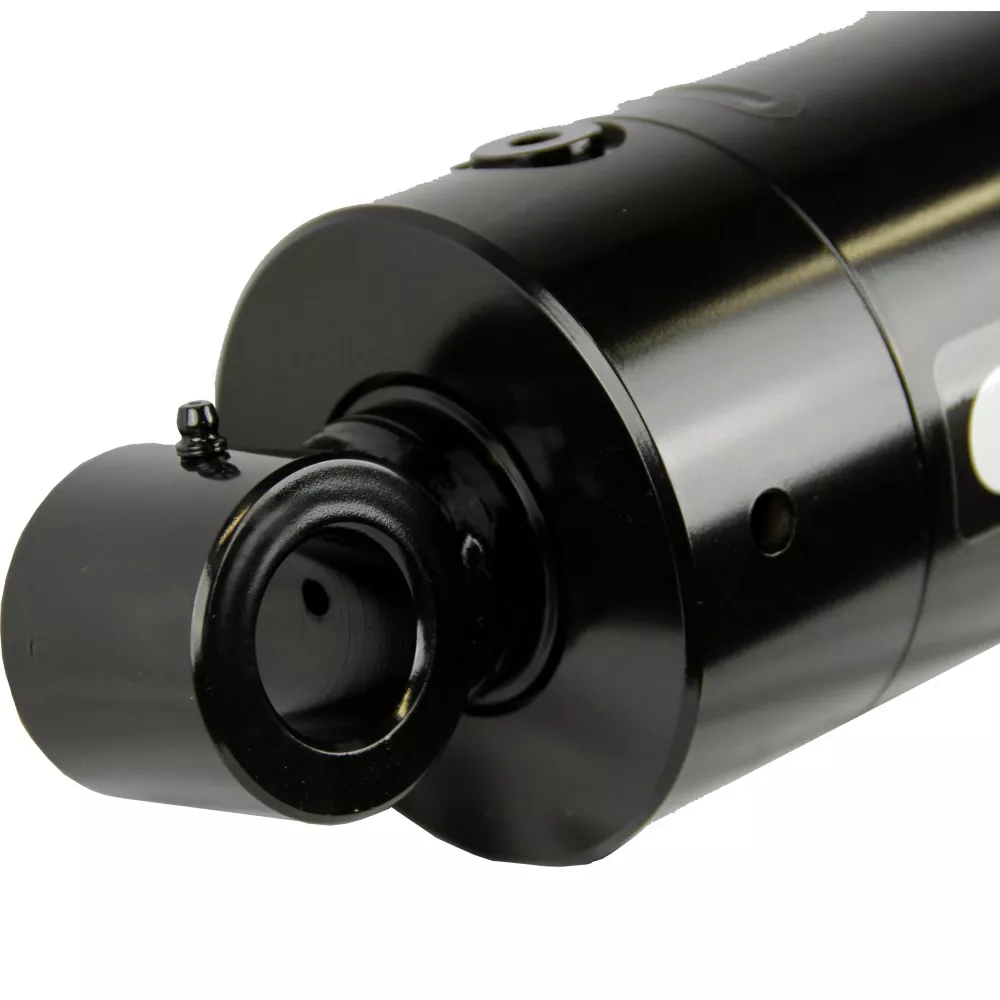

The Chief 2.5 in. Bore x 48 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The hydraulic cylinder's adjustable 360 rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.

Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder has a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring for longer life
Adjustable 360-degree rotating gland allows you to make port alignments as needed
Rod is a nitrided steel bar with corrosion and scratch resistance for durability
Double acting hydraulic cylinder design for efficiency
Satin black paint finish gives a simple, stylish look
Individually poly bagged farm hydraulic cylinder is made for hard work
Made in the USA
3-year limited warranty
Has a retracted length of 14 in. and an extended length of 20 in.
Port size: SAE 8
Column load: 14720 lb.
Weight: 17 lb.
Pin diameter: .75 in.
Rod diameter: 1.375 in.

Note: This product may require up to 2 additional days for order processing prior to shipping

Chief WX Welded Hydraulic Cylinder 2.5 in Bore x 48 in Stroke Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	106 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	3,540 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0-3/4 in.
Primary Material	Iron
Product Height	3 in.
Product Length	3 in.
Product Weight	57 lb.
Product Width	5-1/2 in.
Retracted Length	58 in.
Rod Diameter	1-3/8 in.
Single/Double Acting	Double acting
Stroke Distance	48 in.
Warranty	3 Year Limited
Manufacturer PartNumber	207426

Chief 2.5 in. Bore x 48 in. Stroke WX Welded Hydraulic Cylinder Specifications expand/collapse Specification Description Brand Primary Country of Origin Made in USA Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Tractors Extended Length 106 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 3,540 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 0-3/4 in. Main material iron Product height 3 in. Product length 3 in. Product weight 57 lbs. Product width 5-1/2 in. Retracted length 58 in. Shank diameter 1-3/8 in. Single/double acting Double acting Stroke distance 48 in. 3-year limited warranty Manufacturer part number 207426
